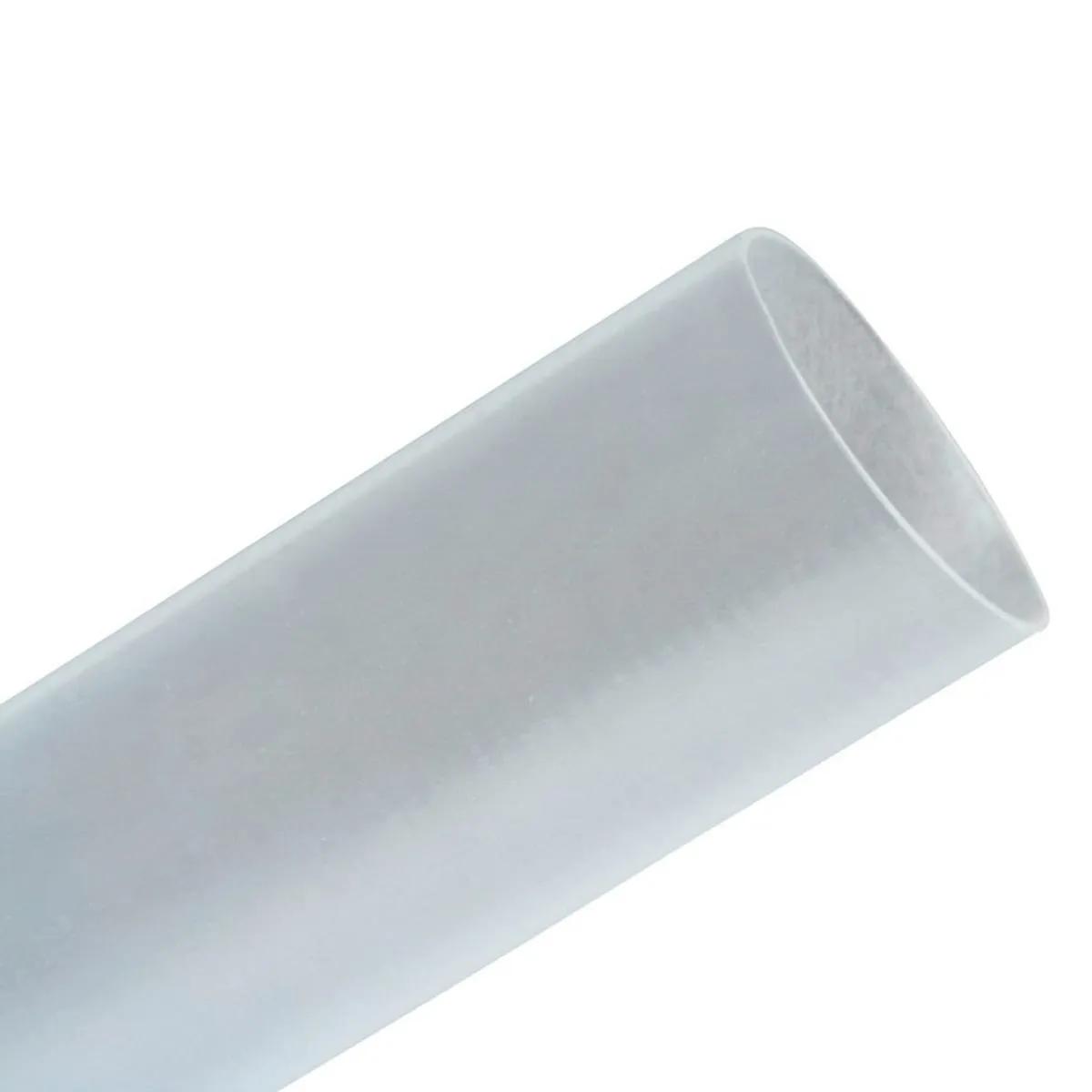

3M FP-301 2:1 Ratio Flame-Retardant Heat Shrink Tubing, 1/2", 200' Per Spool, Clear, MFR ID FP3011/2CLR1
- MFR #7100024932
- EIS #FP3011/2CLR1
- UPC #54007085300
$97.96 / 100Foot
Pack: 600 ft/Box
In Stock | Ready to Ship
Min QTY1QTY Increment1
more info
Pack600 ft/Box
Products You May Also Like
Rated for 135 °C continuous operation, all FP-301 tubing is split resistant, mechanically tough, easily marked and resists cold flow.
3M™ Heat Shrink Tubing FP-301 offers an outstanding balance of electrical, physical and chemical properties for a wide variety of industrial and military applications.
Features
- Designed to withstand elevated temperatures to 300 °C (572 °F) for short periods
- When freely recovered, the tubing will shrink to 50% of its as-supplied internal diameter
- The recovered wall thickness is proportional to the degree of recovery
- Non-corrosive chemical effect
- Non-nutrient fungus resistance
- 1000 psi tensile strength and 400 V/Mil dielectric strength chemical solvent resistance
- No dripping, flowing or cracking, passes mandrel wrap test (4 hr at 250 °C) of heat shock
- Self-extinguishing
- Length: 200 ft Per Spool
- Volume Resistivity: 10^15 Ohm-cm
- Wall Thickness: 0.025 Inch (Recovered)
- Low Temperature Flexibility: -55 °C
- Temperature rating: -55 to 135 °C
Applications
- Used as a Shrink-Fit Electrical Insulation Over Cable Splices and Terminations, also Used for Lightweight Wire Harness Covering, Wire Marking, Wire Bundling, Component Packaging and Fire-Resistant Covering
General Information
| Item Name | Heat Shrink Tubing |
| Trade Name | 3M |
General Features
| Shelf Life | 120 Months |
Design & Construction
| Color | Clear |
| Insulation Material | Flexible Polyolefin |
| Minimum Shrink Temperature | 100 °C |
| Wall Type | Single-Thin |
Performance Details
| Heat Aging | 336 hr |
| Heat Shock | 4 hr |
| Low Temperature Flexibility | -55 °C |
| Shrink Ratio | 2:1 |
| Tensile Strength | 2400 psi |
Chemical Properties
| Specific Gravity | 0.93 |
Electrical Properties
| Dielectric Strength | 900 V/mil |
| Voltage Rating | 600 V |
Physical Properties
| Elongation | 400% |
| Expandable Diameter | 0.5 Inch |
| Length | 200 ft |
| Recovered Diameter | 0.25 Inch |
| Wall Thickness | 0.025 Inch |
| Water Absorption | 0.2% |
Environmental Condition
| Temperature Rating | -55 to 135 °C |
