MFR #:7000133616
EIS #:EPS300.5
UPC #:00051128597323
MFR #:7000133616
EIS #:EPS300.5
UPC #:00051128597323
In Stock
Min Qty:1
|Qty Increment:1
more info

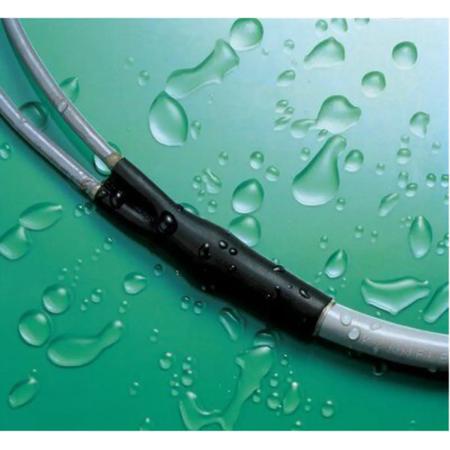

3M™ Heat Shrink Tubing EPS-300 is color coded for quick and easy identification of the wire. It provides a skintight fit and strain relief protection for electronic components, wire splices, wire bundles and harness breakouts. This flame retardant tubing has a heat shrinkable outer wall that is irradiation cross linked for abrasion resistance and helps to maintain the high flow as well as good adhesion characteristics. When the tubing cools down, it forms a permanent, water resistant barrier. It withstands a wide temperature range of 67 to 230 degrees F ( 55 to 110 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.
$267.95 / 100 Foot
Min Qty:1
|Qty Increment:1
more info
3M™ Heat Shrink Tubing EPS-300 is color coded for quick and easy identification of the wire. It provides a skintight fit and strain relief protection for electronic components, wire splices, wire bundles and harness breakouts. This flame retardant tubing has a heat shrinkable outer wall that is irradiation cross linked for abrasion resistance and helps to maintain the high flow as well as good adhesion characteristics. When the tubing cools down, it forms a permanent, water resistant barrier. It withstands a wide temperature range of 67 to 230 degrees F ( 55 to 110 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.
- Attributes
- Features
- Applications
Attributes
General Information
Item NameHeat Shrink Tubing
Trade Name3M
General Features
Shelf Life120 Months
Design & Construction
ColorBlack
Insulation MaterialFlexible Polyolefin
Minimum Shrink Temperature121 °C
Wall TypeDual-Thin
Performance Details
Tensile Strength2100 psi
Flame RetardantYes
Heat Aging168 hr
Shrink Ratio3:1
Heat Shock4 hr
Low Temperature Flexibility-55 °C
Chemical Properties
Specific Gravity1.3
Electrical Properties
Dielectric Strength700 V/mil
Voltage Rating600 V
Physical Properties
Length4 ft
Wall Thickness0.07 Inch
Elongation450%
Expandable Diameter0.5 Inch
Water Absorption0.3%
Recovered Diameter0.16 Inch
Environmental Condition
Temperature Rating-55 to 110 °C
Reflow Temperature80 °C
Features
- When heated in excess of 121 °C (250 °F), EPS-300 tubing rapidly shrinks to a skintight fit, forcing the melted adhesive to flow and cover the substrate
- The adhesive forms a flexible bond with a wide variety of rubbers, plastics and metals
- Upon cooling, the adhesive solidifies forming a durable, non-drying, flexible and water resistant barrier
- When freely recovered, the tubing will shrink to 33% of its original diameter
- The recovered wall thickness of the tubing is proportional to the degree of recovery
- Non-corrosive chemical effect
- Non-nutrient fungus resistance
- Excellent fluid resistance
- Self-extinguishing
- No dripping, flowing or cracking (4 hr at 225 °C) of heat shock
- Volume Resistivity: 10^14 Ohm-cm
- Reflow Temperature: >80 °C
- Low Temperature Flexibility: -55 °C
- Temperature rating: -55 to 110 °C
- Wall Thickness: 0.07 Inch (Total Recovered), 0.03 Inch (Meltable Recovered)
Applications
- Offers Excellent Environmental Protection for Electronic Components, Wire Splices, Wire Bundles and Harness Breakouts, Automotive, Truck and Marine Wire Splices and Harness Breakouts are also Quickly and Easily Protected from a Variety of Harsh Environments
- Automotive, Truck and Marine Wiring Splices and Harness Breakouts are Quickly and Easily Protected from Harsh Environments
