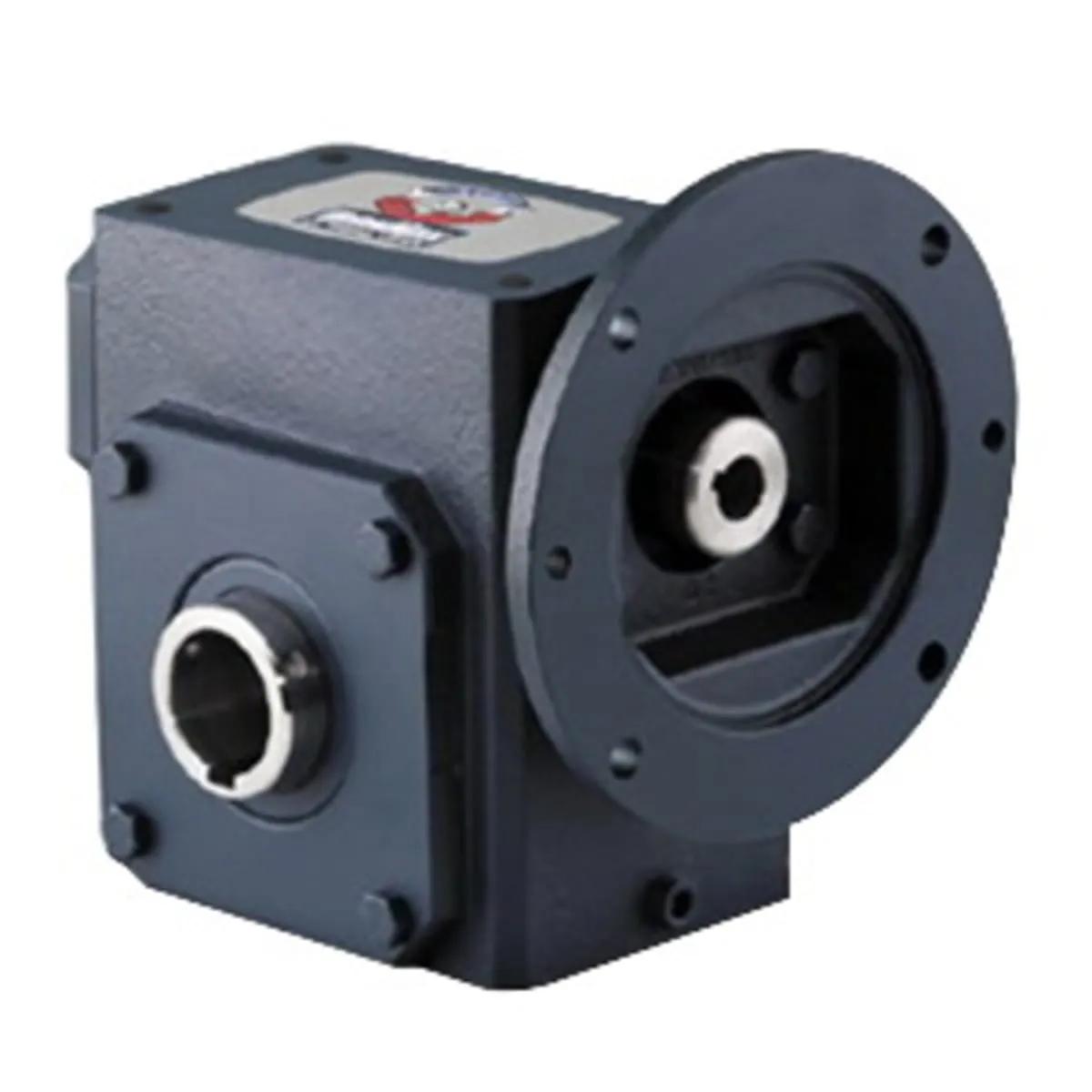

Leeson 821 Style HMQ Flexaline Interchange Grove Gear Reducer, 40:1 Gear Ratio, 0.916 HP, 1750 rpm Input, 0.674 HP, 43.75 rpm Output, 56C Frame, MFR ID GRG-HMQ821-40-H-56-23
- MFR #GRG8210544.23
- EIS #MOTGRG8210544.23
$1,395.37 / Piece
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
| Stock Status | |||||
|---|---|---|---|---|---|
 | Style TMQ, Flexaline Interchange, Left-hand Shaft | 56 | 30:1 | $ / Piece | |
 | Style HMQ, Flexaline Interchange, Hollow Shaft | 56 | 20:1 | $ / Piece | |
 | Style HMQ, Flexaline Interchange, Hollow Shaft | 56 | 40:1 | $ / Piece | |
 | Style BMQ, Flexaline Interchange, Washdown, Left-hand Shaft | 56 | 20:1 | $ / Piece | |
 | Style BM, Flexaline Interchange, Right-hand Shaft | 140 | 30:1 | $ / Piece | |
 | Style BM, Flexaline Interchange, Left-hand Shaft | 140 | 30:1 | $ / Piece |
One-piece cast iron housings with single output cover design, CNC machined for precise component fit and alignment. Viton® double-lip seals and super micro finished seal surfaces on input and output shafts. Extra large lubricant reservoir filled with premium, high-temperature synthetic lubricant.
Available through 10 Inch center distance, the 800 series Grove Gear IRONMAN reducer line is a true heavy duty workhorse that handles the environmental assaults, shock loading, frequent reversing and continuous duty cycles typical in many industrial applications. Designed to be the premium worm reducer in the industry, IRONMAN reducers feature top quality features.
Applications
- Wide Variety Of Applications Requiring Slow Speed And High Torque, Ideal For Conveyors, Material Handling, Textile Machines, Packaging Machinery, Etc
Features
- Factory filled with premium synthetic pag lube as standard
- O-rings on input and output covers
- Viton seals throughout
- Bronze alloy worm gear
- Mounting dimensions are interchangeable with Baldor 900 series, Boston Gear, Browning Raider, Falk, Morse Invader and other "industry standard" reducers
- Seal guard
- NEMA C
- Hollow shaft output shaft orientation
- Motorized, C-faced quill input style
General Information
| Item Name | Grove Gear Reducer |
| Trade Name | Leeson |
| Series | GRG |
General Features
| Type | Style HMQ, Flexaline Interchange, Hollow Shaft |
Design & Construction
| Bearing Type | Tapered Roller |
| Gear Material | Bronze |
| Gear Type | Worm |
| Material | Cast Iron |
| Mounting Type | C-Flange |
| Seal Type | Dual Lip |
| Shaft Position | Vertical |
Performance Details
| Input Speed | 1750 |
| Over-Hung Load | 1315 lb |
Electrical Properties
| Output HP | 0.674 HP |
Physical Properties
| Dimensions | 2.06 Inch Center Distance, 1 - 1.5 Inch Bore |
| Frame Size | 56 |
Documents
No Documents Found
