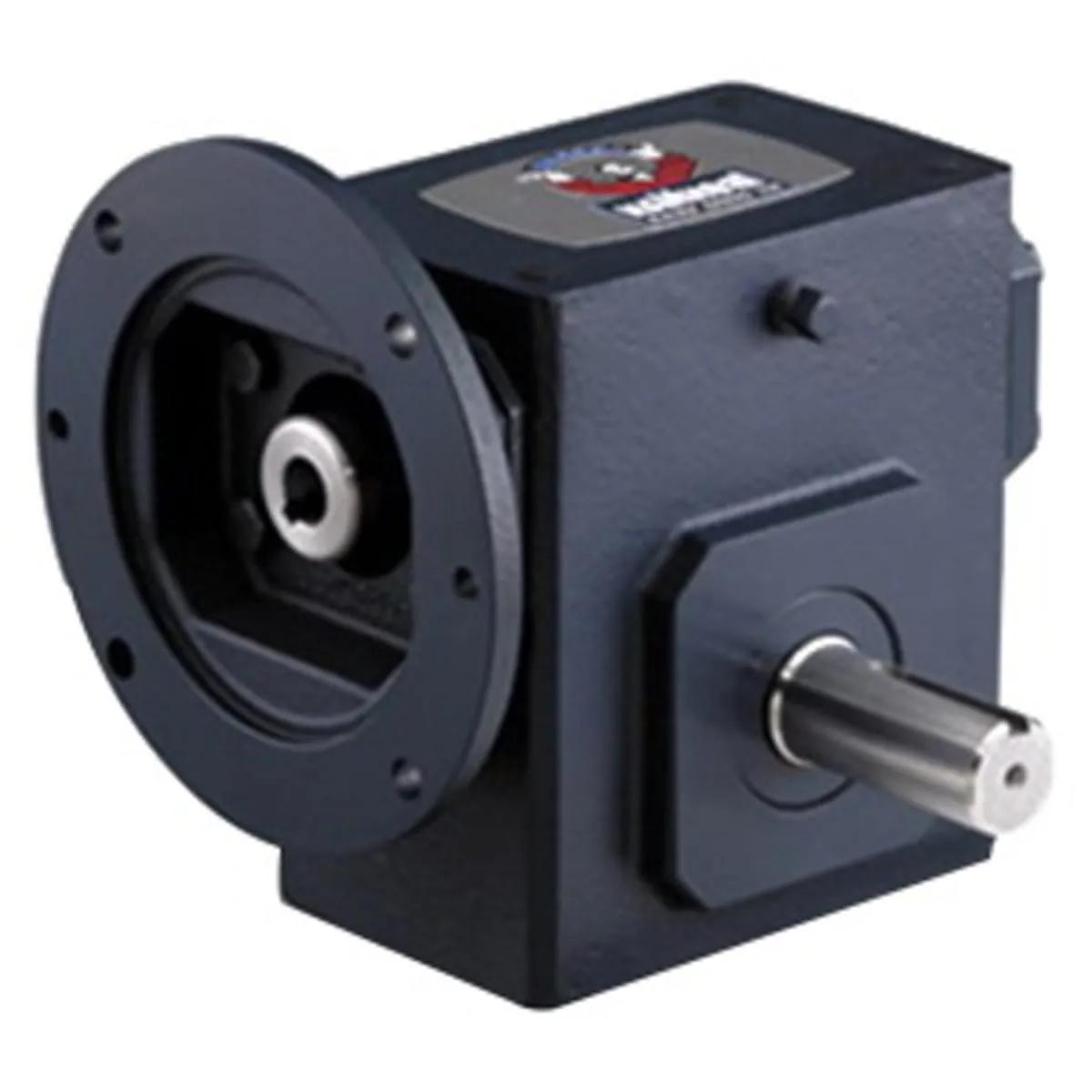

Leeson 830 Style BMQ Grove Gear Reducer, 30:1 Gear Ratio, 2.879 HP, 1750 rpm Input, 2.332 HP, 58.3 rpm Output, 140TC Frame, MFR ID GR-BMQ830-30-R-140
- MFR #GR8300235.00
- EIS #MOTGR8300235
$1,929.51 / Piece
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Products You May Also Like
| Stock Status | |||||
|---|---|---|---|---|---|
 | Style BMQ, Double Shaft | 1.939 HP | 5:1 | $ / Piece | |
| Style BMQ, Right-hand Shaft | 1.224 HP | 15:1 | $ / Piece | |
| Style BMQ, Right-hand Shaft | 1.046 HP | 20:1 | $ / Piece | |
 | Style BMQ, Washdown, Left-hand Shaft | 1.625 HP | 10:1 | $ / Piece | |
| Style BMQ, Washdown, Left-hand Shaft | 1.046 HP | 20:1 | $ / Piece | |
 | Style BMQ, Washdown, Double Shaft | 1.224 HP | 15:1 | $ / Piece |
Ultimate application flexibility with all-angle mounting provisions, the widest selection of accessory bases and flanges and the largest selection of stock reducer styles includes style BMQ. Oversized high-speed bearings, positively retained for frequent reversing and start/stop cycles. Viton® double-lip seals and super micro finished seal surfaces on input and output shafts.
Available through 10 Inch center distance, the 800 Series GR-BMQ Grove Gear IRONMAN reducer line is a true heavy duty workhorse that handles the environmental assaults, shock loading, frequent reversing and continuous duty cycles typical in many industrial applications. Designed to be the premium worm reducer in the industry, IRONMAN reducers feature top quality features.
Applications
- Wide Variety Of Applications Requiring Slow Speed And High Torque, Ideal For Conveyors, Material Handling, Textile Machines, Packaging Machinery, Etc
Features
- Factory filled with premium synthetic pag lube as standard
- O-rings on input and output covers
- Viton seals throughout
- Bronze alloy worm gear
- Mounting dimensions are interchangeable with Baldor 900 series, Boston Gear, Browning Raider, Falk, Morse Invader and other "industry standard" reducers
- Seal guard
- Premium grade 5 assembly bolts throughout
- NEMA C
- Right-hand output shaft orientation
- Motorized, C-faced quill input style
General Information
| Item Name | Grove Gear Reducer |
| Trade Name | Leeson |
| Series | GR-BMQ |
General Features
| Type | Style BMQ, Right-hand Shaft |
Design & Construction
| Bearing Type | Tapered Roller |
| Gear Material | Bronze |
| Gear Type | Worm |
| Material | Cast Iron |
| Mounting Type | Surface |
| Seal Type | Dual Lip |
| Shaft Position | Horizontal |
Performance Details
| Input Speed | 1750 |
| Over-Hung Load | 2170 lb |
Electrical Properties
| Output HP | 2.332 HP |
Physical Properties
| Dimensions | 3 Inch Center Distance |
| Frame Size | 140 |
