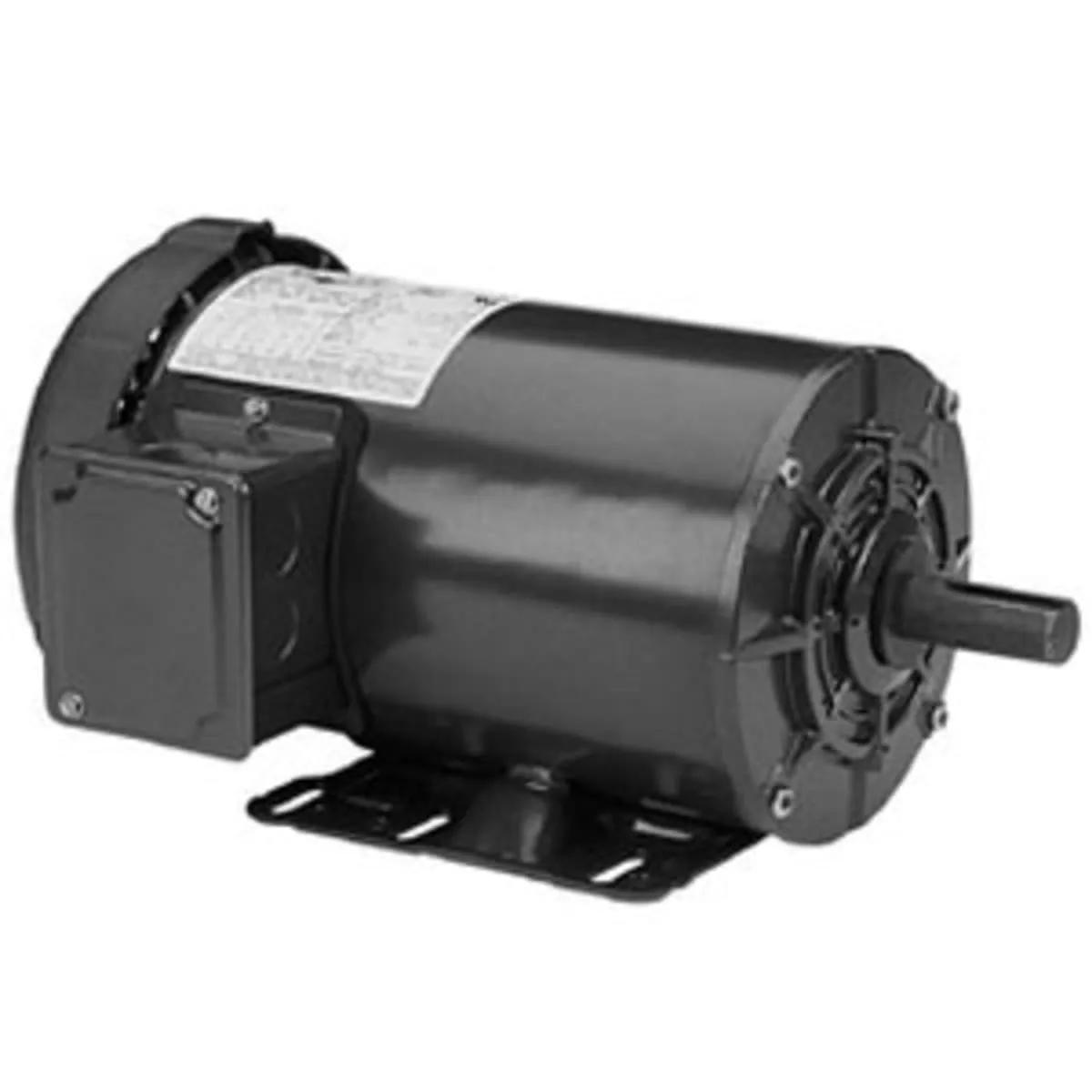

The image shown is representative of the product family and may not specifically be the individual item.
0

Leeson LM33122 General Purpose Motor, 1.5 HP, 3600 rpm, 230V, 143T Frame, TEFC, Rigid Base Mount

  • MFR #LE-230-RB-TEFC-SF-PE
  • EIS #MOTLM33122
$1,204.49 / Piece
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
PROP_65_CANCER
WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Products You May Also Like

Leeson General Purpose Motor, Construction: Steel Frame, Enclosure Type: Totally Enclosed Fan-Cooled, Mounting Type: Rigid Base, Voltage Rating: 230V. Standard, EPACT and premium efficient ratings. Inverter-rated. Shielded ball bearings for direct coupled applications. Dynamically balanced rotors. Torques exceed NEMA performance standards. Continuous duty

General Information

Item NameGeneral Purpose Motor
Trade NameLeeson

SeriesLE-230-RB-TEFC-SF-PE

General Features

TypePremium Efficient
StandardsUL Listed, CSA Approved, CE Certified

Design & Construction

Bearing TypeBall
ConstructionSteel Frame
DutyContinuous
Enclosure TypeTotally Enclosed Fan-Cooled
Frame Type143T
Insulation TypeClass F
KVA CodeM
Mounting TypeRigid Base
RotationReversible

Performance Details

Speed Rating3600 rpm
Full Load Efficiency84%
Overload ProtectorNo

Electrical Properties

Frequency Rating60 Hz
Full Load Ampere4 A
Full Load Power Factor83.5%
HP Rating1.5 HP
Phase3-Phase
Service Factor1.25
Voltage Rating230 V

Physical Properties

Frame Size143
Shaft Diameter0.875 Inch
Shaft Length2.28 Inch
Weight32 lb

Environmental Condition

Temperature Rating40 °C
