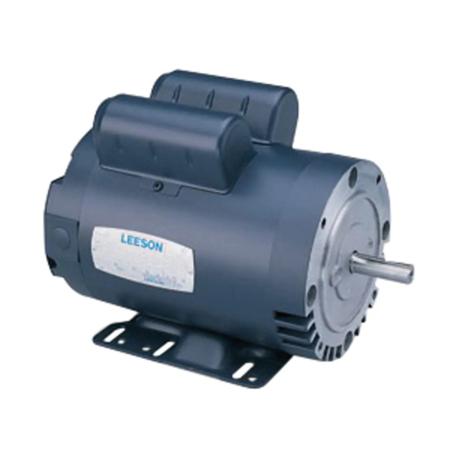

Leeson 230V C-Face with Rigid Base Open Dripproof (ODP) Steel Frame General Purpose Motor
MFR #:LE-230-CFRB-ODP-SF-GPM
EIS #:PH23-LE-230-CFRB-ODP-SF-GPM
MFR #:LE-230-CFRB-ODP-SF-GPM
EIS #:PH23-LE-230-CFRB-ODP-SF-GPM
Leeson open dripproof continuous duty general purpose motor. - Leeson Premium Efficient General Purpose Motor, Duty: Continuous, Enclosure Type: Open Dripproof, Frequency Rating: 60 Hz, Mounting Type: C-Face with Rigid Base, Temperature Rating: 40 °C, Voltage Rating: 230V.
$1,059.45
- $1,453.05
Select from the options below
Leeson open dripproof continuous duty general purpose motor. - Leeson Premium Efficient General Purpose Motor, Duty: Continuous, Enclosure Type: Open Dripproof, Frequency Rating: 60 Hz, Mounting Type: C-Face with Rigid Base, Temperature Rating: 40 °C, Voltage Rating: 230V.
Product Options
Showing 1 out of 1 options
 | HP Rating: 3 HP | Frame Size: 184 | EIS Part #: MOT131629 | $ / each |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameGeneral Purpose Motor
SeriesLE-230-CFRB-ODP-SF-GPM
General Features
StandardsUL Listed, CSA Approved
Design & Construction
Bearing TypeBall
ConstructionSteel Frame
DutyContinuous
Enclosure TypeOpen Dripproof
Mounting TypeC-Face with Rigid Base
RotationCounter-Clockwise
Performance Details
Speed Rating1800 rpm
Electrical Properties
Frequency Rating60 Hz
Phase1-Phase
Service Factor1.15
Voltage Rating230 V
Physical Properties
Number of Poles4
Environmental Condition
Temperature Rating40 °C
Features
- Durable rolled steel construction
- Double shielded ball bearings
- Meets or exceeds NEMA service factors
- NEMA design B performance
- Thermally protected ratings
- Voltage rating: 230V
- Speed rating: 1800 rpm at 60 Hz
- Service factor: 1.15 at 60 Hz
Applications
- For use on Pumps, Compressors, Blowers, Fans and Other Direct or Belt-driven Applications
