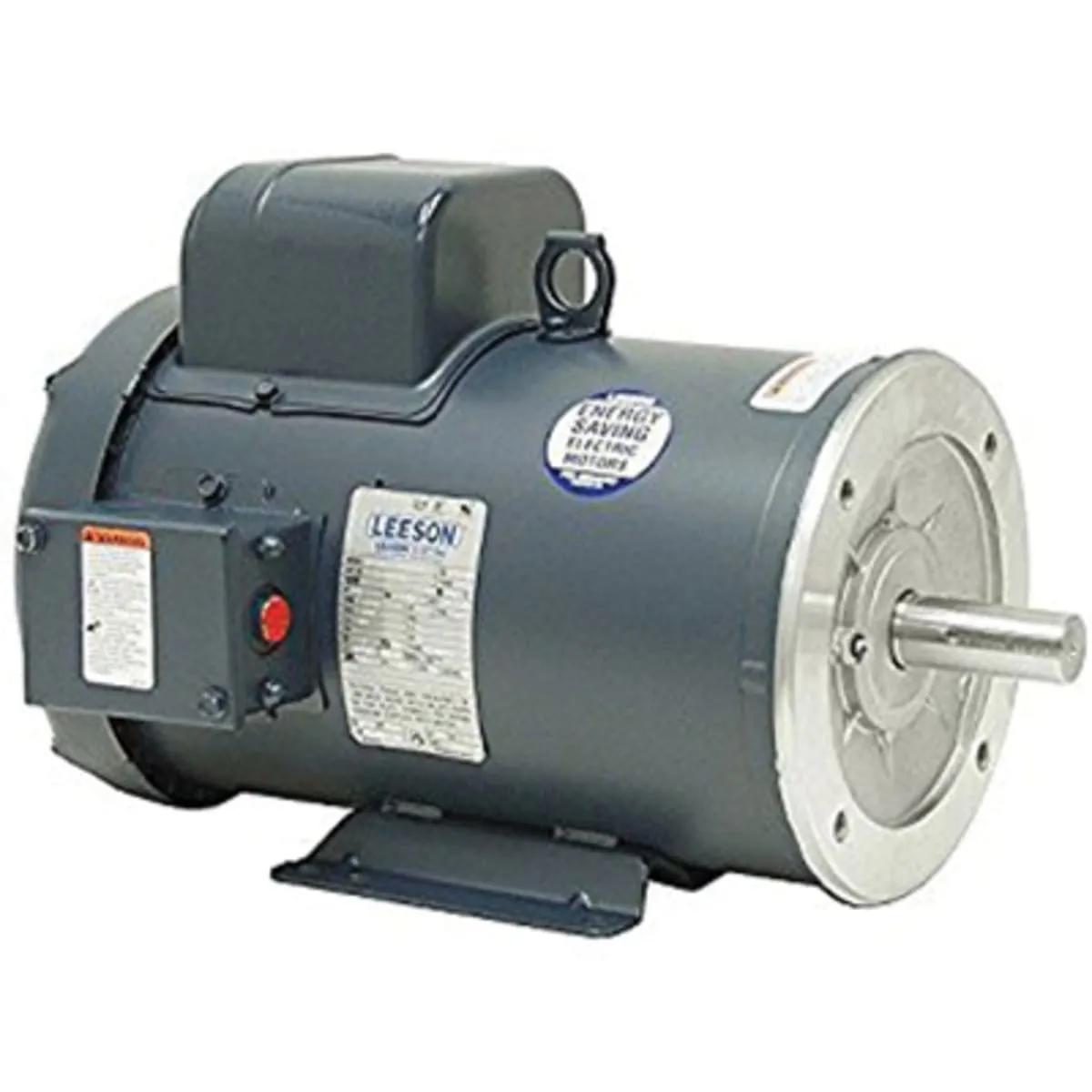

Leeson 230V C-Face with Rigid Base Dripproof (DP) Steel Frame General Purpose Motor, MFR ID LE-230-CFRB-DP-SF-GPM
- MFR #LE-230-CFRB-DP-SF-GPM
- EIS #PH23-LE-230-CFRB-DP-SF-GPM
$954.52 - $1,876.30
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--
| Stock Status | |||||
|---|---|---|---|---|---|
 | 3 HP | 3600 rpm | 182 | $ / Piece |
Leeson steel frame general purpose motor. Durable rolled steel construction. NEMA design B performance. Meets or exceeds NEMA service factors. Double shielded ball bearings. Thermally protected ratings - Leeson General Purpose Motor, Bearing Type: Ball, Construction: Steel Frame, Duty: Continuous, Enclosure Type: Dripproof, Frequency Rating: 60 Hz, Insulation Type: Class F, Mounting Type: C-Face with Rigid Base, Temperature Rating: 40 °C, Voltage Rating: 230V.
Features
- Durable rolled steel construction
- NEMA design B performance
- Meets or exceeds NEMA service factors
- Double shielded ball bearings
- Thermally protected ratings
Applications
- For use where Water and Dust Exposure is Minimal. Ideally Suited For use on Pumps, Compressors, Blowers, Fans and other Standard Industrial Applications
General Information
| Item Name | General Purpose Motor |
| Series | LE-230-CFRB-DP-SF-GPM |
General Features
| Type | KD |
| Standards | UL Listed, CSA Approved |
Design & Construction
| Bearing Type | Ball |
| Construction | Steel Frame |
| Duty | Continuous |
| Enclosure Type | Dripproof |
| Insulation Type | Class F |
| Mounting Type | C-Face with Rigid Base |
| Rotation | Selective Counter-Clockwise |
| Shaft Position | Horizontal |
Electrical Properties
| Frequency Rating | 60 Hz |
| Phase | 1-Phase |
| Service Factor | 1.15 |
| Voltage Rating | 230 V |
Physical Properties
| Shaft Diameter | 1.125 Inch |
Environmental Condition
| Temperature Rating | 40 °C |
