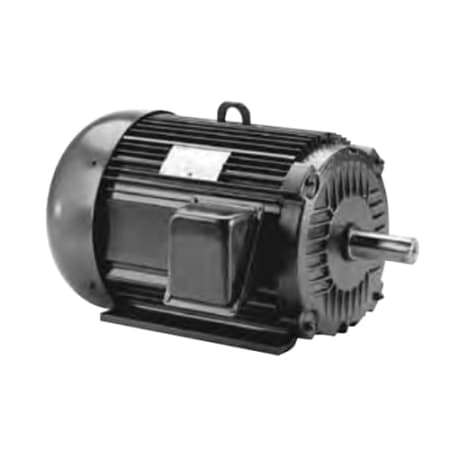

Leeson LM32813 General Purpose Motor, 30 HP, 3600 rpm, 230V, 286T Frame, TEFC, Rigid Base Mount
EIS #:MOTLM32813
EIS #:MOTLM32813
Out of Stock
Min Qty:1
|Qty Increment:1
Leeson Motor, Bearing Type: Ball, Construction: Aluminum Frame, Enclosure Type: Totally Enclosed Fan-Cooled, Frequency Rating: 60 Hz, Insulation Type: Class F, Mounting Type: Rigid Base, Phase: 3-Phase, Rotation: Reversible, Temperature Rating: 40 deg C, Voltage Rating: 230V.
Standard, EPACT and premium efficient ratings. Inverter-rated. Shielded ball bearings for direct coupled applications. Dynamically balanced rotors. Torques exceed NEMA Performance standards. Rigid base mounting and Continuous duty
$7,222.43 / Piece
Min Qty:1
|Qty Increment:1
Leeson Motor, Bearing Type: Ball, Construction: Aluminum Frame, Enclosure Type: Totally Enclosed Fan-Cooled, Frequency Rating: 60 Hz, Insulation Type: Class F, Mounting Type: Rigid Base, Phase: 3-Phase, Rotation: Reversible, Temperature Rating: 40 deg C, Voltage Rating: 230V.
Standard, EPACT and premium efficient ratings. Inverter-rated. Shielded ball bearings for direct coupled applications. Dynamically balanced rotors. Torques exceed NEMA Performance standards. Rigid base mounting and Continuous duty
- Attributes
- Features
- Applications
Attributes
General Information
Item NameGeneral Purpose Motor
Trade NameLeeson
General Features
StandardsUL Listed, CSA Approved, CE Certified
Design & Construction
Bearing TypeBall
ConstructionAluminum Frame
DutyContinuous
Enclosure TypeTotally Enclosed Fan-Cooled
Frame Type286T
Insulation TypeClass F
KVA CodeG
Mounting TypeRigid Base
RotationReversible
Performance Details
Speed Rating3600 rpm
Full Load Efficiency92.4%
1/2 Load Efficiency93.4%
Overload ProtectorNo
3/4 Load Efficiency93.6%
Torque Rating44.6 lb-ft
Electrical Properties
Frequency Rating60
Full Load Ampere66 A
Full Load Power Factor92%
1/2 Load Power Factor87%
HP Rating30 HP
Phase3-Phase
Service Factor1.25
3/4 Load Power Factor91.1%
Physical Properties
Dimensions28.12 Inch L x 18.77 Inch W x 16.1 Inch H
Frame Size286
Shaft Diameter1.874 Inch
Shaft Length4.97 Inch
Weight438 lb
Features
- Shielded ball bearings for direct coupled applications
- Continuous duty
- Dynamically balanced rotors
- Torques exceed NEMA performance standards
- Full load ampere: 51A at 190V, 66A at 230V, 25.5A at 380V, 33A at 460V
- Service factor ampere: 59A at 190V, 84A at 230V, 29.5A at 380V, 42A at 460V
- Voltage rating: 230/460V, 190/380V
- Shaft diameter: 1.874 - 1.875 Inch
- Torque rating: 44.6 lb-ft (Full Load)
- Frequency rating: 50/60 Hz
- HP rating: 30 HP at 60 Hz, 25 HP at 50 Hz
- Speed rating: 3600 rpm at 60 Hz, 3000 rpm at 50 Hz
- Power rating: 22.4kW at 60 Hz, 18.7 kW at 50 Hz
- Service factor: 1.25 at 60 Hz, 1.15 at 50 Hz
- Full load efficiency: 92.4% at 60 Hz, 90% at 50 Hz
- Full load power factor: 92% at 60 Hz, 91% at 50 Hz
Applications
- For use where Exposure to Water, Dust and Corrosives Exists. Ideally Suited for use on Pumps, Compressors, Fans, Blowers, Conveyors, Machine Tools and other Industrial Applications
