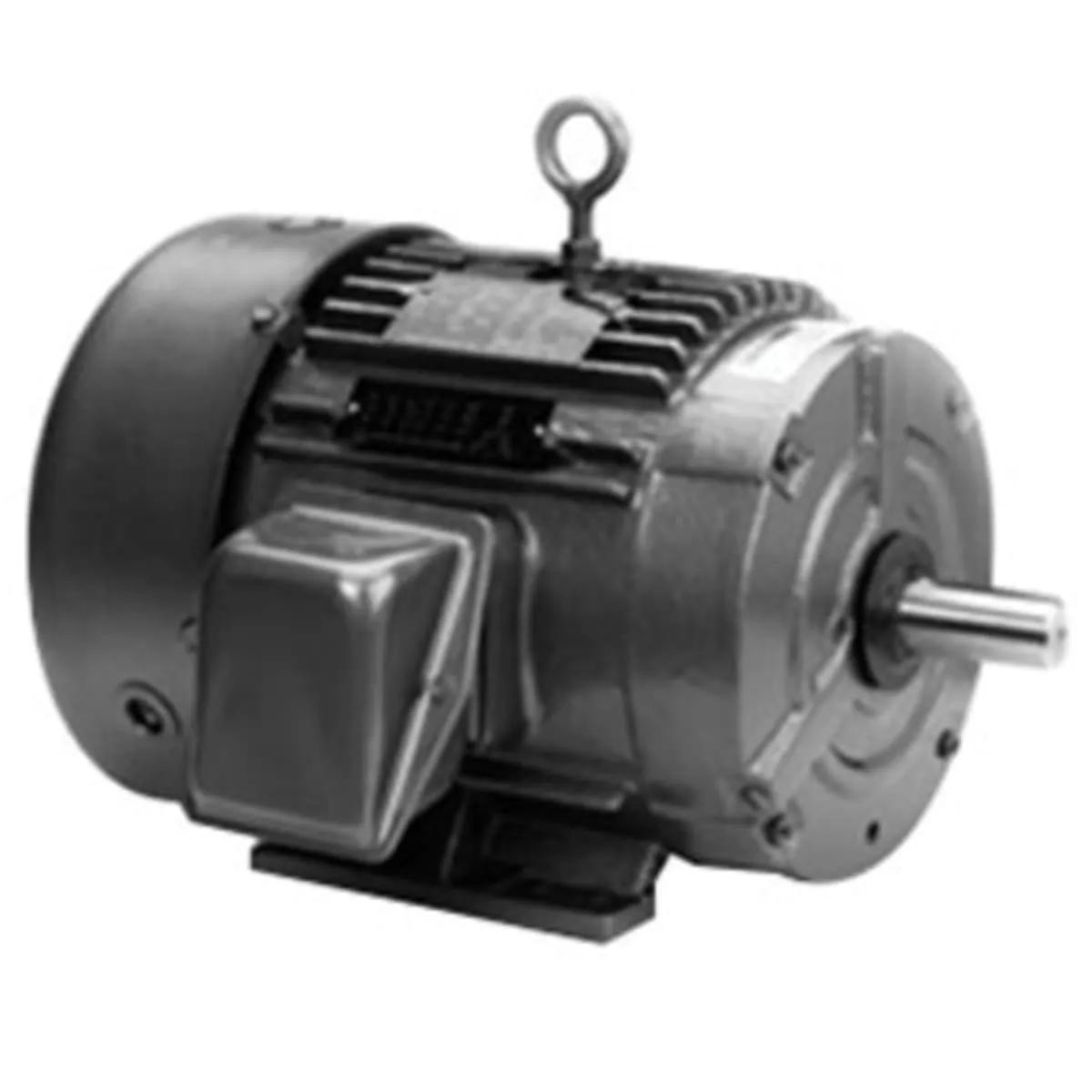

Leeson LM32811 General Purpose Motor, 25 HP, 3600 rpm, 230V, 284T Frame, TEFC, Rigid Base Mount
- EIS #MOTLM32811
$6,617.53 / Piece
Available to Order
Min QTY1QTY Increment1
more info
Products You May Also Like
Leeson Motor, Bearing Type: Ball, Construction: Aluminum Frame, Enclosure Type: Totally Enclosed Fan-Cooled, Frequency Rating: 60 Hz, Insulation Type: Class F, Mounting Type: Rigid Base, Phase: 3-Phase, Rotation: Reversible, Temperature Rating: 40 deg C, Voltage Rating: 230V.
Standard, EPACT and premium efficient ratings. Inverter-rated. Shielded ball bearings for direct coupled applications. Dynamically balanced rotors. Torques exceed NEMA Performance standards. Rigid base mounting and Continuous duty
Features
- Voltage Rating: 230/460V
- Dimensions: 26.62 Inch L
- Full load ampere: 56A at 230V
- Voltage rating: 230/460V
Applications
- For use where Exposure to Water, Dust and Corrosives Exists. Ideally Suited for use on Pumps, Compressors, Fans, Blowers, Conveyors, Machine Tools and other Industrial Applications
General Information
| Item Name | General Purpose Motor |
| Trade Name | Leeson |
General Features
| Standards | UL Listed, CSA Approved, CE Certified |
Design & Construction
| Bearing Type | Ball |
| Construction | Aluminum Frame |
| Duty | Continuous |
| Enclosure Type | Totally Enclosed Fan-Cooled |
| Frame Type | 284T |
| Insulation Type | Class F |
| KVA Code | G |
| Mounting Type | Rigid Base |
| Rotation | Reversible |
Performance Details
| Speed Rating | 3600 rpm |
| Full Load Efficiency | 92.4% |
Electrical Properties
| Frequency Rating | 60 |
| Full Load Ampere | 56 A |
| Full Load Power Factor | 90.5% |
| HP Rating | 25 HP |
| Phase | 3-Phase |
| Service Factor | 1.25 |
Physical Properties
| Frame Size | 284 |
| Shaft Diameter | 1.875 Inch |
| Shaft Length | 4.97 Inch |
| Weight | 433 lb |
