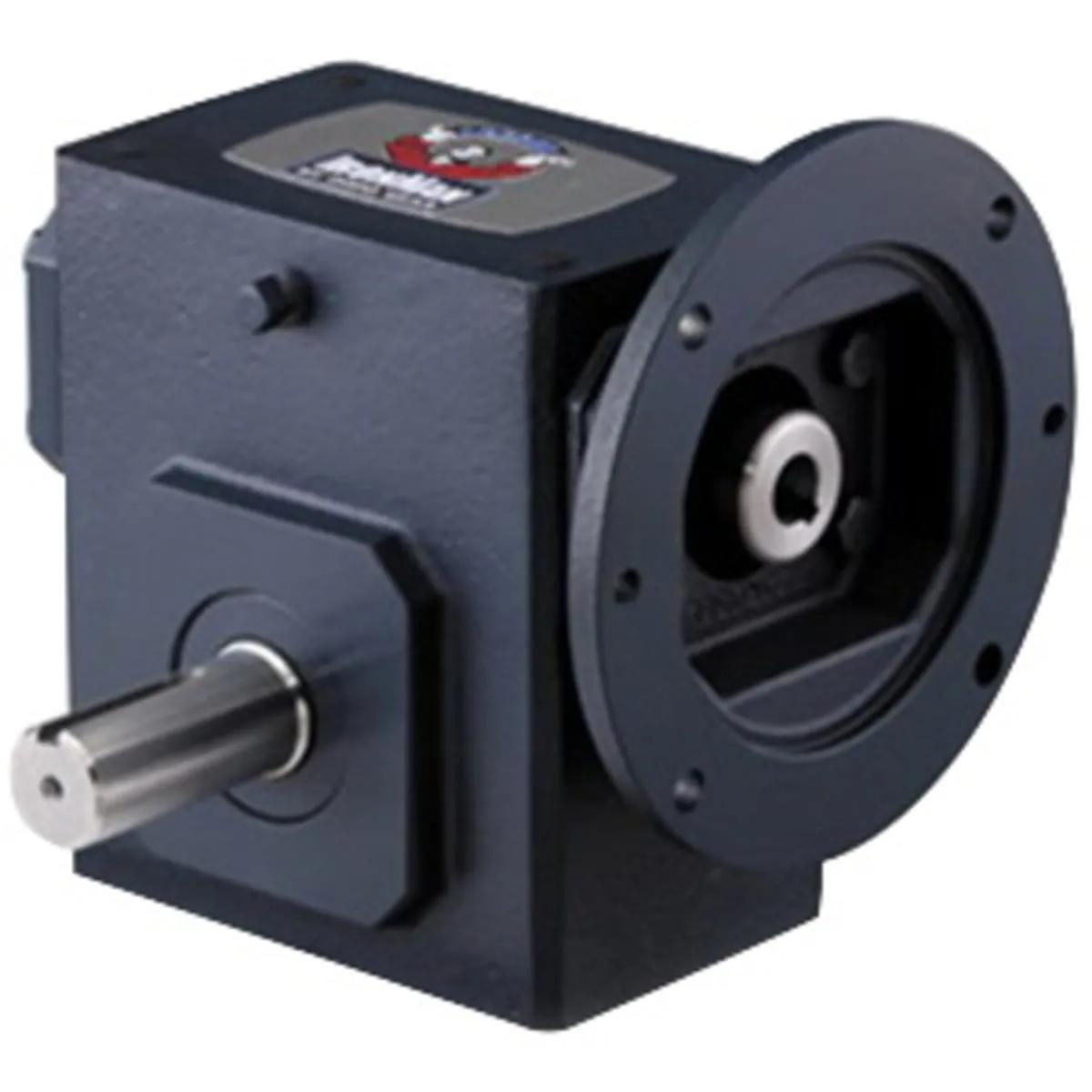

Leeson GRL-BMQ821-100-L-56 Style BMQ Interchange Grove Gear Reducer, 100:1 Gear Ratio, 0.217 HP, 1750 rpm Input, 0.122 HP, 17.5 rpm Output, 56C Frame
- MFR #GRL8210120.00
- EIS #MOTGRL8210120.00
$1,118.36 / Piece
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
| Stock Status | ||||
|---|---|---|---|---|
 | Style B, Interchange, Right-hand Shaft | 80:1 | $ / Piece | |
 | Style BMQ, Interchange, Left-hand Shaft | 30:1 | $ / Piece | |
| Style BMQ, Interchange, Left-hand Shaft | 100:1 | $ / Piece | |
 | Style HM, Interchange, Hollow Shaft | 20:1 | $ / Piece | |
| Style HM, Interchange, Hollow Shaft | 15:1 | $ / Piece | |
 | Style BMQ, Interchange, Double Shaft | 60:1 | $ / Piece |
Viton® double-lip seals and super micro finished seal surfaces on input and output shafts. Extra large lubricant reservoir filled with premium, high-temperature synthetic lubricant. Oversized high-speed bearings, positively retained for frequent reversing and start/stop cycles.
Available through 10 Inch center distance, the 800 Series GRL Grove Gear IRONMAN reducer line is a true heavy duty workhorse that handles the environmental assaults, shock loading, frequent reversing and continuous duty cycles typical in many industrial applications. Designed to be the premium worm reducer in the industry, IRONMAN reducers feature top quality features.
Applications
- Wide Variety Of Applications Requiring Slow Speed And High Torque, Ideal For Conveyors, Material Handling, Textile Machines, Packaging Machinery, Etc
Features
- Factory filled with premium synthetic pag lube as standard
- O-rings on input and output covers
- Viton seals throughout
- Bronze alloy worm gear
- Mounting dimensions are interchangeable with Baldor 900 series, Boston Gear, Browning Raider, Falk, Morse Invader and other "industry standard" reducers
- Seal guard
- NEMA C
- Left hand output shaft orientation
- Motorized, C-faced quill input style
General Information
| Item Name | Gear Reducer |
| Trade Name | Leeson |
| Series | GRL |
General Features
| Type | Style BMQ, Interchange, Left-hand Shaft |
Design & Construction
| Bearing Type | Tapered Roller |
| Gear Material | Bronze |
| Gear Type | Worm |
| Material | Cast Iron |
| Mounting Type | C-Flange |
| Seal Type | Dual Lip |
| Shaft Position | Horizontal |
Performance Details
| Input Speed | 1750 rpm |
| Over-Hung Load | 1580 lb |
Electrical Properties
| Output HP | 0.122 HP |
Physical Properties
| Dimensions | 2.06 Inch Center Distance |
| Frame Size | 56 |
