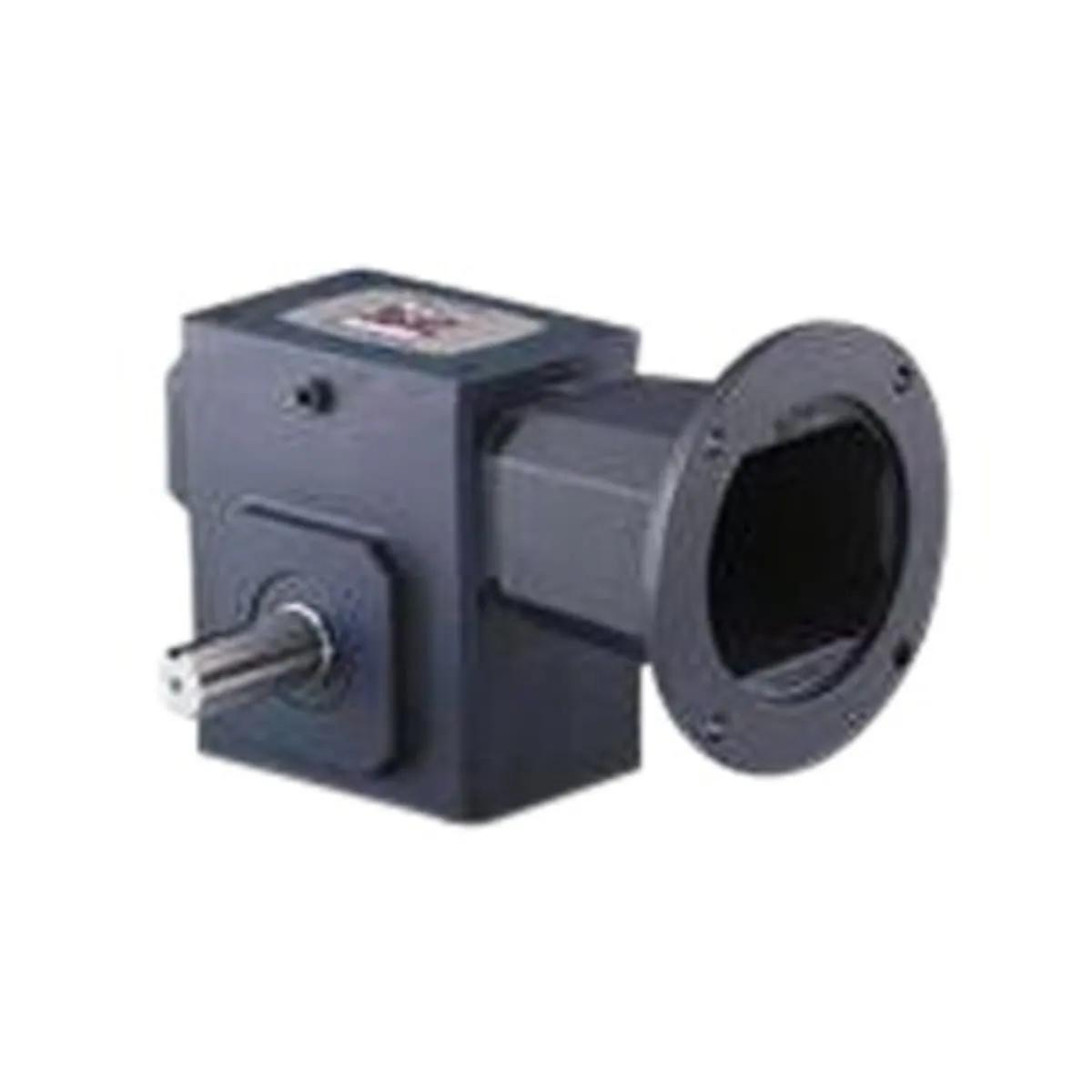

Leeson 830 Style BMQ Washdown Gear Reducer, 100:1 Gear Ratio, 0.6 HP, 1750 rpm Input, 0.37 HP, 18 rpm Output, 56C Frame, MFR ID W8300192
- MFR #GR8300192.00
- EIS #MOTW8300192
$1,758.77 / Piece
Available to Order
Min QTY1QTY Increment1
more info
Leeson Electric 830 Style BMQ Washdown Gear Reducer has one-piece cast iron housings with single output cover design, CNC machined for precise component fit and alignment. Oversize high-speed bearings, positively retained for frequent reversing and start/stop cycles. Features o-rings on all bearing covers, eliminating gaskets, sealants and leaks.
Leeson Electric 830 Style BMQ Washdown Gear Reducers are directly interchangeable with other brands of cast iron worm reducers, including Baldor, Boston Browning, Dodge, Grove and Morse. Ultimate application flexibility with all-angle mounting provisions, the widest selection of accessory bases and flanges and the largest selection of stock reducer styles.
Features
- Motorized, quill input solid output shaft
- Oversize high-speed bearings, positively retained for frequent reversing and start/stop cycles
- O-rings on all bearing covers, eliminating gaskets, sealants and leaks
- One-piece cast iron housings with single output cover design, CNC machined for precise component fit and alignment
- Directly interchangeable with other brands of cast iron worm reducers, including Baldor, Boston Browning, Dodge, Grove and Morse
- Ultimate application flexibility with all-angle mounting provisions, the widest selection of accessory bases and flanges and the largest selection of stock reducer styles
- Left hand output shaft orientation
Applications
- For Industrial Use
General Information
| Item Name | Gear Reducer |
| Trade Name | Leeson |
General Features
| Type | Style BMQ, Washdown, Left-hand Shaft |
Design & Construction
| Gear Material | Bronze |
| Gear Type | Worm |
| Material | Cast Iron |
| Seal Type | Dual Lip |
| Shaft Position | Horizontal |
Performance Details
| Input Speed | 1750 |
| Load Capacity | 1500 lb |
Electrical Properties
| Output HP | 0.37 HP |
Physical Properties
| Frame Size | 56 |
