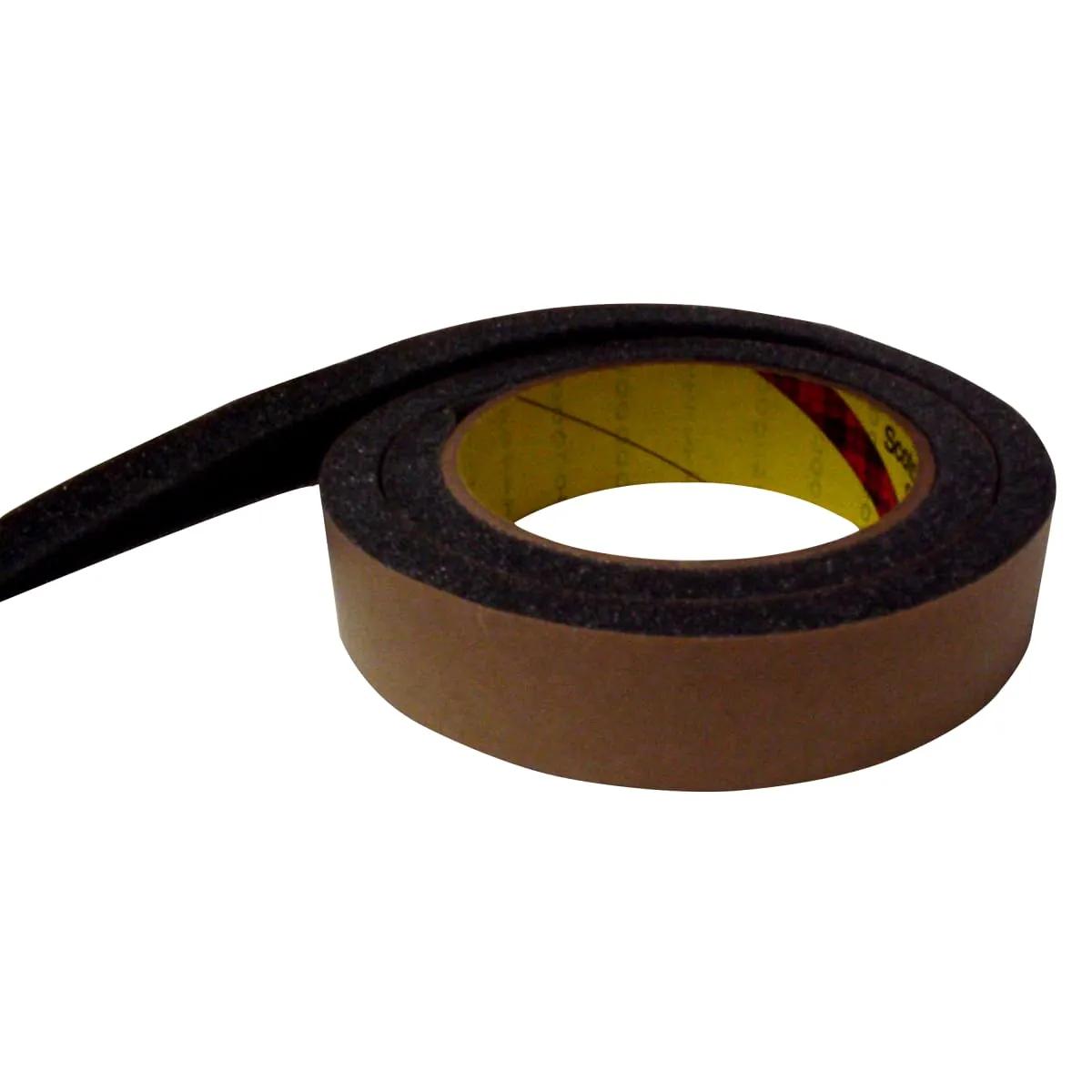

3M 4317 Single Coated Urethane Foam Tape, MFR ID 4317-3M
- MFR #4317-3M
- EIS #PH22-4317-3M
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--Products You May Also Like
| Stock Status | |||
|---|---|---|---|
 | 0.5 Inch | $ / Roll Pack: 18/Case | |
 | 0.375 Inch | $ / Roll Pack: 24/Case more info |
3M urethane foam tape 4317 is comprised of a soft conformable, low-density, open-cell foam with a pressure sensitive acrylic adhesive on one side. The adhesive is protected by a silicone treated paper liner. Dampens sounds and absorbs vibration when used in electronic applications. - It offers excellent cushioning characteristics while providing high absorbency to seal out moisture, dust and drafts. It can perform under a wide range of temperatures. Excellent cushioning characteristics and high absorbency.
Features
- Charcoal gray, 3/8 Inch soft conformable, low density, open cell foam design helps seal out air, dust and light when compressed
- Offers high initial quick-stick to multiple substrates
- Provides excellent shear strength and high temperature performance
- Temperature rating of -20 to 150 °F
Applications
- For Transportation, Specialty Vehicle, Construction, General Industrial, Appliance
General Information
| Item Name | Foam Tape |
| Series | 4317-3M |
General Features
| Type | Single Coated |
| Shelf Life | 18 Months |
| Storage Temperature | 60 to 80 °F |
Design & Construction
| Adhesive Type | Acrylic |
| Applicable Material | Latex-Painted Wood, Lacquered Wood, Enameled Steel, Glass, Aluminum, Stainless Steel, Acrylic, ABS and PVC |
| Backing Material | Urethane Foam |
| Color | Charcoal Gray/Tan Liner |
| Liner Material | Paper |
Performance Details
| Tensile Strength | 25 psi |
Electrical Properties
| Dielectric Strength | 40 V/mil |
Physical Properties
| Core Size | 3 Inch |
| Elongation | 125% |
| Width | 0.375 Inch |
| Length | 9 Yard |
| Thickness | 375 mil |
Environmental Condition
| Resists | Dust, Chemical |
| Temperature Rating | 150 °F |
Supporting Information
| Applicable Materials | Latex-Painted Wood, Lacquered Wood, Enameled Steel, Glass, Aluminum, Stainless Steel, Acrylic, ABS and PVC |
Documents
No Documents Found
