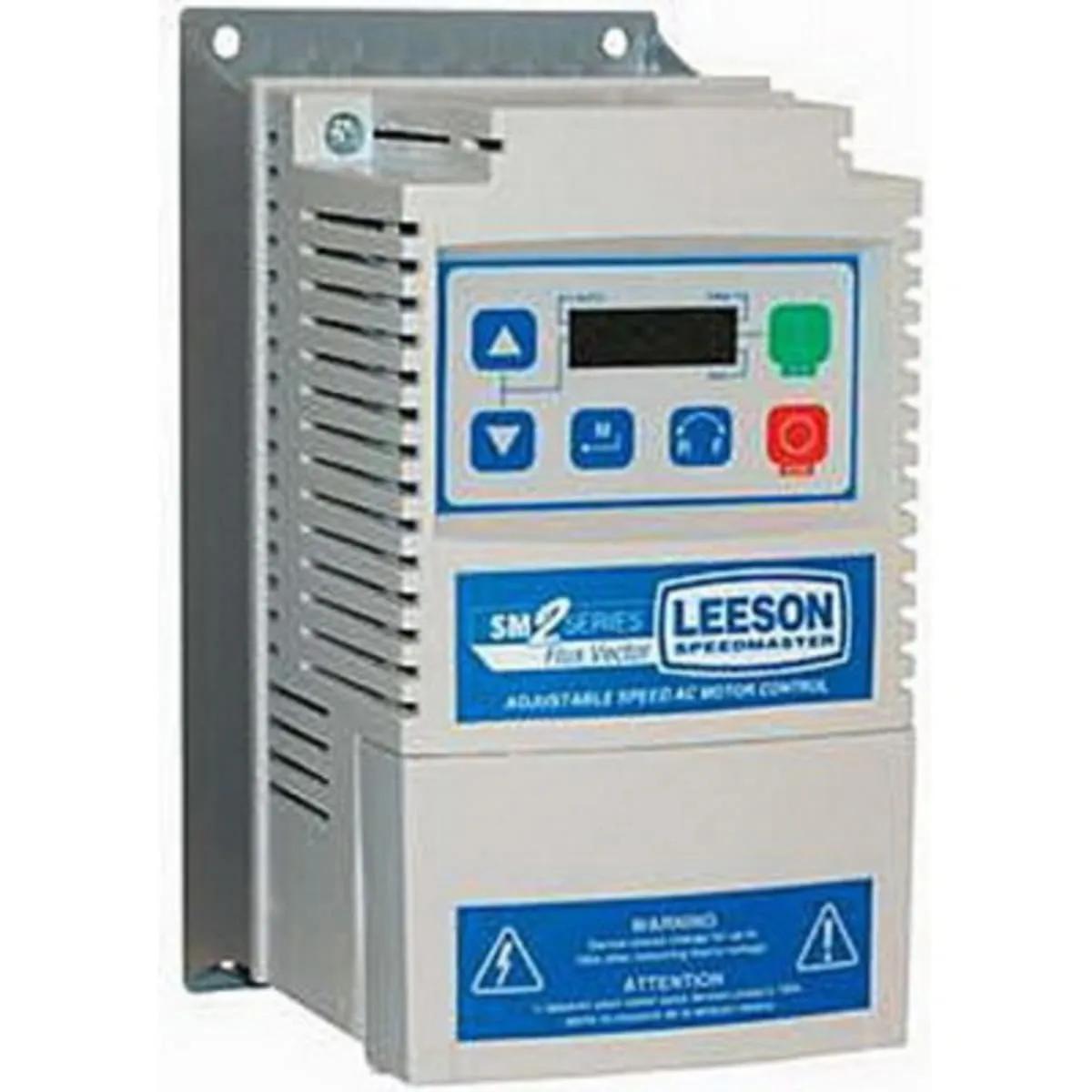

Leeson SM2 Series Adjustable Flux Vector Drive, 400 - 480V, 230VAC, 8.2A Output, MFR ID 174625
- MFR #174625.00
- EIS #MOT174625
- Series #SM2-174609
$1,549.50 / Piece
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Products You May Also Like
| Stock Status | ||||
|---|---|---|---|---|
 | 7.5 HP | 200 V | $ / Piece | |
| 5 HP | 200 V | $ / Piece | |
 | 3 HP | 400 V | $ / Piece | |
| 5 HP | 400 V | $ / Piece | |
| 20 HP | 400 V | $ / Piece | |
| 5 HP | 480 V | $ / Piece |
Leeson Electric SM2 Series Adjustable Flux Vector Drive has selectable logic assertion, positive logic input (PNP current sourcing), negative logic input (NPN current sinking). Speed commands keypad, log, floating point control. Easy set-up and operation.
Leeson Electric SM2 Series Adjustable Flux Vector Drive features process control, PID modes, direct or reverse acting, PID sleep mode. Speed commands keypad, log, floating point control. Program the vector control in one of four convenient ways from the front of the drive, the optional remote keypad, a pc using tech link software, the innovative ELM programmer.
Features
- Process control, PID modes, direct or reverse acting, PID sleep mode
- Open Loop Flux Vector (Speed Or Torque), V/Hz (Constant Or Variable), Enhanced V/Hz With Auto-Tuning
- Input Frequency: 50/60 Hz
- Temperature Rating: -10 to 55 °C
- Easy to use keypad and display 6-button interface, start, stop, forward/reverse, scroll up, scroll down, enter/mode
- Input Voltage: 400 - 480V
- Output Frequency: 500 Hz Standard, 1000 Hz Optional
General Information
| Item Name | Flux Vector Drive |
| Trade Name | Leeson |
| Series | SM2-174609 |
General Features
| Net Weight | 4.3 lb |
| Standards | UL Listed, cUL Certified, CE Certified, GOST Certified, C-Tick |
| Type | Adjustable |
Design & Construction
| Construction | Plastic Housing and Enclosure |
| Display | LED |
| Enclosure Type | NEMA 1 |
| Mode of Operation | Dynamic Braking |
Electrical Properties
| HP Rating | 5 HP |
| Input Frequency | 50 |
| Input Voltage | 400 V |
| Output Frequency | 500 |
| Output Voltage | 230 |
| Phase | 3-Phase |
Physical Properties
| Dimensions | 3.9 Inch W x 5.8 Inch D x 7.5 Inch H |
