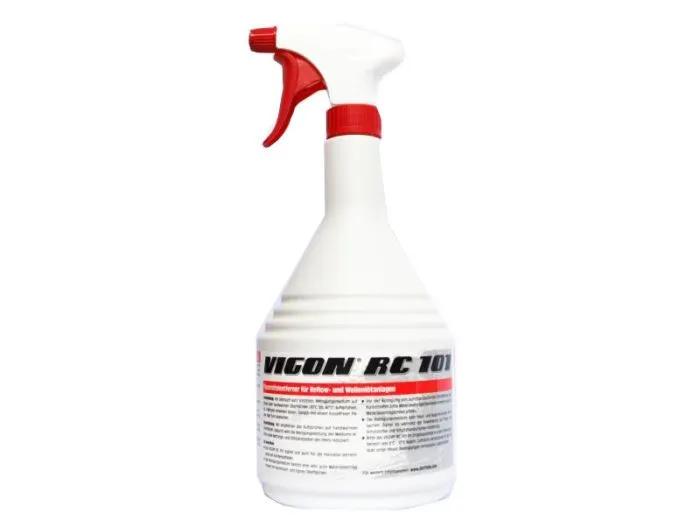

Zestron 0210-0001 Vigon Flux Remover, 12 Liters per Box
- MFR #0210-0001
- EIS #0210-0001-ZES
- Series #RC 101
$310.59 / Box
Pack: 12 Liters/Box
In Stock | Ready to Ship
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack12 Liters/BoxProducts You May Also Like
| Stock Status | |||
|---|---|---|---|
 | 1L | $ / Box Pack: 12 Liters/Box | |
 | 25L | $ / Can |
Based on the MPC Technology, VIGON RC 101 was specifically developed to remove all types of baked-on flux residues from reflow and wave solder equipment. It reliably removes re-condensated fluxes and emissions from assemblies. - The medium does not contain any ingredients, which could leave residues on the oven surfaces. This avoids harmful condensations on the assembly surfaces after restarts.
Applications
- For Reflow and Wave Solder Equipments
Features
- Has no flash point and therefore can be applied directly onto cold or warm surfaces
- Due to the short soaking time, a quick and efficient cleaning process can be achieved and long machine downtimes can be avoided
- Has a mild formulation with a low alkaline pH-value. Therefore, no special labeling is required
- Excellent material compatibility with aluminum and epoxy surfaces
- The cleaning agent is also suitable for the pre-cleaning of condensation traps
- Has little odor
- Reduced cleaning agent consumption compared to IPA
- Its no flashpoint formulation significantly increases the operator's safety
- Biodegradable
- Formulated free of halogenated compounds and is very environmentally friendly and considered a non-hazardous material
- No special precaution for handling is required
General Information
| Item Name | Flux Remover |
| Trade Name | Vigon |
| Series | RC 101 |
General Features
| Standards | REACH, RoHS, WEEE Compliant |
| Net Weight | 1 L |
| Shelf Life | 60 Months |
| Storage Temperature | 5 to 30 C |
Design & Construction
| Form | Liquid |
Performance Details
| Removes | Low Solid Flux Residues, Rosin Based Flux Residues, Water Soluble Flux Residues, Synthetic Fluxes, Fumigation Contamination |
| Vapor Pressure | Approx. 11 mbar at 20 C |
Technical Details
| Boiling Point | >99 to 212 C |
Chemical Properties
| pH Rating | 10.8 (10g/L H2O) |
Physical Properties
| Container Size | 1L |
| Container Type | Bottle |
| Density | 0.99 g/cm3 at 20 C |
Environmental Condition
| Temperature Rating | 20 to 50 C |
Supporting Information
| Applicable Materials | Aluminum, epoxy |
| For Use With | Reflow ovens, wave soldering systems, conveyor fingers |
| Use With | Manual and automated cleaning equipment |
| Solubility In Water | Soluble |
