MFR #:8310460952
EIS #:952-D6-FLUXPEN
Series #:952-D6
MFR #:8310460952
EIS #:952-D6-FLUXPEN
Series #:952-D6
Out of Stock
Min Qty:1
|Qty Increment:1

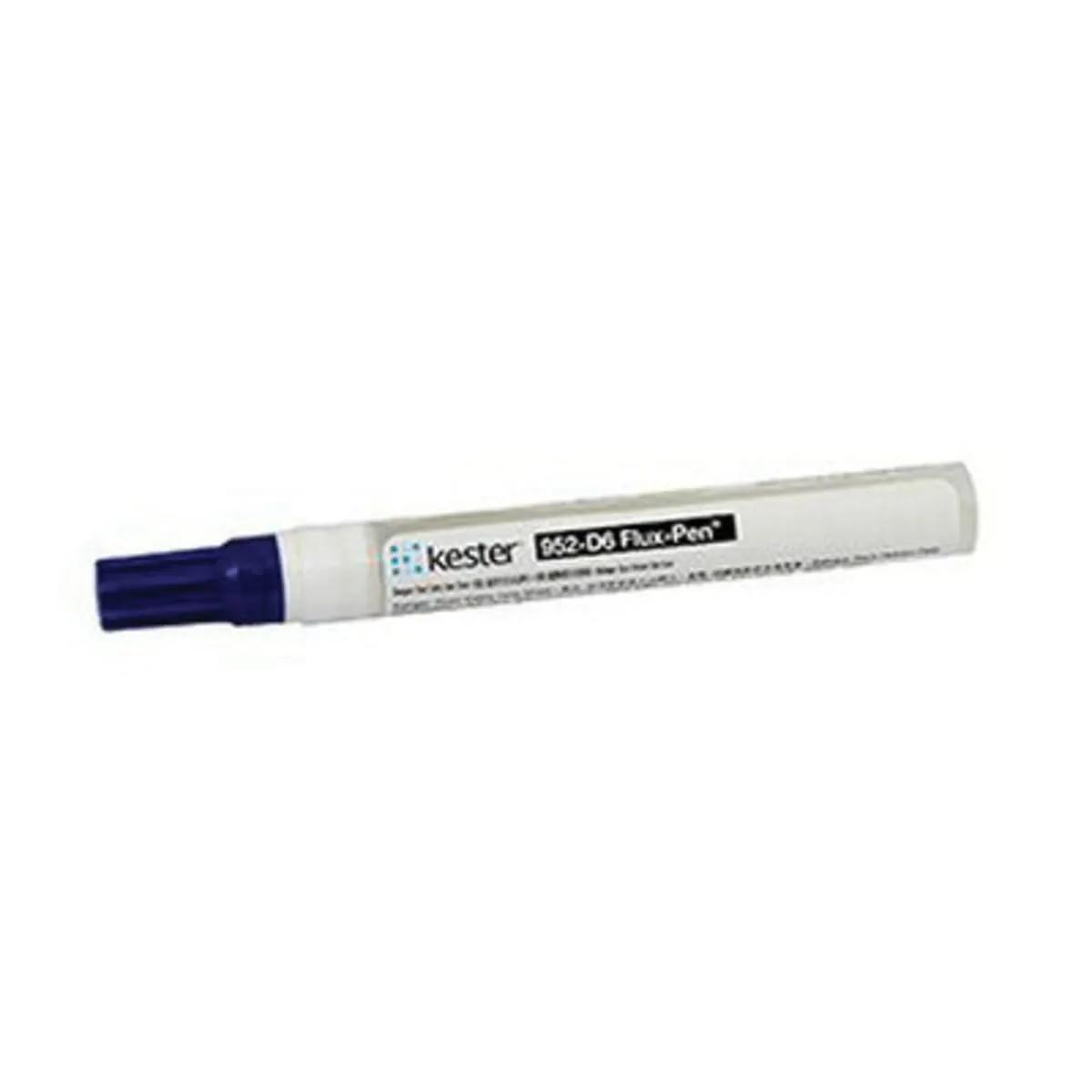

The Kester 952-D6 flux pen is a no-clean, non-corrosive, halide-free flux pen that is specifically designed for lead-free rework of conventional and surface mount circuit board assemblies. Essentially no residue remains after soldering. A major advantage of this flux is the reduced odor associated with the soldering process. 952-D6 incorporates a small amount of rosin for higher reliability. - 952-D6 was developed with a modified surface tension to aid in soldering boards that have surface mount and high component densities. This comprehensive formulation possesses improved wetting characteristics and also exhibits superior corrosion inhibiting properties and provides a non-tacky residue.
$14.97 / each
Min Qty:1
|Qty Increment:1
The Kester 952-D6 flux pen is a no-clean, non-corrosive, halide-free flux pen that is specifically designed for lead-free rework of conventional and surface mount circuit board assemblies. Essentially no residue remains after soldering. A major advantage of this flux is the reduced odor associated with the soldering process. 952-D6 incorporates a small amount of rosin for higher reliability. - 952-D6 was developed with a modified surface tension to aid in soldering boards that have surface mount and high component densities. This comprehensive formulation possesses improved wetting characteristics and also exhibits superior corrosion inhibiting properties and provides a non-tacky residue.
- Attributes
- Features
- Applications
Attributes
General Information
Item NameFlux Pen
Series952-D6
General Features
Shelf Life24 Months
Storage Temperature10 to 25 °C
Design & Construction
Flux TypeNo-Clean
FormLiquid
Performance Details
Vapor Density0.81 g/cc
Vapor Pressure59 hPa
Chemical Properties
Chemical CompositionIsopropanol, Ethanol, n-Butyl Acetate, Methanol, Dimethyl Adipate, Adipic Acid, Modified Rosin
Flux Formula952
Physical Properties
Container Size0.33 oz
Odor/ScentAlcohol
Supporting Information
Flux DesignatorORL0
RoHS Info2011/65/EU Directive
Features
- Residues are almost colorless
- Improves soldering performance
- Reduced odor associated with soldering process
- Eliminates the need and expense of cleaning
- Non-corrosive tack-free residues
- Contains <0.5% rosin
- Vapor density of 0.81 g/cc at 20 °C
- Vapor pressure of 59 hPa at 20 °C
Applications
- For Rework of Conventional and Surface Mount Circuit Board Assemblies
