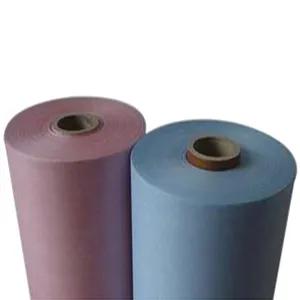

DMD 70 Flexible Laminate Roll, MFR ID Dacron® Mylar® Dacron®-70-ROL
- MFR #Dacron® Mylar® Dacron®-70-ROL
- EIS #PH21-Dacron Mylar Dacron-70-ROL
- Series #Dacron® Mylar® Dacron®-70-ROL
$9.41 - $15.65
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--| Stock Status | |||||
|---|---|---|---|---|---|
 | 500 Yard | 9 mil | 36 Inch | $ / Square YD more info | |
| 250 Yard | 9 mil | 2 Inch | $ / Square YD more info | |
| 250 Yard | 9 mil | 1.25 Inch | $ / Square YD more info | |
| 250 Yard | 9 mil | 1.5 Inch | $ / Square YD more info | |
| 250 Yard | 9 mil | 1.75 Inch | $ / Square YD more info | |
| 50 Yard | 0.009 Inch | 36 Inch | $ / Square YD more info |
DMD is made of two layers of electrical polyester non-woven and one layer of electrical grade polyester film, laminated with a high temperature adhesive system, with good dielectric properties, high heat resistance and mechanical strength, suitable for small and medium size electric motors as slot, phase, turn-to-turn, liner insulation in F-class Motor. - A series of flexible composites compound of non-woven polyester fiber mat electrical grade polyester film with a porous, fibrous surface. Laminated with a high temperature polyester adhesive system.
Features
- Excellent thermal stability
- Excellent electrical properties
- Retained flexibility
- High tear, tensile and burst strength
- Excellent moisture and chemical resistance
- Cut-through resistance
- Saturable with resin or varnishes
- 70% Resin Filled Protection
Applications
- Slot & Phase Insulation for Motors and Generators
- Layer & Barrier Insulation for Dry-type Transformer
General Information
| Item Name | Flexible Laminate |
| Trade Name | Dacron® Mylar® Dacron®-70 |
| Series | Dacron® Mylar® Dacron®-70-ROL |
General Features
| Type | Triplex |
Design & Construction
| Insulation Type | Class F |
