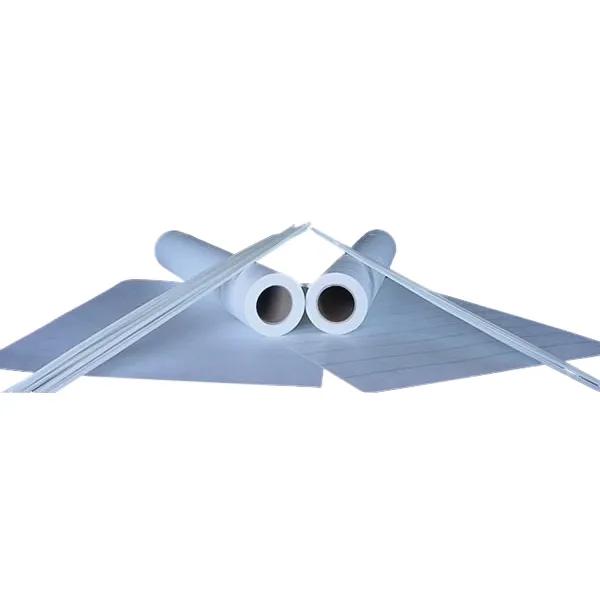

Fiber-Tek DMD-155 White Triplex Flexible Laminate Roll, 0.015" x 36" x 36 yd, MFR ID DMD155555AF
- MFR #DMD555R
- EIS #DMD155555AF
- Series #Dacron® Mylar® Dacron®-155-ROL
$15.08 / Square YD
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
| Stock Status | |||||
|---|---|---|---|---|---|
 | 15800 V | 0.015 Inch | 210 lb/Inch | $ / Square YD more info |
he Fibertek ''Res-I-Lam'' family of DMD Flexible Laminates is both new and revolutionary in today's marketplace. All other producers of DMD Laminates use a solvent based adhesive system which falls woefully short of the quality features of the Fibertek DMD products. The Fibertek superiority is a direct result of our proprietary solvent-free adhesive system, developed and employed exclusively by Fibertek. - The Fibertek adhesive system is totally solvent-free. It is a high temperature, thermosetting, highly crosslinked, co-polymer system.
Features
- The class 155 °C product is solid white in color
- No blistering at elevated temperatures
- No curling at elevated temperatures
- No delamination at elevated temperatures
- No cracking at elevated temperatures
- Increased dielectric strength values - up to 15%
- Easier to slit, sheet, die cut & form
- Tensile Strength: 210 lb/Inch (MD), 185 lb/Inch (CD)
Applications
- Motors
- Generators
- Transformers
- Coil Separator
- Slot Liner
- Wedges
- Phase Insulation
- Interlayer Insulation in Transformers, Motors, Electrical Machines and Appliances
- Primary Layer and Outer Wrap Insulation for Transformers and Hermetically Sealed Motors
General Information
| Item Name | Flexible Laminate |
| Trade Name | Dacron® Mylar® Dacron®-155 |
| Series | Dacron® Mylar® Dacron®-155-ROL |
General Features
| Type | Triplex |
Design & Construction
| Color | White |
| Insulation Type | Class F |
Performance Details
| Tensile Strength | 210 lb/Inch |
Electrical Properties
| Dielectric Strength | 15800 V |
Physical Properties
| Thickness | 0.015 Inch |
| Length | 36 Yard |
| Width | 36 Inch |
