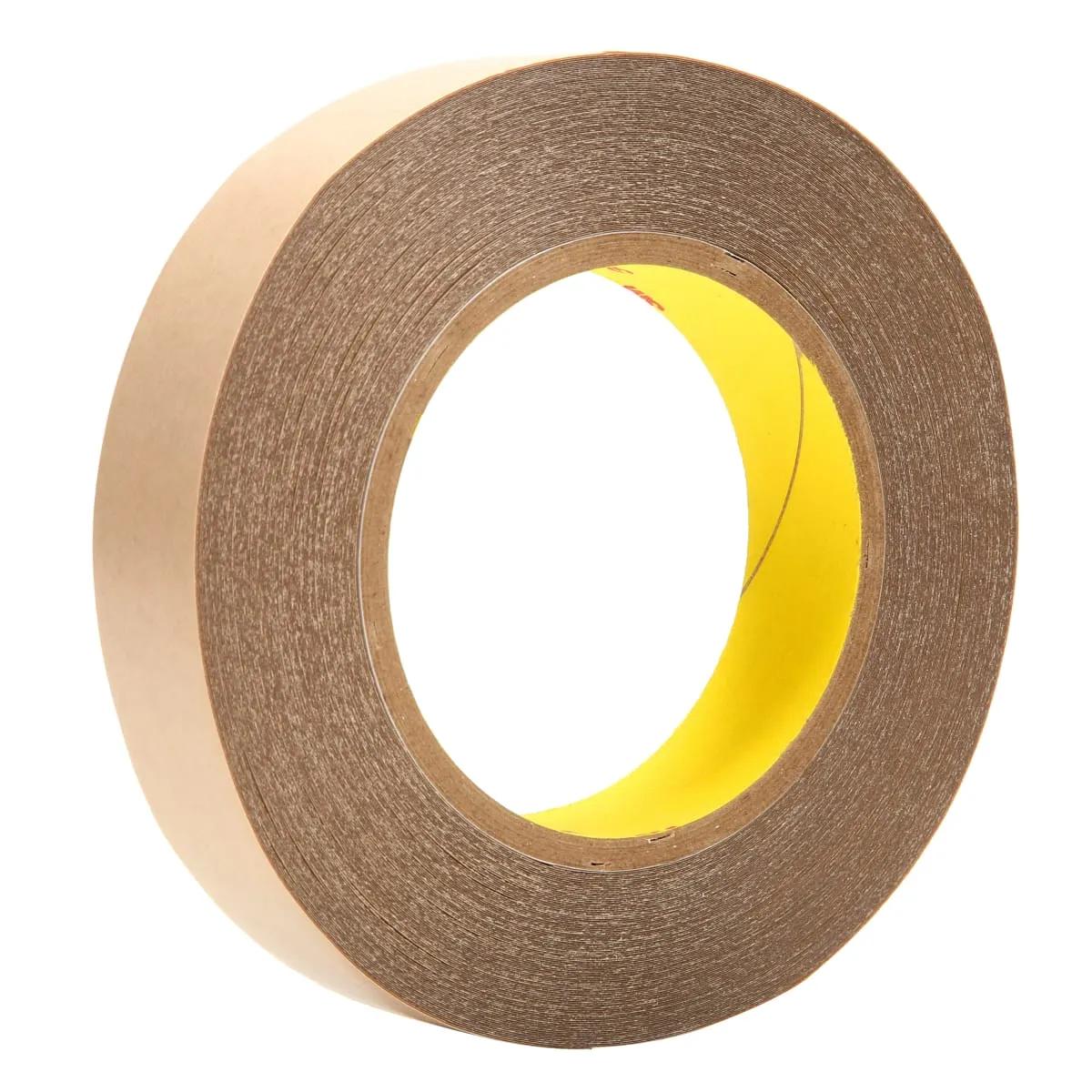

3M 9500PC Double-Coated Polyester Film Tape
MFR #:9500PC
EIS #:PH22-9500PC
MFR #:9500PC
EIS #:PH22-9500PC
3M double coated tapes 9500PC feature a thin polyester film for dimensional stability and improved handling with ease of die-cutting and laminating. 3M adhesive 350 is a medium-firm acrylic adhesive that provides a combination of high wet grab and initial adhesion and good shear holding power to a wide variety of materials, including many plastics. - 3M double coated tape 9500PC has a moisture resistant liner which can withstand high humidity conditions with minimal cockling or wrinkling. High performance with good chemical resistance.
$22.97
- $197.19
Select from the options below
3M double coated tapes 9500PC feature a thin polyester film for dimensional stability and improved handling with ease of die-cutting and laminating. 3M adhesive 350 is a medium-firm acrylic adhesive that provides a combination of high wet grab and initial adhesion and good shear holding power to a wide variety of materials, including many plastics. - 3M double coated tape 9500PC has a moisture resistant liner which can withstand high humidity conditions with minimal cockling or wrinkling. High performance with good chemical resistance.
Product Options
Showing 5 out of 5 options
Width: 4 Inch | EIS Part #: 3M9500PCX4 | $ / Roll Pack: 8/Case | ||
Width: 2 Inch | EIS Part #: 3M9500PCX2 | $ / Roll | ||
Width: 1 Inch | EIS Part #: 3M9500PCX1 | $ / Roll Pack: 36/Case | ||
Width: 0.75 Inch | EIS Part #: 3M9500PCX.75 | $ / Roll Pack: 48 Roll/Case | ||
Width: 0.5 Inch | EIS Part #: 3M9500PCX.5 | $ / Roll Pack: 72/Case |
- Attributes
- Features
- Applications
Attributes
General Information
Item NameFilm Tape
Series9500PC
General Features
Shelf Life24 Months
Storage Temperature21 °C
TypeDouble-Coated
Design & Construction
Adhesive TypeAcrylic
ColorClear/Tan Liner
Carrier MaterialPolyester
Liner MaterialPolycoated Kraft Paper
Performance Details
Shear StrengthSee TDS
Physical Properties
Core Size3 Inch
Length36 Yard
Thickness5.6 mil
Width0.500 Inch
Adhesive Thickness2.3 mil
Carrier Thickness1 mil
Environmental Condition
ResistsChemical, Moisture, Temperature, UV, Plasticizer
Temperature Rating350 °F
Features
- Adheres to powder coated surfaces and most plastics such as LED lens attachment in cellular phones and pagers
- High holding strength with short term heat resistance up to 350 °F
- Provides moisture stability and the liner reduces edge burr during hard tool die-cutting
- Adhesive thickness of 2.3 Mil (Back-Side), 2.3 Mil (Face-Side)
- For adhesive strength see TDS
- Temperature rating of -40 to 350 °F
Applications
- For Converter Solutions, Transportation, Specialty Vehicle, Metalworking, Automotive, Oil and Gas, Medical, Signage, Military and Government, General Industrial, Appliance, Electronics Industries
