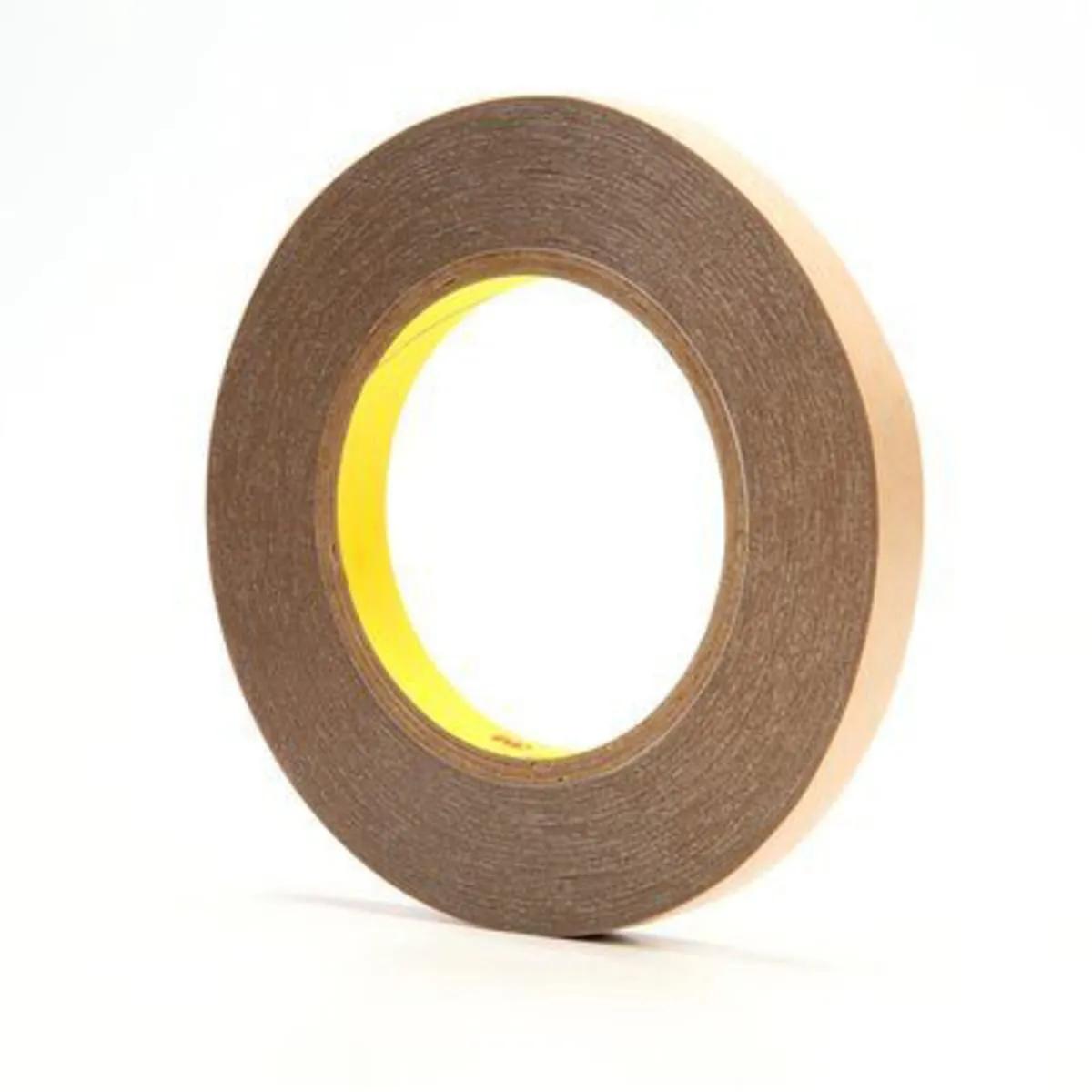

3M 9500PC Double-Coated Polyester Film Tape, 1/2" x 36 yd x 5.6 Mil, Clear/Tan Liner, 72/Case, MFR ID 7000123416
- EIS #3M9500PCX.5
- UPC #00021200677953
$21.74 / Roll
Pack: 72/Case
Available to Order
Min QTY1QTY Increment1
more info
Pack72/Case
Products You May Also Like
3M™ Double Coated Tape 9500PC is a 5 mil (0.14 mm) 350 high performance acrylic adhesive double coat with a thin polyester carrier film on a 58#, 4.5 mil unprinted, polycoated kraft paper liner. The adhesive excels on low surface energy (LSE) substrates and at high temps. - 3M double coated tape 9500PC has a moisture resistant liner which can withstand high humidity conditions with minimal cockling or wrinkling. High performance with good chemical resistance.
Features
- Adheres to powder coated surfaces and most plastics such as LED lens attachment in cellular phones and pagers
- High holding strength with short term heat resistance up to 350 °F
- Provides moisture stability and the liner reduces edge burr during hard tool die-cutting
- Adhesive thickness of 2.3 Mil (Back-Side), 2.3 Mil (Face-Side)
- For adhesive strength see TDS
- Temperature rating of -40 to 350 °F
Applications
- For Converter Solutions, Transportation, Specialty Vehicle, Metalworking, Automotive, Oil and Gas, Medical, Signage, Military and Government, General Industrial, Appliance, Electronics Industries
General Information
| Item Name | Film Tape |
| Trade Name | 3M |
| Series | 9500PC |
General Features
| Shelf Life | 24 Months |
| Storage Temperature | 21 deg C |
Design & Construction
| Adhesive Type | Acrylic |
| Carrier Material | Polyester |
| Color | Clear/Tan Liner |
| Liner Material | Polycoated Kraft Paper |
Performance Details
| Shear Strength | See TDS |
Physical Properties
| Adhesive Thickness | 2.3 |
| Carrier Thickness | 1.0 |
| Width | 0.5 Inch |
| Length | 36 Yard |
| Thickness | 5.6 |
Environmental Condition
| Resists | Chemical, Moisture, Temperature, UV, Plasticizer |
