Atkins and Pearce Suflex® Silverflex T&D Saturated Fiberglass Sleeving, 6 AWG, 250' Per Spool, Black, MFR ID SFLX06BFE
- MFR #4000006011
- EIS #SFLX06BFE
- Series #Suflex® Silverflex SFLX-T&D Sat
Requires Quote / Foot
In Stock | Ready to Ship
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
| Stock Status | |||||
|---|---|---|---|---|---|
 | 100 ft | 0.625 Inch | Black | $ / Foot more info | |
| 250 ft | 6 AWG | Black | $ / Foot more info |

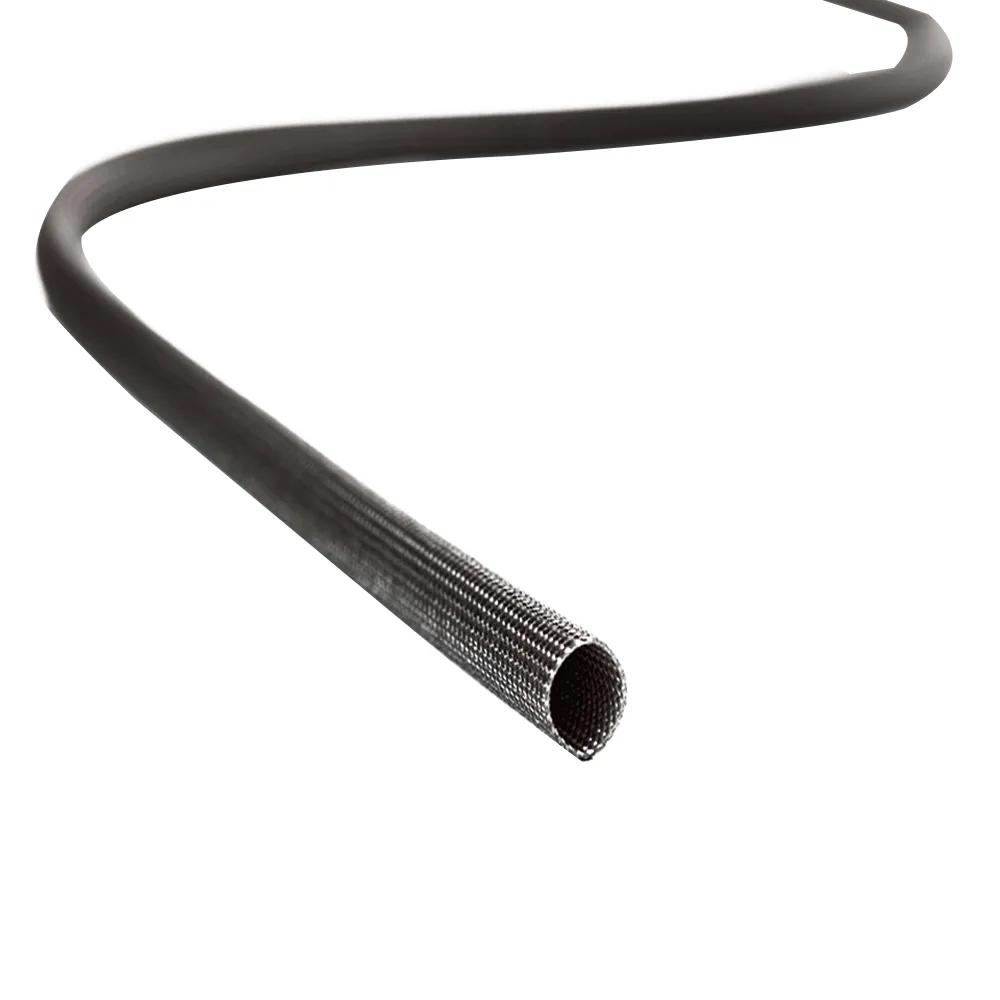

Suflex Silverflex is custom-braided designed specifically for applications where temperatures as high as 1200 °F are encountered. For low-voltage applications, especially those involving heat, Suflex Silverflex fiberglass sleeving provides a sturdy, long-lasting and inexpensive insulation. - Suflex Silverflex is a braided fiberglass sleeving which has been heat treated (natural) or heat treated and impregnated (T and D for treated and dyed) with an acrylic binder.
Features
- Maximum flexibility and temperature rating
- Available unsaturated, impregnated with an acrylic binder (TandD) or heavy wall (C3)
- Expandable, enabling it to be slipped over irregular profiles
- TandD can be supplied in a variety of colors by request
- Spool packing
- Dielectric Grade: C
- Length: 250 ft Per Spool
Applications
- It Used as Primary Insulation On Low Voltage Applications Such as Leads in Toasters, Hot Plates, Hand Irons, Coffee Makers, Range Units, Percolators, Deep-Fry Vessels and Other Appliances
General Information
| Item Name | Fiberglass Sleeving |
| Trade Name | Suflex® Silverflex |
| Series | Suflex® Silverflex SFLX-T&D Sat |
General Features
| Type | T&D Saturated |
Design & Construction
| Color | Black |
| Braid Type | Fiberglass |
| Grade | C |
| Insulation Material | Acrylic |
| NEMA Specification | NEMA TF-2 Type 3 |
Performance Details
| Abrasion Resistance | T&D Saturated |
Physical Properties
| Gauge | 6 AWG |
| Inside Diameter | 0.166 Inch |
| Length | 250 ft |
