Lectromat B-Stage Polyester Felt, MFR ID B-200
- MFR #B-200
- EIS #PH21-B-200
- Series #B-200
$9.42 - $1,219.11
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--| Stock Status | ||||
|---|---|---|---|---|
 | 0.05 Inch | 1.25 Inch | $ / Roll | |
| 0.05 Inch | 36 Inch | $ / Roll | |
| 0.05 Inch | 0.75 Inch | $ / Roll | |
| 0.05 Inch | 2 Inch | $ / Roll | |
| 0.05 Inch | 3 Inch | $ / Roll | |
| 0.05 Inch | 1 Inch | $ / Roll |

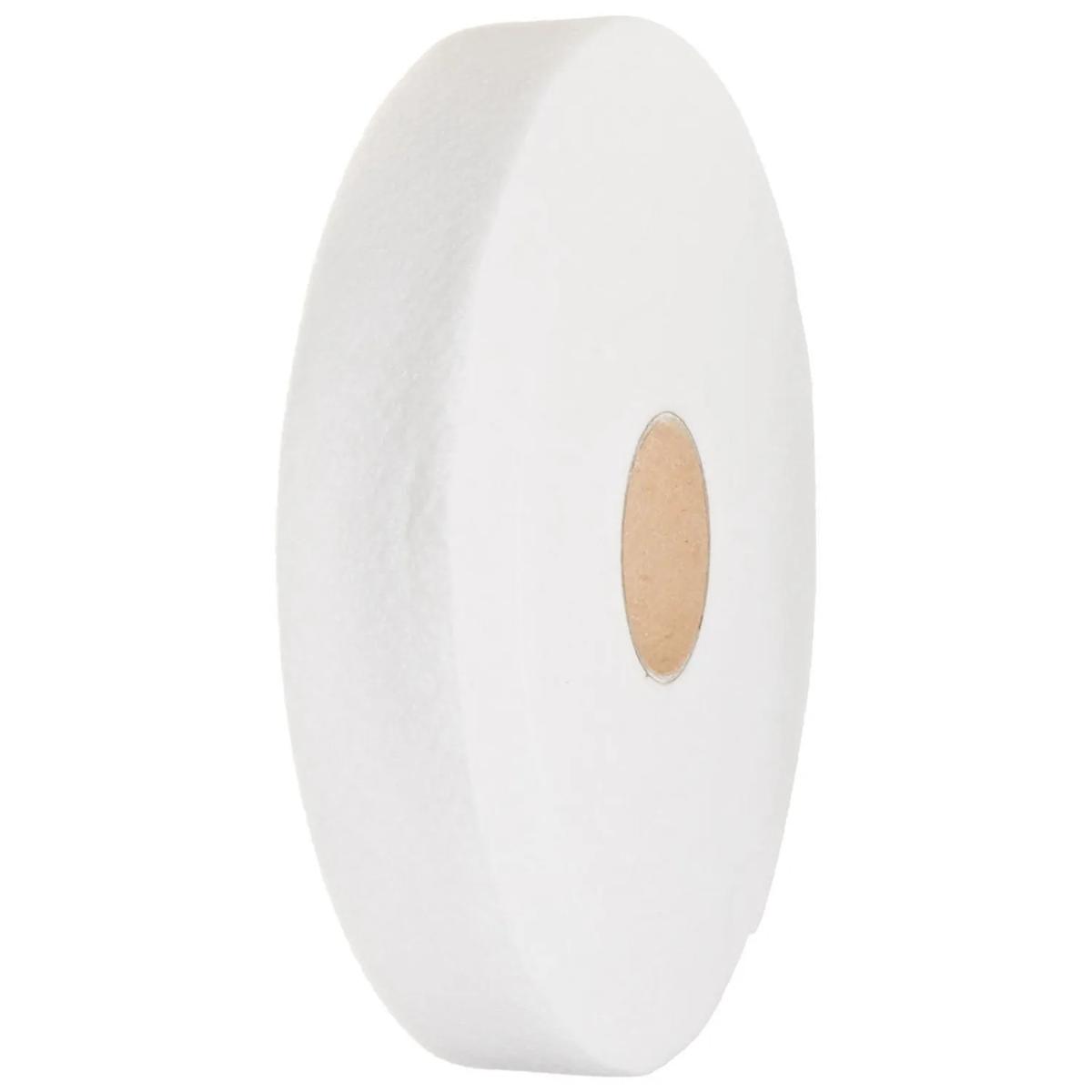

Lectromat Polyester fiber felts saturated with a B-stage epoxy resin. Due to the high 85% resin content, the resin flows readily under light pressure to form a dense structure with high dielectric strength. - Lectromat B-Stage Polyester Felt. Soft and pliable in uncured form they will conform to almost any shape. When cured with heat they will become hard and rigid and bond to almost any surface.
Features
- Conformable
- Flexible and pliable
- High dielectric strength
Applications
- Blocking End Turns and Blocking Coils to Surge Rings
- Sealing Coil Connections On Form Wound Coils
General Information
| Item Name | Felt |
| Series | B-200 |
Design & Construction
| Adhesive | B-Stage Epoxy Resin |
| Material | Polyester |
Performance Details
| Temperature Class | Class F |
Electrical Properties
| Dielectric Strength | 350 V/mil |
Physical Properties
| Length | 12 ft |
Documents
No Documents Found
