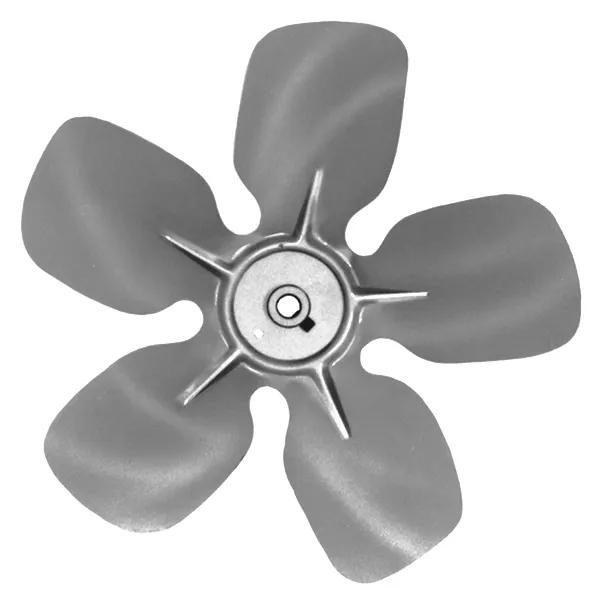

Fasco 5FR727-2 Fixed Hub Free Air Fan Blade, 450 cfm at 0", 5 Blades, 3450 rpm, 7" dia, Aluminum
- MFR #fascofixedhubfreeairfanblade
- EIS #MOT5FR727-2
$16.78 / Piece
Pack: 10/Pack
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack10/Pack
| Stock Status | |||||
|---|---|---|---|---|---|
 | 620 cfm | 0.29 Inch | 8 Inch | $ / Piece Pack: 10/Pack more info | |
| 450 cfm | 0.2 Inch | 7 Inch | $ / Piece Pack: 10/Pack more info | |
| 750 cfm | 0.29 Inch | 8 Inch | $ / Piece Pack: 10/Pack more info | |
| 740 cfm | 0.29 Inch | 10 Inch | $ / Piece Pack: 10/Pack more info | |
| 450 cfm | 0.3125 Inch | 7 Inch | $ / Piece Pack: 10/Pack more info | |
| 550 cfm | 0.3125 Inch | 10 Inch | $ / Piece Pack: 10/Pack more info |
Fasco 5FL-FXD HUB Series Fixed Hub Free Air Fan Blade, 22 deg Blade Pitch, 0.02 BHP at 0 Inch, 550 cfm at 0 Inch, 10 Inch dia, 5/17 Inch Hub Bore, Aluminum, 1725 rpm Maximum, 5 Blade, Counter-Clockwise Rotation. - Fasco-Fixed Hub-Fan.
Features
- 7 to 10 Inch diameters
- High quality aluminum blades
- CW fans have hub attached on discharge side
- CCW fans have hub attached on intake side
- Zinc and chromate coated steel hub
- 450 cfm at 0 Inch
Applications
- For Freezers, Heaters, Refrigerators
General Information
| Item Name | Fan Blade |
General Features
| Net Weight | 0.15 lb |
| Standards | UL Listed, CSA Certified |
| Type | Fixed Hub, Free Air |
Design & Construction
| Rotation | Clockwise |
| Material | Aluminum |
Performance Details
| CFM Rating | 450 cfm |
| Maximum Speed | 3450 rpm |
Electrical Properties
| Brake Horsepower | 0.05 BHP |
Physical Properties
| Blade Diameter | 7 Inch |
| Blade Pitch | 28 deg |
| Hub Bore Size | 0.3125 Inch |
| Number of Blades | 5 |
