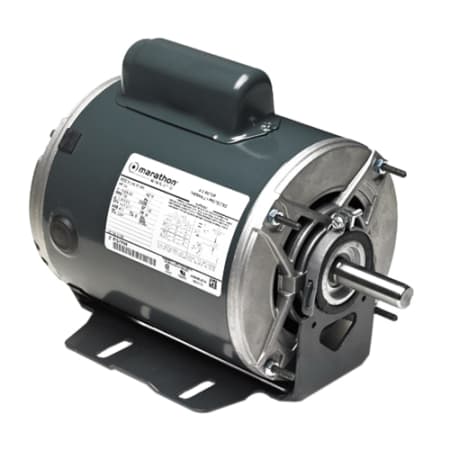

Marathon 230V 1-Phase Resilient Base Mount Drip proof (DP) Enclosure Fan And Blower Motor, MFR ID MA-115/230-RB-DP-FABM
- MFR #MA-115/230-RB-DP-FABM
- EIS #PH23-MA-115/230-RB-DP-FABM
$471.75 - $960.00
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--Products You May Also Like
| Stock Status | ||||
|---|---|---|---|---|
 | 1.5 HP | 1725 rpm | $ / Piece | |
 | 0.333 HP | 1725 rpm | $ / Piece | |
| 0.5 HP | 1800 rpm | $ / Piece |
Marathon 230V 1-Phase Resilient Base Mount Drip proof Enclosure Fan And Blower Motor. Automatic thermal protector - Marathon 230V 1-Phase Resilient Base Mount Drip proof Enclosure Fan And Blower Motor
Features
- Automatic thermal protector
General Information
| Item Name | Fan And Blower Motor |
General Features
| Standards | UL Listed, CSA Certified |
Design & Construction
| Bearing Type | Ball |
| Duty | Continous |
| Enclosure Type | Dripproof |
| Insulation Type | Class B |
| Mounting Type | Resilient Base |
| Shaft Position | Horizontal |
Electrical Properties
| Frequency Rating | 60 Hz |
| Phase | 1-Phase |
| Voltage Rating | 230 VAC |
Physical Properties
| Frame Size | 56 |
| Shaft Diameter | 0.625 Inch |
Environmental Condition
| Temperature Rating | 40 °C |
| Thermal Protection | Yes |
Documents
No Documents Found
