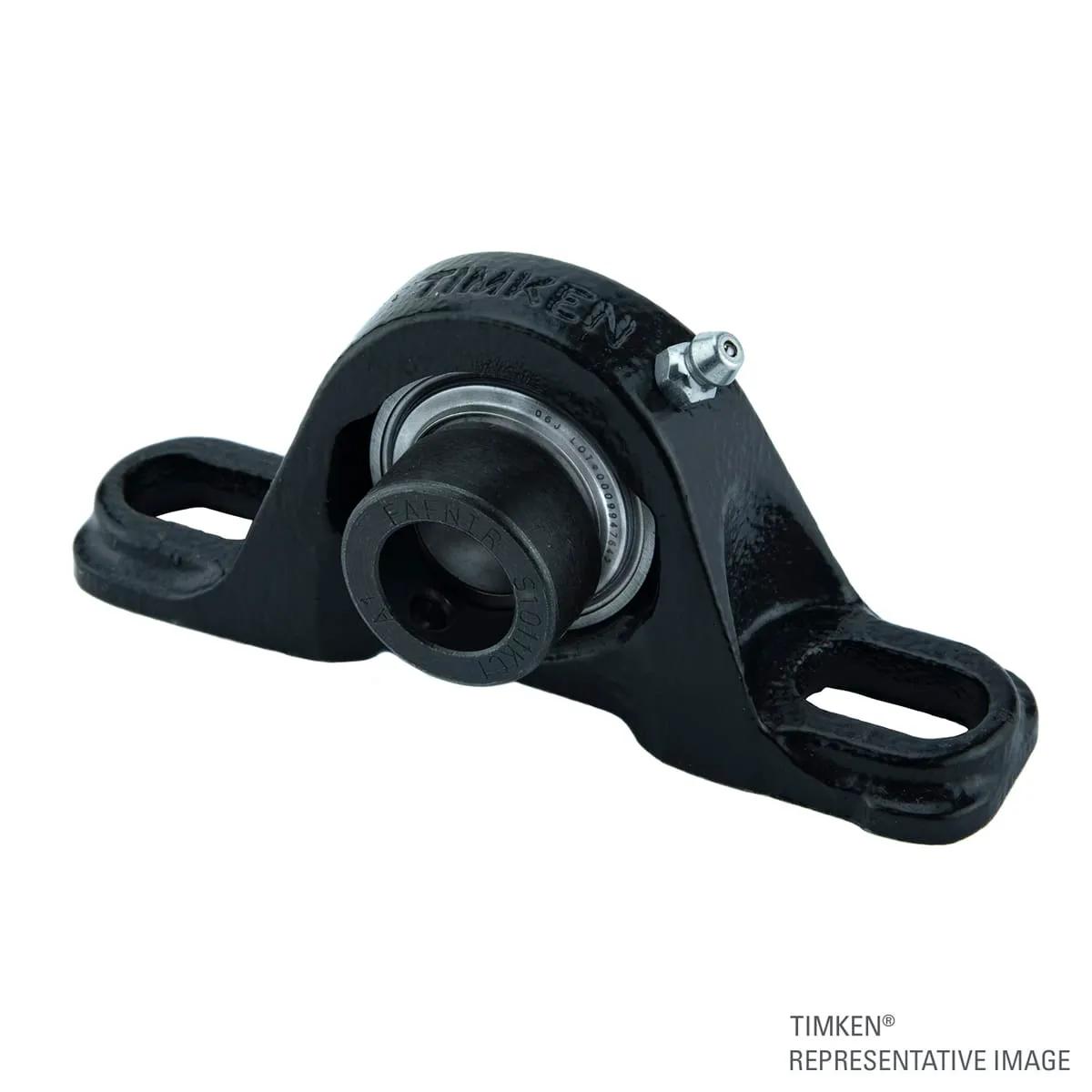

Timken SAL115/16T Cast Iron Pillow Block | 49.022 mm 1.93 in Bore | 90 mm 2.37 in OD | Eccentric, MFR ID TIM-SAL115/16
- EIS #SAL115/16T
- UPC #87796060753
$1,507.45 / Piece
Available to Order
Min QTY1QTY Increment1
more info
Products You May Also Like
Designed to maximize performance, Timken® Fafnir® ball bearing housedunits combine the bearing, housing, seal and locking system into one device for easy installation and operation. Timken Fafnir housed units feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line
Features
- Safeguard system performance and reduce costly wear and tear with superior contamination protection
- Multiple sealing and locking solutions, including eccentric and set screw, provide support for demanding applications
- Set screw solution features Shaft Guard Technology which eliminates shaft damage from set screws.
General Information
| Item Name | Fafnir Ball Housed Unit |
General Features
| Net Weight | 17.87 lb |
| Type | Mounted Ball Bearing |
Design & Construction
| Bore Type | Round |
| Cage Material | Steel |
| Cage Type | Welded Retainer |
| Material | Steel |
| Retainer Type | Welded Retainer |
| Rolling Element | Ball |
| Rolling Element Material | Steel |
Performance Details
| Dynamic Load Capacity | 7890 lb |
| Precision Class | ISO Normal/ABEC1 |
| Static Load Capacity | 5210 lb |
Physical Properties
| Bolt Size | 0.625984251968504 Inch | 15.9 mm |
| Outside Diameter | 2.37 Inch | 90 mm |
| Overall Height | 5.3759842519685 Inch | 136.55 mm |
| Overall Length | 10.6259842519685 Inch | 269.9 mm |
| Overall Width | 8.25 Inch | 209.55 mm |
| Radial Internal Clearance | P(C3) |
| Shaft Size | 1.93 Inch | 49.022 mm |
