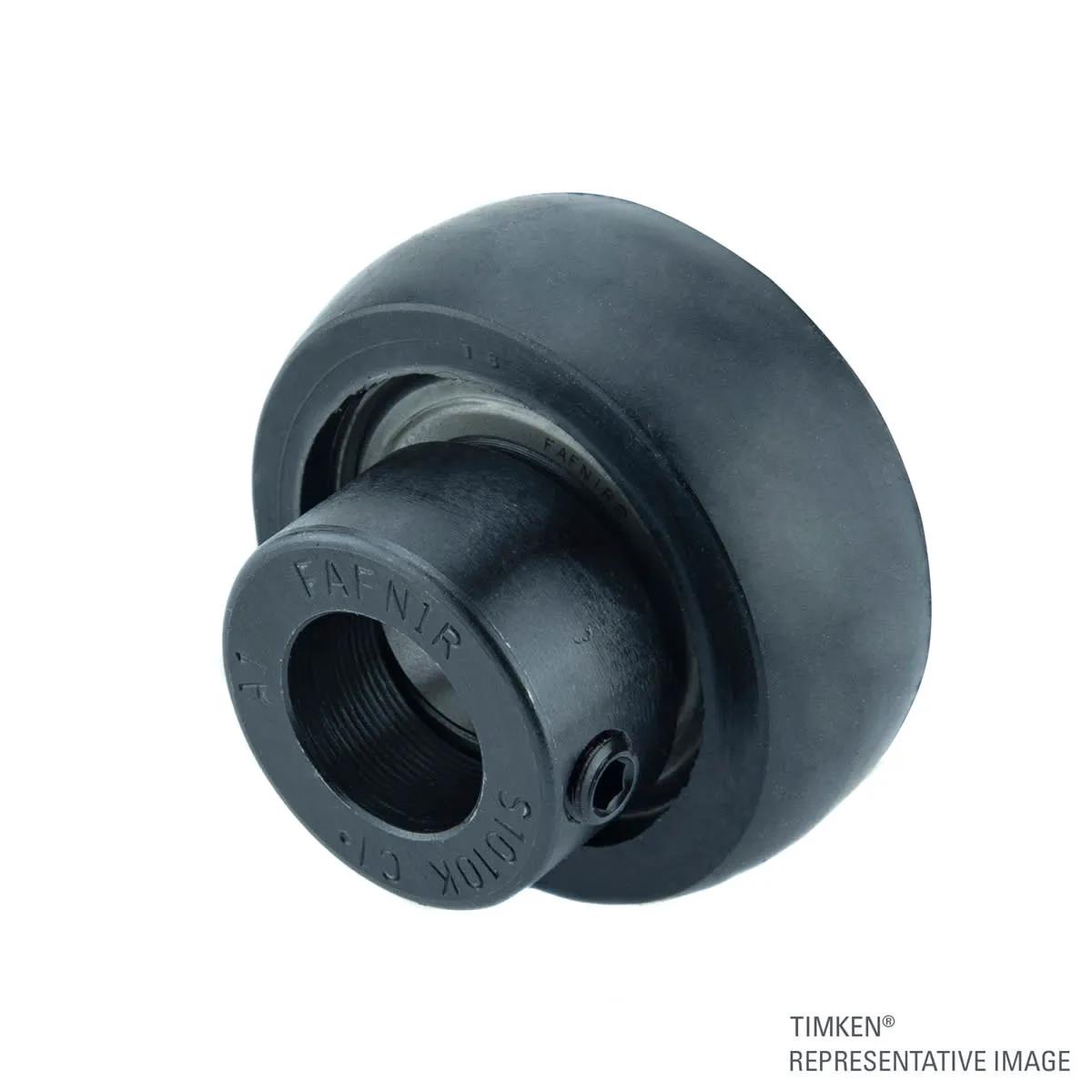

Timken RCR1T Rubber Ball Bearing Cartridge | 25.4 mm 1 in Bore | 52 mm 2.25 in OD | Eccentric, MFR ID TIM-RCR1
- MFR #RCR1
- EIS #RCR1T
- UPC #87796057432
$141.60 / Piece
Available to Order
Min QTY1QTY Increment1
more info
Designed to maximize performance, Timken® Fafnir® ball bearing inserts are designed for straight shafts and can be positioned without shoulders, locknuts or adapters. Timken® locking options include set screws, self-locking collars and concentric collars. Timken Fafnir ball bearing inserts feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line
General Information
| Item Name | Fafnir Ball Housed Unit |
General Features
| Net Weight | 0.9 lb |
Design & Construction
| Cage Material | Nylon |
| Cage Type | PRB Retainer |
| Material | Steel |
| Retainer Type | PRB Retainer |
| Rolling Element | Ball |
| Rolling Element Material | Steel |
Performance Details
| Dynamic Load Capacity | 3150 lb |
| Precision Class | ISO Normal/ABEC1 |
| Static Load Capacity | 1760 lb |
Physical Properties
| Outside Diameter | 2.25 Inch | 52 mm |
| Overall Height | 1.31102362204724 Inch | 33.3 mm |
| Overall Length | 1.31 Inch | 33.274 mm |
| Overall Width | 1.31 Inch | 33.274 mm |
| Radial Internal Clearance | P(C3) |
| Shaft Size | 1 Inch | 25.4 mm |
