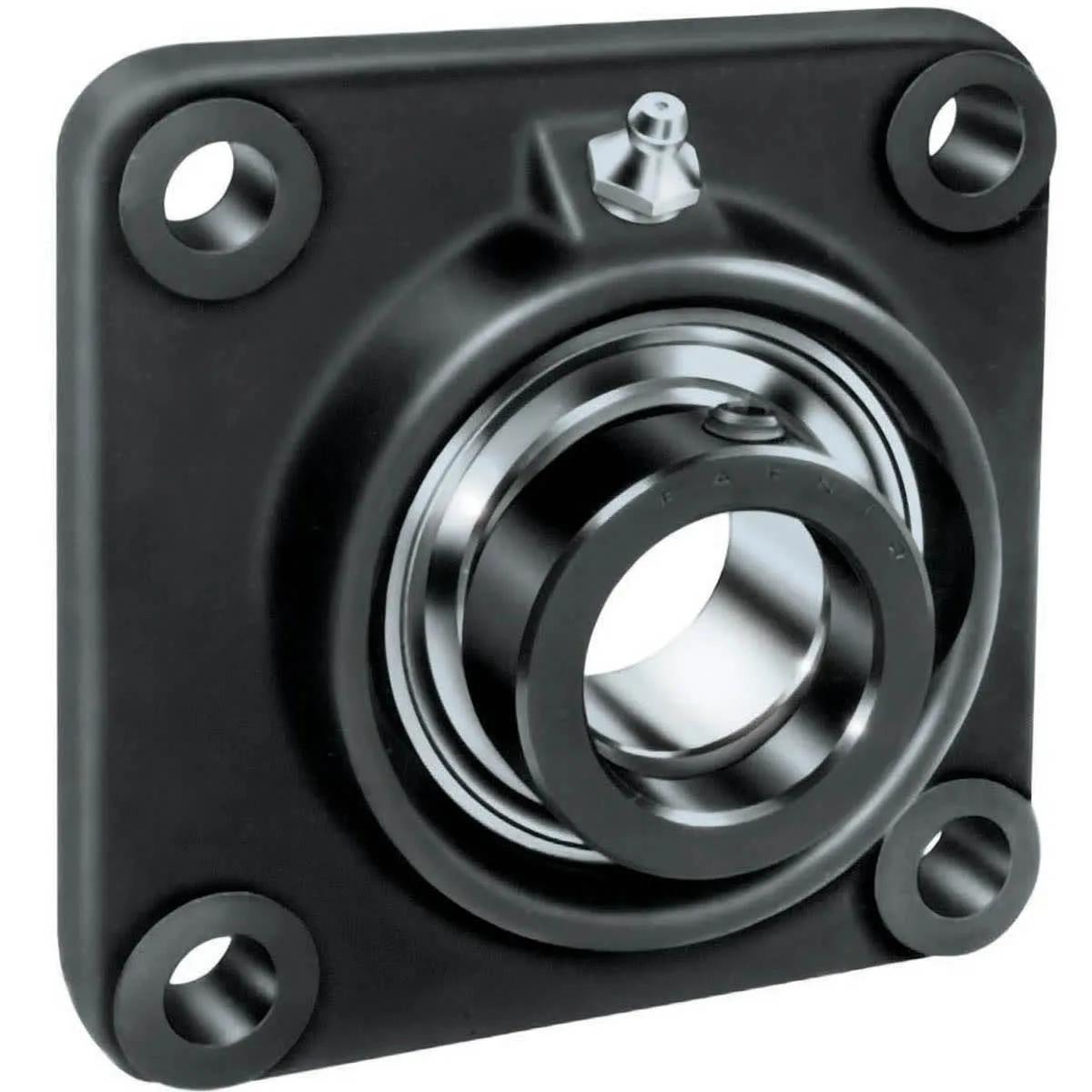

Timken® Fafnir® RCJ3/4T Four Bolt Ball Flange Unit | 19.06 mm 0.75 in Bore 46.99 mm 1.85 in OD, MFR ID TIM-RCJ3/4
- MFR #RCJ 3/4
- EIS #RCJ3/4T
- UPC #87796056732
$135.87 / Piece
Available to Order
Min QTY1QTY Increment1
more info
Designed to maximize performance, Timken® Fafnir® ball bearing housedunits combine the bearing, housing, seal and locking system into one device for easy installation and operation. Timken Fafnir housed units feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line
Features
- Each unit comes assembled and ready for mounting
- These are wide-inner-ring ball bearings, self-aligning B-types, which compensate for shaft misalignment
- The units are factory prelubricated, but a grease fitting is provided for relubrication if required
- The units are supplied with self-locking collars
- The RCJ flange cartridge is equipped with G-KRRB (R-seal) wide-inner-ring ball bearings
General Information
| Item Name | Fafnir Ball Housed Unit |
General Features
| Net Weight | 21.5 lb |
| Type | Wide Inner Ring Ball Bearing Insert |
Design & Construction
| Bore Type | Round |
| Cage Type | One Piece Molded Nylon |
| Material | Steel |
| Retainer Material | Nylon |
| Retainer Type | One Piece Molded Nylon |
| Rolling Element | Ball |
| Rolling Element Material | Steel |
Performance Details
| Dynamic Load Capacity | 3190 lb |
| Precision Class | ISO Normal/ABEC1 |
| Static Load Capacity | 1480 lb |
Physical Properties
| Bore Diameter | 0.75025 Inch | 19.05635 mm |
| Outside Diameter | 1.85017 Inch | 46.994318 mm |
| Overall Height | 1.828 Inch | 46.4312 mm |
| Overall Length | 3.38 Inch | 85.852 mm |
| Overall Width | 3.380 Inch | 85.852 mm |
| Radial Internal Clearance | P(C3) |
