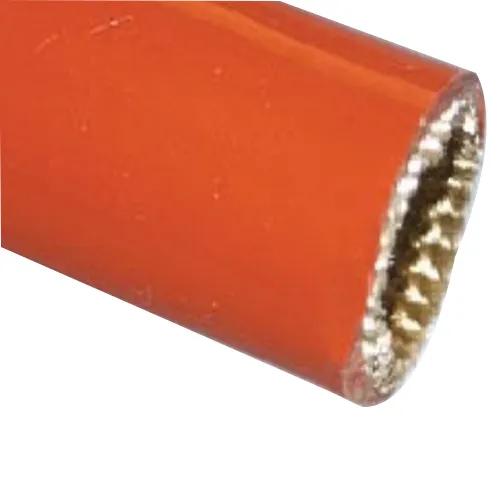

Atkins and Pearce Ben-Har® 1151-HW Class H Extruded Silicone Rubber Coated Sleeving
- MFR #Ben-Har® 1151-HW
- EIS #PH21-Ben-Har 1151-HW
- Series #Ben-Har® 1151-HW
$141.04 - $1,523.74
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--Products You May Also Like
| Stock Status | ||||
|---|---|---|---|---|
 | 125 ft | 2 AWG | $ / Foot more info | |
| 50 ft | 0.5 Inch | $ / Foot more info | |
| 250 ft | 6 AWG | $ / Foot more info | |
| 50 ft | 0.437 Inch | $ / Foot more info | |
| 50 ft | 0.875 Inch | $ / Foot more info | |
| 125 ft | 0 AWG | $ / Foot more info |
Through its unique extrusion process, Ben-Har 1151-HW has unique properties unequaled by ordinary dip coated sleevings. The silicone rubber coating is a tough and integral part of the sleeving, giving Ben-Har 1151-HW unsurpassed heat/flex life and protection against production assembly hazards. - The coating's formulation design allows the inside diameter of the sleeving to expand over wire sizes larger than its original diameter without coating fracture or end fray, providing the "snug fit" so essential to preventing vibration damage.
Features
- Low temperature brittle point below -85 °C
- Compatible with common class H insulating varnishes
- Excellent heat/flex life and protection against production assembly hazards
- Heavier wall thickness than that of traditional silicone sleevings found in the industry, providing excellent resistance to dielectric breakdown caused by operational stresses
Applications
- Extensively for Terminal Insulation and Protection, as Well as in Dry-Type Transformer Applications
General Information
| Item Name | Extruded Silicone Rubber Coated Sleeving |
| Trade Name | Ben-Har® |
| Series | Ben-Har® 1151-HW |
General Features
| Type | Heavy Wall |
Design & Construction
| Braid Type | Fiberglass |
| Color | Red Iron Oxide |
| Insulation Material | Silicone Rubber |
| Insulation Type | Class H |
| Insulation Coating Type | Silicone |
| NEMA Specification | NEMA TF-1 Type 5 |
Electrical Properties
| Dielectric Strength | 15 kV |
