GE M9526 Extra Severe Duty Vertical Pump Motor, 40 HP, 1800 rpm, 460V, 324TC Frame, TEFC, W6, Shaft Down With C-Face Flange Mount

Name: GE M9526 Extra Severe Duty Vertical Pump Motor, 40 HP, 1800 rpm, 460V, 324TC Frame, TEFC, W6, Shaft Down With C-Face Flange Mount
Brand: GE MOTORS
SKU: M9526
Price: 9077.67 USD
Availability: OutOfStock

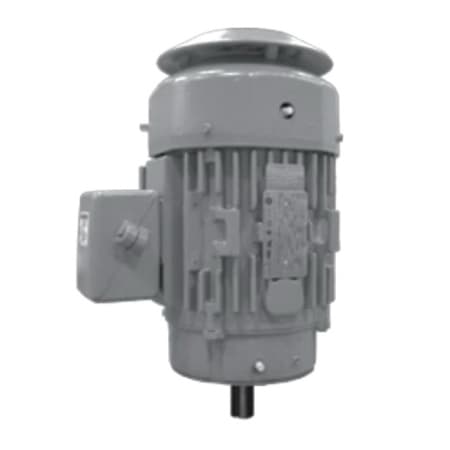

The image shown is representative of the product family and may not specifically be the individual item.

EIS #:M9526

Out of Stock

Min Qty:1

|

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov

more info

$9,077.67 / Piece

QTY

Min Qty:1

|

Qty Increment:1

more info

Attributes
Features

Attributes

General Information

Item NameExtra Severe Duty Vertical Pump Motor

General Features

StandardsUL Listed, CSA Certified

Net Weight670 lb

Design & Construction

Frame Type324TC

KVA CodeG

Performance Details

Speed Rating1800 rpm

Full Load Efficiency94.1%

Torque Rating118 lb-ft

Electrical Properties

Full Load Ampere50.7 A

Full Load Power Factor78.5%

HP Rating40 HP

Locked Rotor Ampere290 A

Physical Properties

Dimensions33 Inch L x 17 Inch W

Frame Size324.0

Number of Poles4

Shaft Diameter2.125 Inch

Shaft Length5 Inch

Weight670 lb
