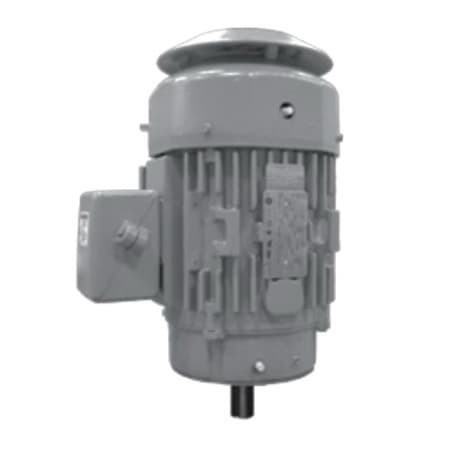

GE M9402 Extra Severe Duty Vertical Pump Motor, 1-1/2 HP, 3600 rpm, 460V, 143TC Frame, TEFC, W6, Shaft Down With C-Face Flange Mount
EIS #:M9402
EIS #:M9402
Available to Order
Min Qty:1
|Qty Increment:1
$1,730.72 / Piece
Min Qty:1
|Qty Increment:1
- Attributes
- Features
Attributes
General Information
Item NameExtra Severe Duty Vertical Pump Motor
General Features
StandardsUL Listed, CSA Certified, IEEE 841, IEEE 45 Marine Duty Specified
Net Weight43 lb
Design & Construction
Frame Type143TC
KVA CodeM
Performance Details
Speed Rating3600 rpm
Full Load Efficiency84%
Torque Rating2.2 lb-ft
Electrical Properties
Frequency Rating60 Hz
Full Load Ampere2.2 A
Full Load Power Factor77.5%
HP Rating1.5 HP
Locked Rotor Ampere20 A
Physical Properties
Dimensions15.77 Inch L x 7.25 Inch W
Frame Size143.0
Number of Poles2
Shaft Diameter0.875 Inch
Shaft Length1.9 Inch
Weight43 lb
Features
- IE3 premium efficiency
- Inverter duty capability
- Gegard2400� insulation system
- Six Star Bearing System�
- Low vibration/provisions for monitoring
- 4-point cast-in lifting lugs
- Extended grease fittings
- Cast iron bearing caps, fan cover, conduit box, end shield, frame, neoprene rubber gasket, hex head zinc plated fasteners, 316 stainless steel nameplate
- Frequency Rating: 50/60�Hz
- Torque Rating: 2.2 lb-ft (Full Load), 5.6 lb-ft (Break Down), 3.9 lb-ft (Locked Rotor)
