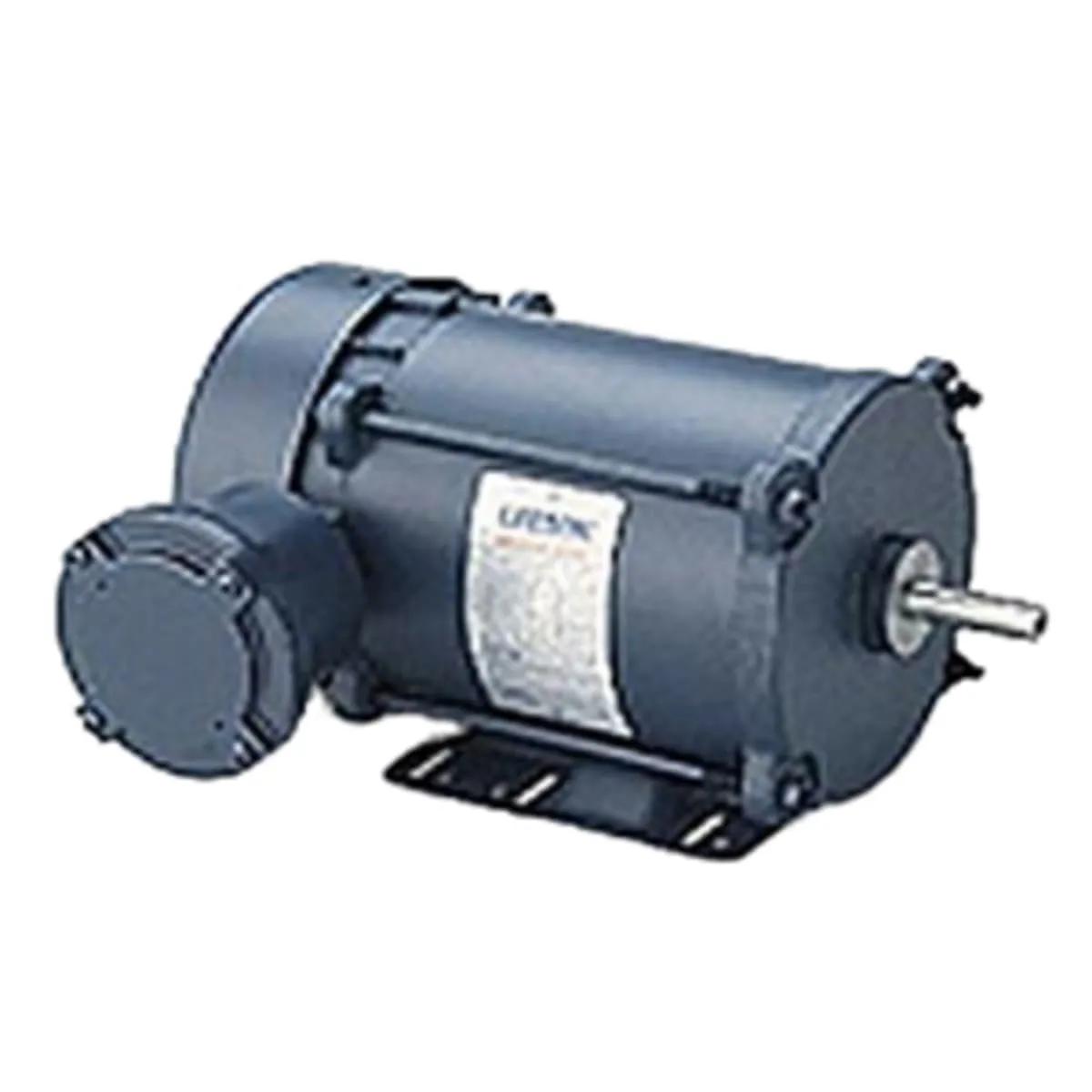

The image shown is representative of the product family and may not specifically be the individual item.
0

Leeson 230V 1-Phase C-Face with Rigid Base Mount Explosion-Proof Fan-Cooled (EPFC) Enclosure Selective Counter-Clockwise Explosion Proof AC Motor with Automatic Overload Protector, MFR ID LE-115/230-CFWRGB-EPFC-EPACM

  • MFR #LE-115/230-CFWRGB-EPFC-EPACM
  • EIS #PH23-LE-115/230-CFWRGB-EPFC-EPACM
$671.38 - $2,644.14
Refine your product below or compare all choices in the
Min QTY1QTY Increment1more infoPack--

Leeson 230V 1-Phase C-Face with Rigid Base Mount Explosion-Proof Fan-Cooled Enclosure Selective Counter-Clockwise Explosion Proof AC Motor. Single and three phase motors, Double shielded ball bearings, Automatic overload protection or thermostat protected, Includes explosion proof conduit box, NEMA 1.0 or 1.15 service factor - Leeson 230V 1-Phase C-Face with Rigid Base Mount Explosion-Proof Fan-Cooled Enclosure Selective Counter-Clockwise Explosion Proof AC Motor

General Information

Item NameExplosion Proof AC Motor

General Features

StandardsUL Listed, CSA Certified, Division I, Division II, Class I, Groups C And D-Class II, Groups F And G

Design & Construction

Bearing TypeBall
ConstructionRolled Steel
DutyContinous
Enclosure TypeExplosion-Proof Fan-Cooled
Insulation TypeClass B
Mounting TypeC-Face with Rigid Base
RotationSelective Counter-Clockwise
Shaft PositionHorizontal

Performance Details

Overload ProtectorAutomatic

Electrical Properties

Frequency Rating60 Hz
Phase1-Phase
Service Factor1
Voltage Rating230 VAC

Physical Properties

Frame Size56.0
Shaft Diameter0.625 Inch

Environmental Condition

Thermal ProtectionYes

Supporting Information

IncludesConduit Box
