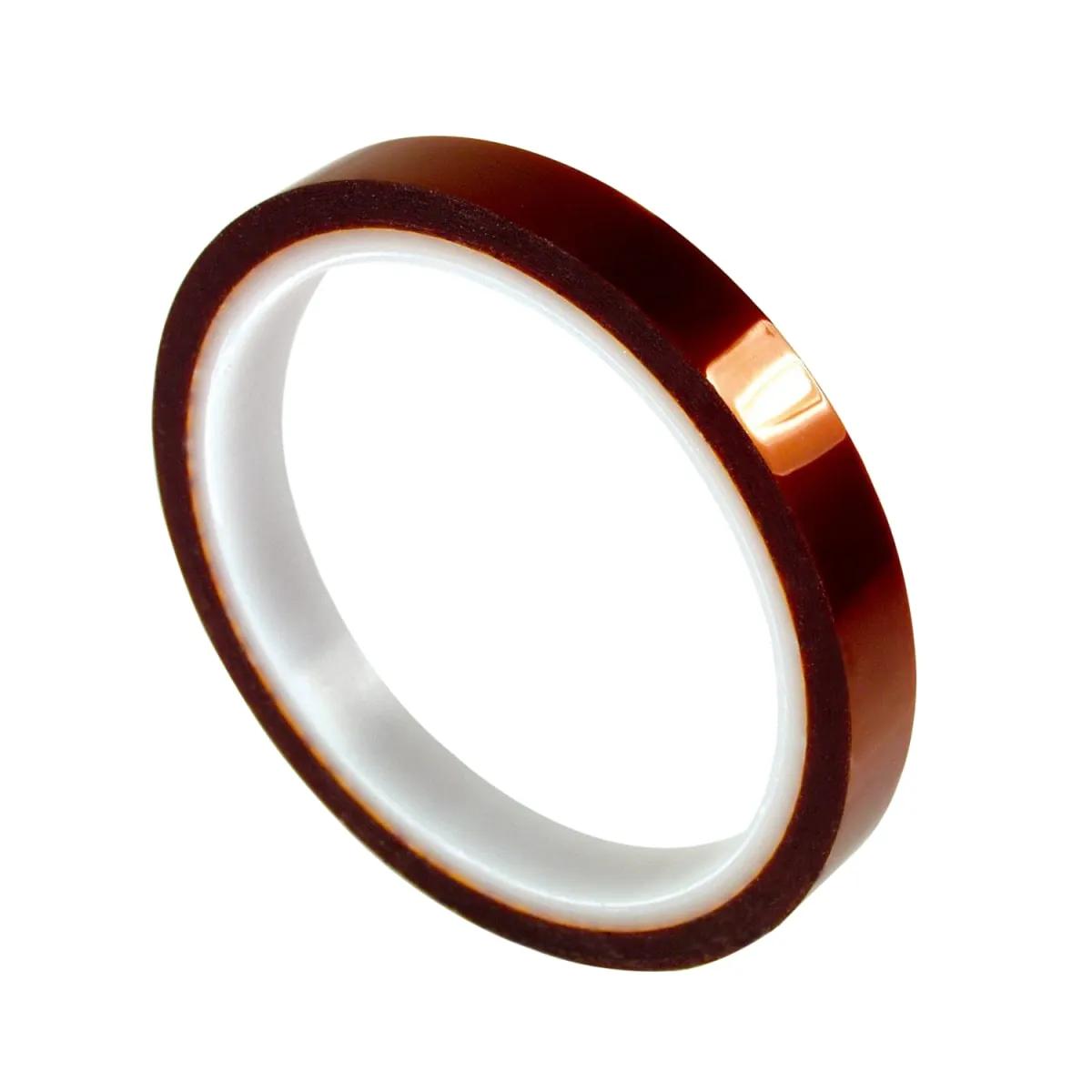

3M™ Polyimide Film Electrical Tape 92, Amber, Silicone Adhesive, 1 mil film

3M™ Polyimide Film Electrical Tape 92, Amber, Silicone Adhesive, 1 mil film

MFR #:92

EIS #:PH22-92

MFR #:92

EIS #:PH22-92

0
0

3M™ Tape 92 is a high performance, electrical tape with a polyimide film backing. This tape is designed to provide thick insulation for coils, harnesses and capacitors. The flame retardant tape withstands a temperature range of 32 to 356 °F (0 to 180 °C).


3M™ Polyimide Film Electrical Tape 92 is used as a solder masking tape in a printed circuit board assembly. The tape has a smooth and uniform thermosetting silicone adhesive coating that offers good adherence while eliminating bare spots and lumps. UL Listed and RoHS 2011/65/EU Compliant.

$8.33
 - $253.41
Select from the options below
0
0

3M™ Tape 92 is a high performance, electrical tape with a polyimide film backing. This tape is designed to provide thick insulation for coils, harnesses and capacitors. The flame retardant tape withstands a temperature range of 32 to 356 °F (0 to 180 °C).


3M™ Polyimide Film Electrical Tape 92 is used as a solder masking tape in a printed circuit board assembly. The tape has a smooth and uniform thermosetting silicone adhesive coating that offers good adherence while eliminating bare spots and lumps. UL Listed and RoHS 2011/65/EU Compliant.

Product Options

Showing 8 out of 41 options
Width
3 Inch
EIS Part #
3M92X3
$ / Roll
Width
2.5 Inch
EIS Part #
3M92X2.5
$ / Roll
The image shown is representative of the product family and may not specifically be the individual item.  3M™ Tape 92 is a high performance, electrical tape with a polyimide film backing. This tape is designed to provide thick insulation for coils, har…
Width
2 Inch
EIS Part #
3M92X2
$ / Roll
Width
1.625 Inch
EIS Part #
3M92X1.625
$ / Roll
Width
1.5 Inch
EIS Part #
3M92X1.5
$ / Roll
Width
1.35 Inch
EIS Part #
3M92X1.35
$ / Roll
Width
1.25 Inch
EIS Part #
3M92X1.25
$ / Roll
Width
1.175 Inch
EIS Part #
3M92X1.175
$ / Roll

Attributes

General Information
Item NameElectrical Tape
Trade Name3M
Series92
General Features
Shelf Life60 Months
StandardsRoHS 2011/65/EU, UL 510, UL Recognized
Storage Temperature10 to 27 °C
TypePrintable
Design & Construction
Adhesive TypeThermosetting Silicone
Applicable MaterialSteel
Backing MaterialPolyimide
ColorAmber
ShapeRoll
Performance Details
Adhesive Strength25 oz/Inch
Breaking Strength30 lb/Inch
Flame RetardantYes
Tensile Strength30 lb/Inch
Electrical Properties
Dielectric Strength7500 V
Physical Properties
Core Size3 Inch
Elongation55%
Length36 Yard
Thickness3 mil
Width-
Environmental Condition
ResistsPuncture, Solvent
Temperature Rating180 °C
