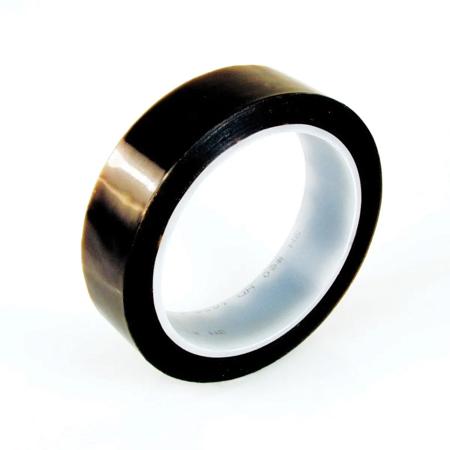

3M 60 PTFE Electrical Tape, 1/2" x 36 yd x 4 Mil, Translucent, MFR ID 7000132181
- MFR #:7000132181
- EIS #:3M60X.5
- UPC #:00054007275428
- MFR #:7000132181
- EIS #:3M60X.5
- UPC #:00054007275428
In Stock | Ready to Ship
Min Qty:1
|Qty Increment:1
3M™ Tape 60 has a thermosetting, silicon adhesive that provides optimized adherence. This PTFE tape is suitable for minimum shrinkage applications over a wide range of temperatures. UL Listed and RoHS 2011/65/EU Compliant.
3M™ PTFE Film Electrical Tape 60 is a PTFE film backed electrical tape. This flame retardant tape is suitable for use on high temperature coils, wire harnesses and capacitors where high dielectric and breaking strength are required. This tape is 600V rated and withstands a temperature range of 32 to 356 °F (0 to 180 °C).
$107.23 / Roll
Min Qty:1
|Qty Increment:1
3M™ Tape 60 has a thermosetting, silicon adhesive that provides optimized adherence. This PTFE tape is suitable for minimum shrinkage applications over a wide range of temperatures. UL Listed and RoHS 2011/65/EU Compliant.
3M™ PTFE Film Electrical Tape 60 is a PTFE film backed electrical tape. This flame retardant tape is suitable for use on high temperature coils, wire harnesses and capacitors where high dielectric and breaking strength are required. This tape is 600V rated and withstands a temperature range of 32 to 356 °F (0 to 180 °C).
Product Options
Showing 8 out of 17 options
 | Width: 2.25 Inch | EIS Part #: 3M60X2.25 | $ / Roll | |
| Width: 2 Inch | EIS Part #: 3M60X2 | $ / Roll | |
| Width: 1.5 Inch | EIS Part #: 3M60X1.5 | $ / Roll | |
| Width: 1.25 Inch | EIS Part #: 3M60X1.25 | $ / Roll | |
 | Width: 1 Inch | EIS Part #: 3M60X1 | $ / Roll | |
| Width: 0.875 Inch | EIS Part #: 3M60X.875 | $ / Roll | |
| Width: 0.75 Inch | EIS Part #: 3M60X.75 | $ / Roll | |
| Width: 0.625 Inch | EIS Part #: 3M60X.625 | $ / Roll |
- Attributes
- Applications
- Features
Attributes
General Information
Item NameElectrical Tape
Trade Name3M
Series60
General Features
Shelf Life60 Months
Design & Construction
Adhesive TypeThermosetting Silicone
Applicable MaterialSteel
Backing MaterialPTFE
ColorTranslucent
Performance Details
Adhesive Strength30 oz/Inch
Breaking Strength20 lb/Inch
Flame RetardantYes
Electrical Properties
Dielectric Strength9500 V
Physical Properties
Core Size3 Inch
Elongation200%
Width0.5 Inch
Length36 Yard
Thickness4 mil
Environmental Condition
Temperature Rating180 °C
Supporting Information
Applicable MaterialsSteel
Applications
- For High Temperature Coils, Capacitors and Wire Harnesses
Features
- Acetate cloth tape offering excellent conformability in coil wrapping applications up to 105 °C
- Excellent absorption of electrical insulating resins and varnishes
- Aggressive rubber resin adhesive
- Resin and varnish absorptive black acetate cloth backing
- Electrical tape has consistent physical and electrical properties over a broad temperature range
- 10^6 Mohm insulation resistance
- Temperature rating of 0 to 180 °C
