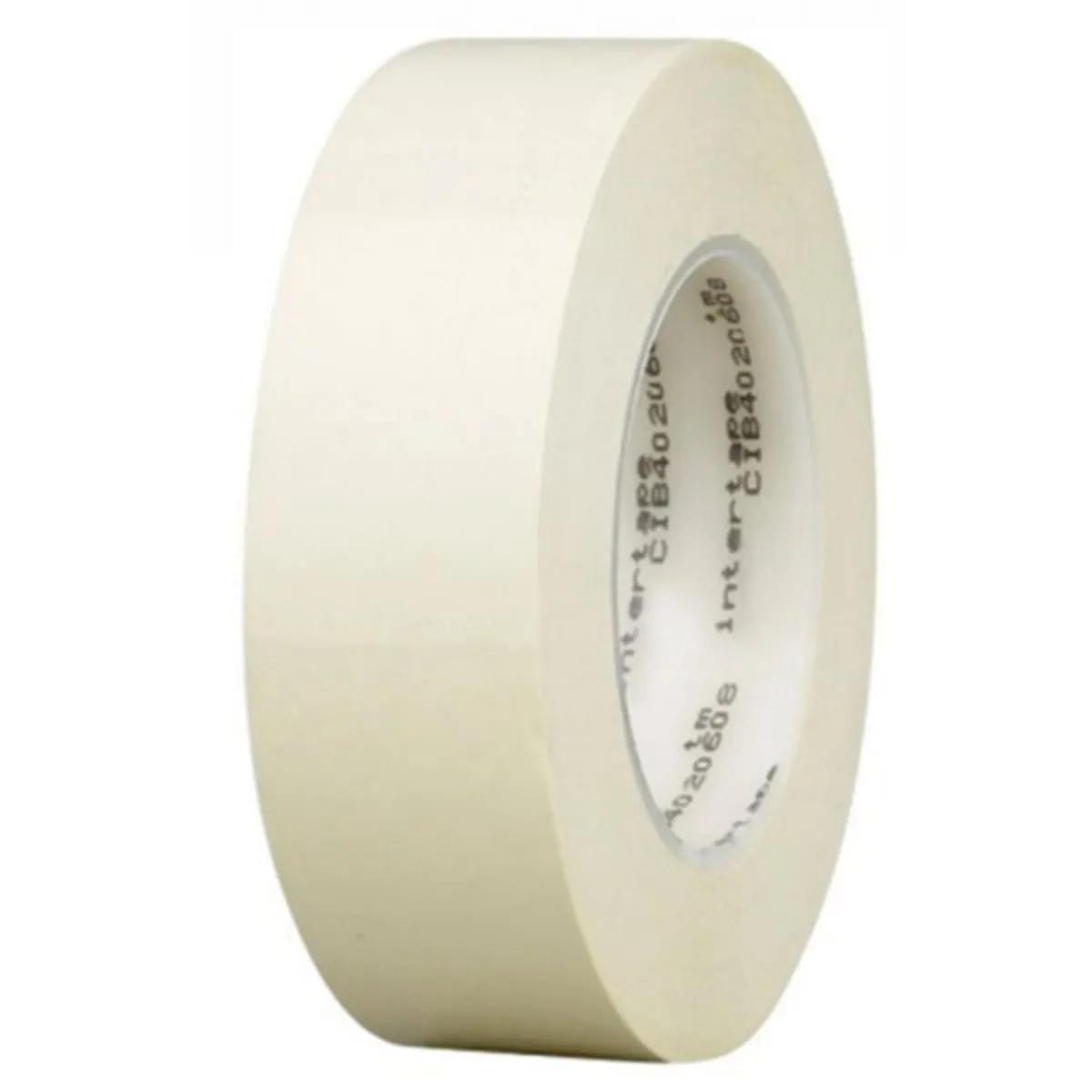

Intertape 51580 Polyester/Non-Woven Electrical Tape
- MFR #51580
- EIS #PH22-51580
$42.60
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--Products You May Also Like
| Stock Status | ||||
|---|---|---|---|---|
 | 72 Yard | 0.125 Inch | $ / Roll | |
| 72 Yard | 0.875 Inch | $ / Roll | |
| 90 Yard | 0.75 Inch | $ / Roll | |
| 72 Yard | 0.5 Inch | $ / Roll | |
| 90 Yard | 0.875 Inch | $ / Roll | |
| 72 Yard | 0.75 Inch | $ / Roll |
IPG polyester laminates provide excellent bulk and stiffness in an easy-to-tear product. Has a 10^5 Mohm insulation resistance. Polyester/non-woven laminates are puncture resistant and highly conformable. They're available with acrylic adhesives for performance in higher temperature environments. - This tape can be used for most applications, which require a combination of flexibility, high puncture resistance and excellent electrical insulating properties and corrosion resistance. After thermosetting, the tape exhibits excellent resistance to solvents and chemicals.
Features
- Excellent storage stability
- Excellent solvent resistance
Applications
- For Coil and Transformer Wrapping, Anchoring, Harnessing, Outer-Wrap for Coils
General Information
| Item Name | Electrical Tape |
| Trade Name | Inter Tape |
| Series | 51580 |
General Features
| Type | Plastic Core |
| Shelf Life | 24 Months |
Design & Construction
| Adhesive Type | Thermosetting Rubber |
| Applicable Material | Steel |
| Backing Material | Polyester/Non-Woven |
| Color | Natural |
Performance Details
| Adhesive Strength | 50 oz/Inch |
| Flame Retardant | Yes |
| Tensile Strength | 45 lb/Inch |
Electrical Properties
| Dielectric Strength | 5 kV |
Physical Properties
| Core Size | 3 Inch |
| Elongation | 25% |
| Width | - |
| Length | 72.0 |
| Thickness | 5 mil |
Environmental Condition
| Resists | Solvent, Moisture |
| Temperature Rating | 130 °C |
Supporting Information
| Applicable Materials | Steel |
Documents
No Documents Found
