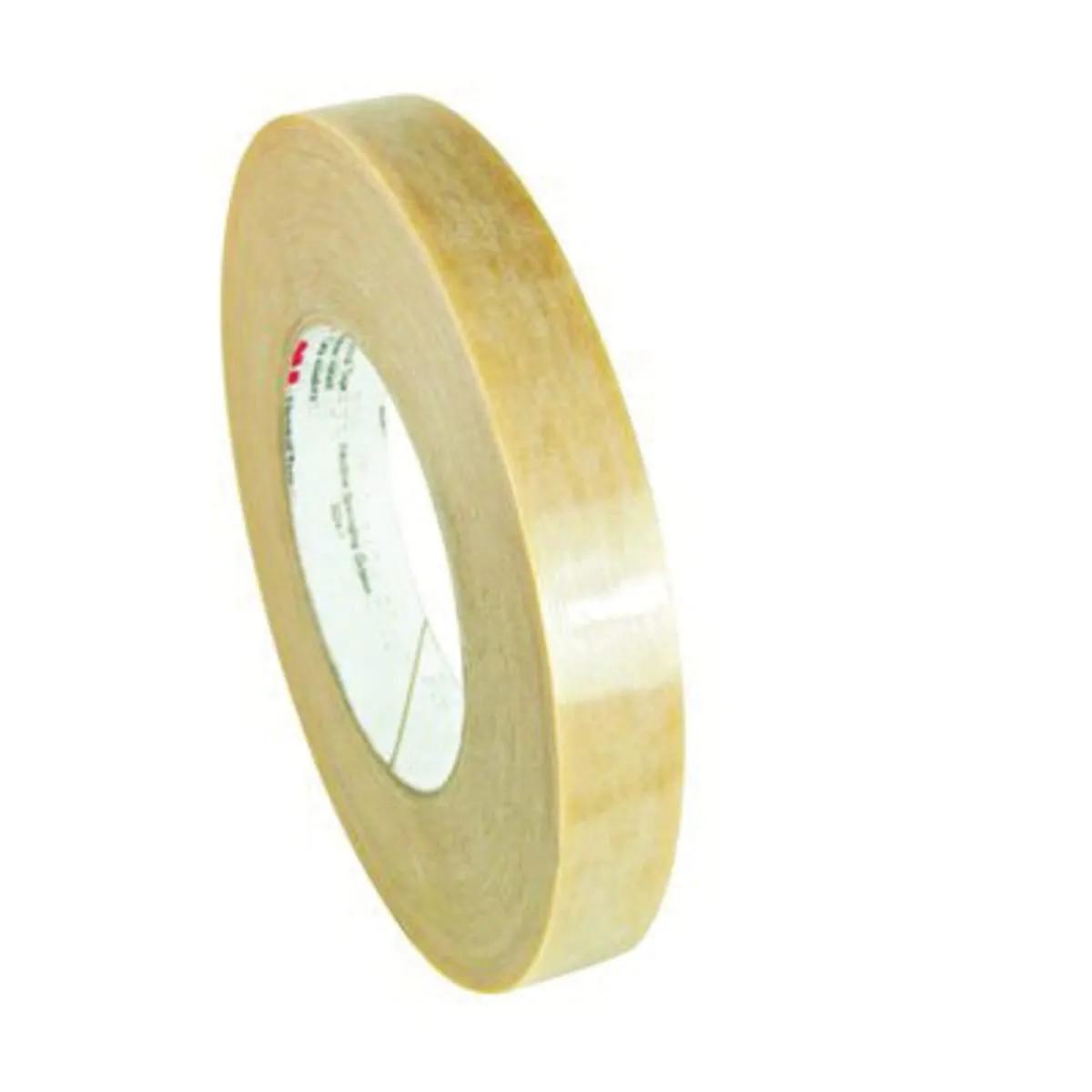

The image shown is representative of the product family and may not specifically be the individual item.
0

3M 46 Polyester/Glass Filament Electrical Tape, 1-1/2" x 60 yd x 7 Mil, Tan, 36/Case, MFR ID 46X1.5

  • MFR #46
  • EIS #3M46X1.5
$77.60 / Roll
Pack: 36/Case
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack36/Case
PROP_65_CANCER
WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov

3M electrical tape 46 is a 7 Mil thick electrical tape with rubber adhesive. This tape is ideal for anchoring lead wires to banding coils and for end-turn taping. This tape is 600V-rated and withstands a temperature of 130 °C. 3M 46 electrical tape is a polyester film/glass filament tape coated with a thermosetting, pressure sensitive rubber adhesive system. The polyester film/glass backing has excellent physical and electrical characteristics. This tape is especially suited for such applications as lead anchoring and banding of coils where high edge tear resistance and low stretch under application tension are needed.

General Information

Item NameElectrical Tape
Trade Name3M

Series46

General Features

TypePaper Core

Design & Construction

Adhesive TypeThermosetting Rubber
Backing MaterialPolyester/Glass Filament
ColorTan

Performance Details

Adhesive Strength50 oz/Inch
Breaking Strength275 lb/Inch

Electrical Properties

Dielectric Strength5500 V

Physical Properties

Core Size3 Inch
Elongation50%
Length60 Yard
Thickness7 Mil
Width1.5 Inch

Environmental Condition

Temperature Rating130 °C

Documents

Product Selector Guide
