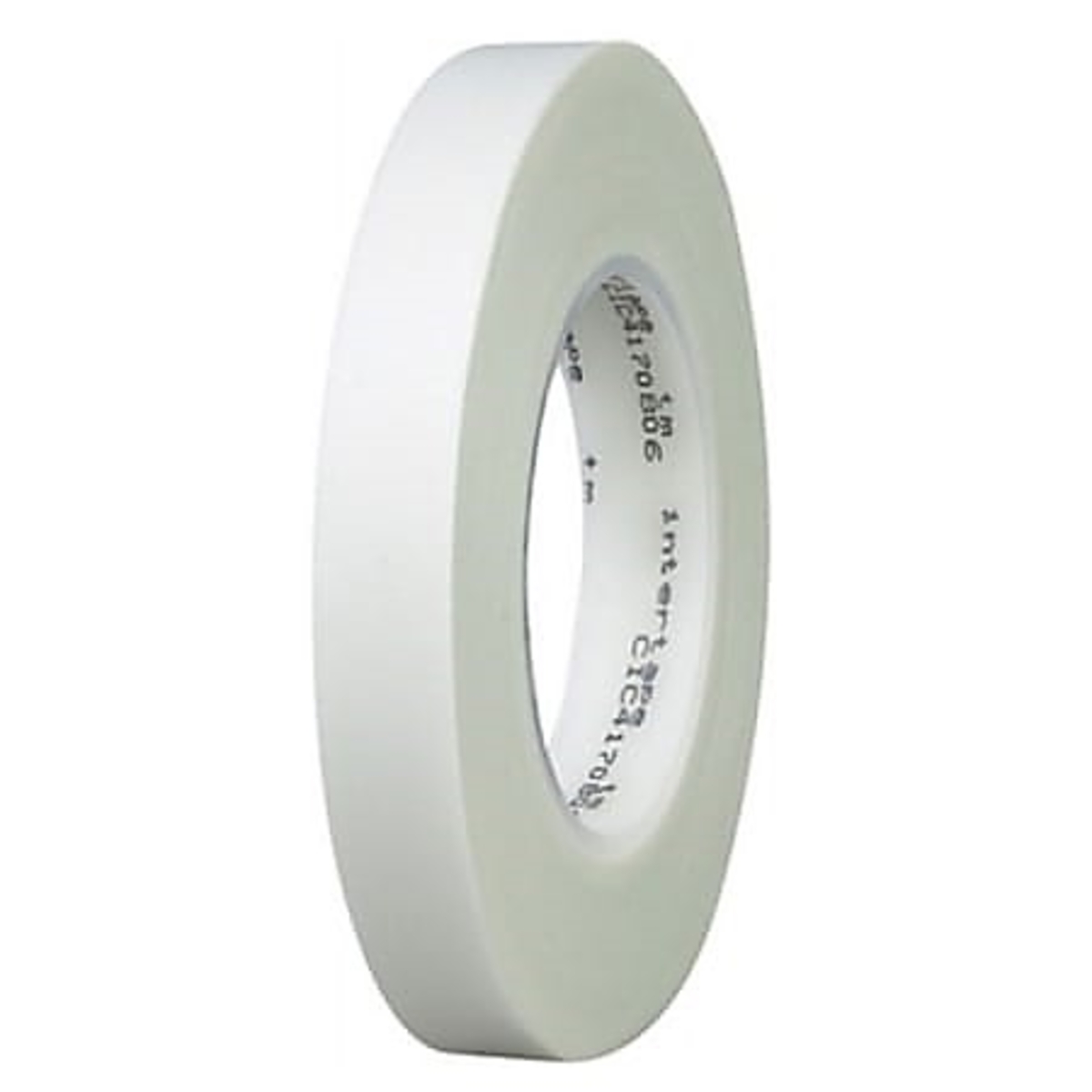

Intertape 4616-08 Cardboard Core Glass Electrical Tape, MFR ID 4616-08-CC
- MFR #4616-08-CC
- EIS #PH22-4616-08-CC
$6.11 - $121.68
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack--| Stock Status | |||
|---|---|---|---|
 | 0.75 Inch | $ / Roll | |
| 1.25 Inch | $ / Roll | |
 | 1 Inch | $ / Roll | |
| 2 Inch | $ / Roll |
Intertape 4616 cardboard cored woven fiberglass backing imparts high temperature resistance and thermal stability and offers outstanding abrasion resistance for a large number of applications. Offers high adhesion and resistance to tearing. Rubber thermosetting adhesive system give the tape excellent solvent resistance. - When the situation calls for high heat resistance and tensile strength, cardboard cored glass cloth tapes are ideal for many electrical insulation requirements. Outstanding flexibility and conformability, these tapes are unique in that they produce little edge fray and little to no dust.
Features
- Very good storage stability
- Flammability BU 2
- 10^3 Mohm insulation resistance
- Coil insulation wrap, relay coverings, protective insulating wrap on solenoid coils, splicing on electrical transmission lines
Applications
- For Motor Repair Shops, Bundling and Banding Heavy Gauge Magnet Wire
General Information
| Item Name | Electrical Tape |
| Trade Name | Inter Tape |
| Series | 4616-08-CC |
General Features
| Type | Cardboard Core |
Design & Construction
| Adhesive Type | Thermosetting Rubber |
| Backing Material | Glass Cloth |
| Color | White |
Performance Details
| Adhesive Strength | 50 oz/Inch |
| Tensile Strength | 175 lb/Inch |
Electrical Properties
| Dielectric Strength | 2500 V |
Physical Properties
| Core Size | 3 Inch |
| Elongation | 3% |
| Length | 60 Yard |
| Thickness | 7 mil |
Environmental Condition
| Resists | Solvent, Tear |
| Temperature Rating | 155 °C |
Documents
No Documents Found
