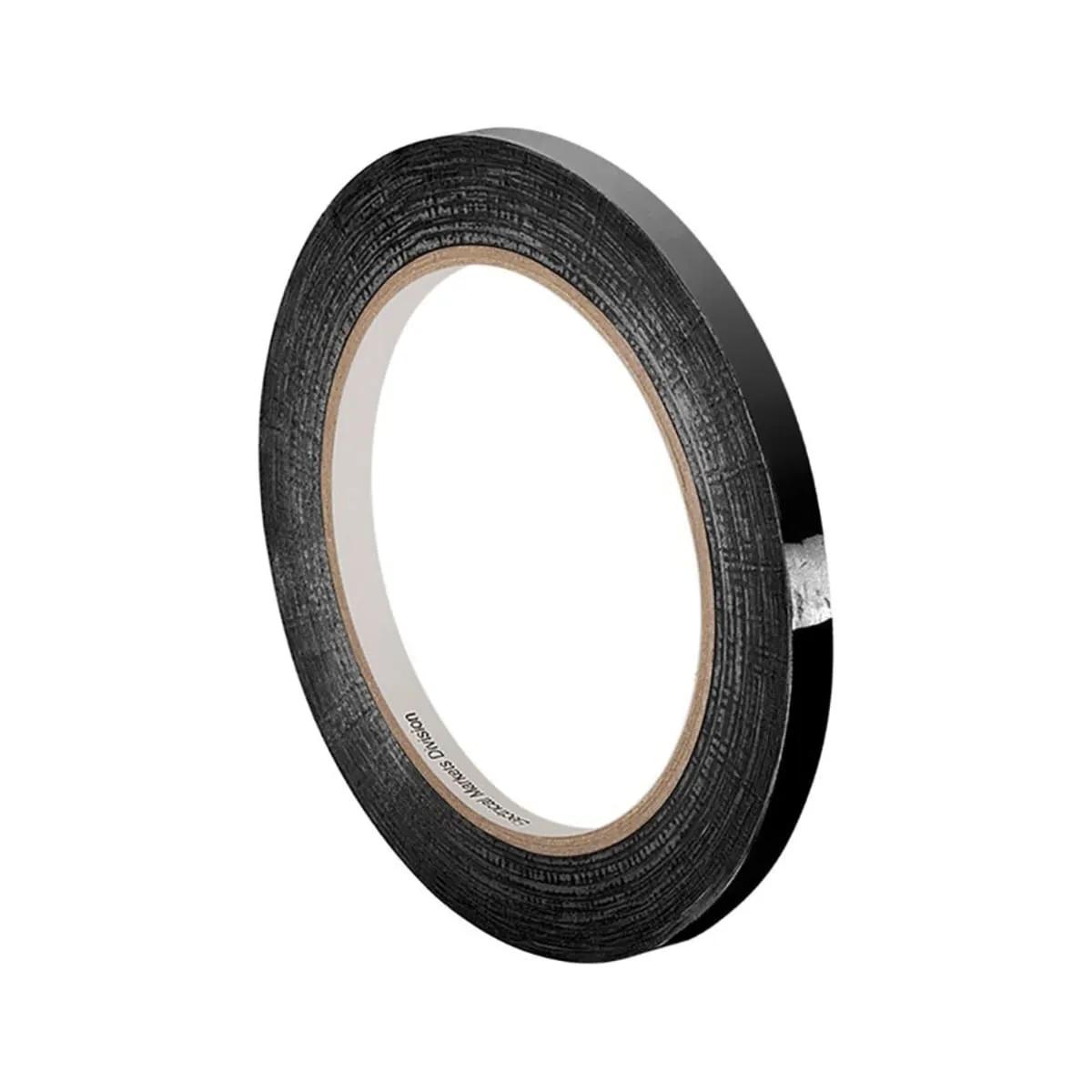

3M 1350F Polyester Electrical Tape, 1-1/2" x 72 yd x 2 Mil Film, Black, MFR ID 1350FX1.5B2
- MFR #1350F
- EIS #3M1350FX1.5B2
$110.37 / Roll
Pack: 36/Case
Available to Order
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
Pack36/Case
| Stock Status | |||||
|---|---|---|---|---|---|
 | 1 Mil | 0.25 Inch | White | $ / Roll Pack: 36/Case | |
| 1 Mil | 0.3125 Inch | White | $ / Roll Pack: 36/Case | |
| 1 Mil | 0.375 Inch | White | $ / Roll Pack: 36/Case | |
 | 1 Mil | 0.375 Inch | Black | $ / Roll Pack: 36/Case | |
| 1 Mil | 0.437 Inch | White | $ / Roll Pack: 36/Case | |
 | 1 Mil | 0.437 Inch | Yellow | $ / Roll Pack: 36/Case |
It also offers excellent flagging and solvent resistance, good wet grab, smooth, even unwind and is suitable for use on automated equipment. Excellent flagging resistance.
3M 1350F tape is an electrical insulating polyester film tape which meets the flame retardancy requirements of UL 510. It consists of materials that are represented in many UL recognized insulation systems and has a UL 130 °C temperature rating.
Applications
- For Wrapping Coils, Capacitors, Wire Harnesses, Transformers, Shaded Pole Motors and Fractional Horsepower Motors
Features
- Printable
- Solvent resistant without thermosetting
- Excellent shelf life
General Information
| Item Name | Electrical Tape |
| Trade Name | 3M |
| Series | 1350F |
Design & Construction
| Adhesive Type | Acrylic |
| Backing Material | Polyester |
| Color | Black |
Performance Details
| Adhesive Strength | 30 oz/Inch |
| Breaking Strength | 25 lb/Inch |
| Flame Retardant | Yes |
Electrical Properties
| Dielectric Strength | 5500 V |
Physical Properties
| Core Size | 3 Inch |
| Elongation | 100% |
| Length | 72 Yard |
| Thickness | 2 Mil |
| Width | 1.5 Inch |
Environmental Condition
| Resists | Flagging, Solvent |
| Temperature Rating | 130 °C |
