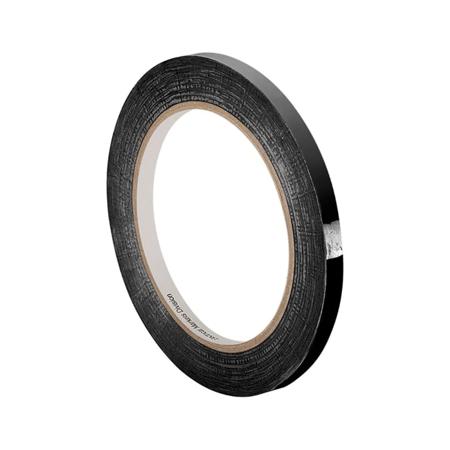

3M 1350F Polyester Electrical Tape

EIS-3M Electrical OEM Materials-Polyester HP Tapes-PH22-1350F-Images-Images
  • MFR #:1350F
  • EIS #:PH22-1350F
  • MFR #:1350F
  • EIS #:PH22-1350F
0
0
3M 1350F tape is an electrical insulating polyester film tape which meets the flame retardancy requirements of UL 510. It consists of materials that are represented in many UL recognized insulation systems and has a UL 130 °C temperature rating. - It also offers excellent flagging and solvent resistance, good wet grab, smooth, even unwind and is suitable for use on automated equipment. Excellent flagging resistance.
$0.02
 - $156.74
Select from the options below
0
0
3M 1350F tape is an electrical insulating polyester film tape which meets the flame retardancy requirements of UL 510. It consists of materials that are represented in many UL recognized insulation systems and has a UL 130 °C temperature rating. - It also offers excellent flagging and solvent resistance, good wet grab, smooth, even unwind and is suitable for use on automated equipment. Excellent flagging resistance.

Product Options

Showing 8 out of 49 options
EIS-3M Electrical OEM Materials-Polyester HP Tapes-PH22-1350F-Images-Images
Thickness:
2 Mil
Width:
2 Inch
Color:
White
EIS Part #:
3M1350FX2W2
$ / Roll
EIS-3M Electrical OEM Materials-Polyester HP Tapes-PH22-1350F-Images-Images
Thickness:
1 Mil
Width:
2 Inch
Color:
White
EIS Part #:
3M1350FX2W1
$ / Roll
Pack: 36/Case
EIS-3M Electrical OEM Materials-Polyester HP Tapes-PH22-1350F-Images-Images
Thickness:
2 Mil
Width:
2.75 Inch
Color:
Yellow
EIS Part #:
3M1350FX2.75Y2
$ / Roll
EIS-3M Electrical OEM Materials-Polyester HP Tapes-PH22-1350F-Images-Images
Thickness:
2 Mil
Width:
2.5 Inch
Color:
White
EIS Part #:
3M1350FX2.75W2
$ / Roll
EIS-3M Electrical OEM Materials-Polyester HP Tapes-PH22-1350F-Images-Images
Thickness:
1 Mil
Width:
2.5 Inch
Color:
White
EIS Part #:
3M1350FX2.5W1
$ / Roll
EIS-3M Electrical OEM Materials-Polyester HP Tapes-PH22-1350F-Images-Images
Thickness:
2 Mil
Width:
2.5 Inch
Color:
Black
EIS Part #:
3M1350FX2.5B2
$ / Roll
Pack: 24/Case
EIS-3M Electrical OEM Materials-Polyester HP Tapes-PH22-1350F-Images-Images
Thickness:
2 Mil
Width:
2.25 Inch
Color:
White
EIS Part #:
3M1350FX2.44W2
$ / Roll
EIS-3M Electrical OEM Materials-Polyester HP Tapes-PH22-1350F-Images-Images
Thickness:
2 Mil
Width:
2.187 Inch
Color:
Yellow
EIS Part #:
3M1350FX2.25Y2
$ / Roll

Attributes

General Information

Item NameElectrical Tape
Trade Name3M

Series1350F

Design & Construction

Adhesive TypeAcrylic
Backing MaterialPolyester
ColorWhite

Performance Details

Adhesive Strength30 oz/Inch
Breaking Strength25 lb/Inch
Flame RetardantYes

Electrical Properties

Dielectric Strength5500 V

Physical Properties

Core Size3 Inch
Elongation100%
Length72.0
Width-

Environmental Condition

ResistsFlagging, Solvent
Temperature Rating130 °C
