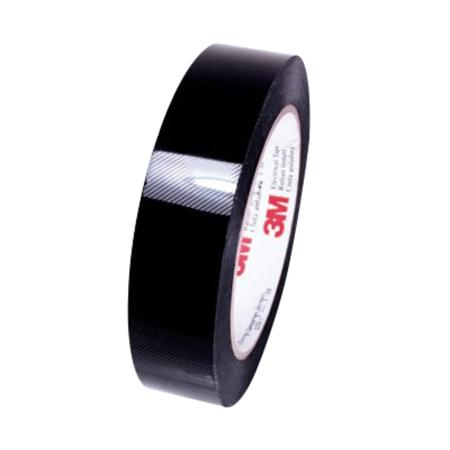

3M 1318 Polyester Electrical Tape

EIS-3M Electrical OEM Materials-Polyester HP Tapes-PH22-1318-Images-Images
  • MFR #:1318
  • EIS #:PH22-1318
  • MFR #:1318
  • EIS #:PH22-1318
0
0
3M 1318 tape is a polyester film tape with acrylic pressure sensitive adhesive. It has excellent flagging resistance and solvent resistance, making it well suited for applications where cleaning solvents and mineral oil are present. - It consists of materials that are represented in many UL recognized insulation systems and has a UL 130 °C temperature rating. It offers good wet grab, excellent shelf life, smooth, even unwind and is suitable for printing and use on automated equipment.
$5.57
 - $83.30
Select from the options below
0
0
3M 1318 tape is a polyester film tape with acrylic pressure sensitive adhesive. It has excellent flagging resistance and solvent resistance, making it well suited for applications where cleaning solvents and mineral oil are present. - It consists of materials that are represented in many UL recognized insulation systems and has a UL 130 °C temperature rating. It offers good wet grab, excellent shelf life, smooth, even unwind and is suitable for printing and use on automated equipment.

Product Options

Showing 8 out of 35 options
EIS-3M Electrical OEM Materials-Polyester HP Tapes-PH22-1318-Images-Images
Width:
2.25 Inch
Color:
Black
EIS Part #:
3M1318X2.25BLK
$ / Roll
EIS-3M Electrical OEM Materials-Polyester HP Tapes-PH22-1318-Images-Images
Width:
2 Inch
Color:
Yellow
EIS Part #:
3M1318X2
$ / Roll
EIS-3M Electrical OEM Materials-Polyester HP Tapes-PH22-1318-Images-Images
Width:
1 Inch
Color:
Black
EIS Part #:
3M1318X1BLK
$ / Roll
EIS-3M Electrical OEM Materials-Polyester HP Tapes-PH22-1318-Images-Images
Width:
1.75 Inch
Color:
Black
EIS Part #:
3M1318X1.75BLK
$ / Roll
EIS-3M Electrical OEM Materials-Polyester HP Tapes-PH22-1318-Images-Images
Width:
1.75 Inch
Color:
Yellow
EIS Part #:
3M1318X1.75
$ / Roll
EIS-3M Electrical OEM Materials-Polyester HP Tapes-PH22-1318-Images-Images
Width:
1.5 Inch
Color:
Black
EIS Part #:
3M1318X1.5BLK
$ / Roll
EIS-3M Electrical OEM Materials-Polyester HP Tapes-PH22-1318-Images-Images
Width:
1.5 Inch
Color:
Yellow
EIS Part #:
3M1318X1.5
$ / Roll
EIS-3M Electrical OEM Materials-Polyester HP Tapes-PH22-1318-Images-Images
Width:
1.375 Inch
Color:
Yellow
EIS Part #:
3M1318X1.375
$ / Roll

Attributes

General Information

Item NameElectrical Tape
Trade Name3M

Series1318

Design & Construction

Adhesive TypeAcrylic
Backing MaterialPolyester
ColorYellow

Performance Details

Adhesive Strength30 oz/Inch
Breaking Strength25 lb/Inch

Electrical Properties

Dielectric Strength5500 V

Physical Properties

Core Size3 Inch
Elongation100%
Length72 Yard
Thickness2.5 Mil
Width-

Environmental Condition

ResistsFlagging, Solvent
Temperature Rating130 °C
