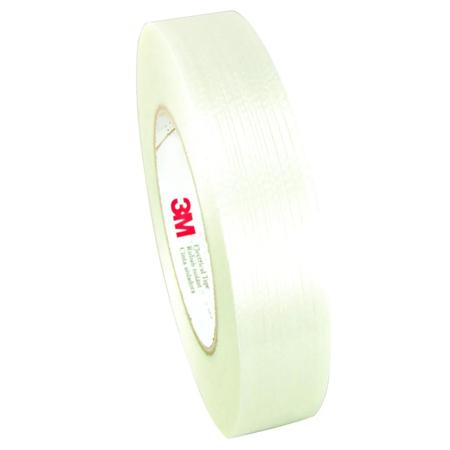

3M 1139 Paper Core Polyester/Glass Filament Electrical Tape

EIS-3M Electrical OEM Materials-Glass Tapes-PH22-1139-Images-Images
  • MFR #:1139
  • EIS #:PH22-1139
  • MFR #:1139
  • EIS #:PH22-1139
0
0
3M filament tape 1139 is a solvent-resistant, high temperature filament tape with acrylic adhesive. Designed for applications needing both the dielectric strength of polyester film and the high mechanical strength of glass fibers. Low stretch, high tensile and edge-tear resistant's. - 3M 1139 Series Paper Core Electrical Tape, Clear, 60 Yard Length, Thickness: 6.5 Mil, Core Size: 3 Inch, Adhesive Type: Acrylic, Adhesive Strength: 35 oz/Inch, Polyester/Glass Filament Backing, Elongation: 6%, Breaking Strength: 225 lb/Inch, Dielectric Strength: 5500V, Temperature Rating: 32 to 311 °F, Flame Retardant: No.
$12.72
 - $60.87
Select from the options below
0
0
3M filament tape 1139 is a solvent-resistant, high temperature filament tape with acrylic adhesive. Designed for applications needing both the dielectric strength of polyester film and the high mechanical strength of glass fibers. Low stretch, high tensile and edge-tear resistant's. - 3M 1139 Series Paper Core Electrical Tape, Clear, 60 Yard Length, Thickness: 6.5 Mil, Core Size: 3 Inch, Adhesive Type: Acrylic, Adhesive Strength: 35 oz/Inch, Polyester/Glass Filament Backing, Elongation: 6%, Breaking Strength: 225 lb/Inch, Dielectric Strength: 5500V, Temperature Rating: 32 to 311 °F, Flame Retardant: No.

Product Options

Showing 3 out of 3 options
EIS-3M Electrical OEM Materials-Glass Tapes-PH22-1139-Images-Images
Width:
1 Inch
EIS Part #:
3M1139X1
$ / Roll
EIS-3M Electrical OEM Materials-Glass Tapes-PH22-1139-Images-Images
Width:
0.75 Inch
EIS Part #:
3M1139X.75
$ / Roll
EIS-3M Electrical OEM Materials-Glass Tapes-PH22-1139-Images-Images
Width:
0.625 Inch
EIS Part #:
3M1139X.625
$ / Roll

Attributes

General Information

Item NameElectrical Tape
Trade Name3M

Series1139

General Features

TypePaper Core

Design & Construction

Adhesive TypeAcrylic
Backing MaterialPolyester/Glass Filament
ColorClear

Performance Details

Adhesive Strength35 oz/Inch
Breaking Strength225 lb/Inch
Flame RetardantNo

Electrical Properties

Dielectric Strength5500 V

Physical Properties

Core Size3 Inch
Elongation6%
Width-
Length60 Yard
Thickness6.5 Mil

Environmental Condition

ResistsSolvent, Tear
Temperature Rating32 °F
