MFR #:1076-PAC
EIS #:PH22-1076-PAC
MFR #:1076-PAC
EIS #:PH22-1076-PAC

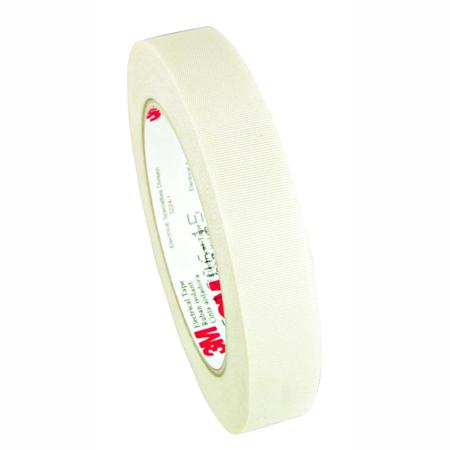

3M electrical filament paper cored tape 1076 is made of an electrical-grade paper backing, reinforced with scrim glass filaments and an oil-compatible acrylic pressure sensitive adhesive. Unlike conventional film-backed tapes, this products paper backing construction provides for complete impregnation and saturation of the tape in adjacent layers of insulation. - The 1076 paper cored tape construction provides saturable backing to minimize the potential of voids, improved bonding with diamond paper insulation during transformer baking and excellent stiffness. This key feature minimizes the possibility of impregnation voids leading to corona discharges, with subsequent deterioration of insulating materials.
$6.56
- $29.46
Select from the options below
3M electrical filament paper cored tape 1076 is made of an electrical-grade paper backing, reinforced with scrim glass filaments and an oil-compatible acrylic pressure sensitive adhesive. Unlike conventional film-backed tapes, this products paper backing construction provides for complete impregnation and saturation of the tape in adjacent layers of insulation. - The 1076 paper cored tape construction provides saturable backing to minimize the potential of voids, improved bonding with diamond paper insulation during transformer baking and excellent stiffness. This key feature minimizes the possibility of impregnation voids leading to corona discharges, with subsequent deterioration of insulating materials.
Product Options
Showing 6 out of 6 options
Width: 1.5 Inch | EIS Part #: 3M1076X1.5 | $ / Roll | ||
Width: 1 Inch | EIS Part #: 3M1076X1 | $ / Roll | ||
Width: 0.75 Inch | EIS Part #: 3M1076X.75 | $ / Roll | ||
Width: 0.5 Inch | EIS Part #: 3M1076X.5 | $ / Roll | ||
Width: 0.375 Inch | EIS Part #: 3M1076X.375 | $ / Roll | ||
Width: 0.25 Inch | EIS Part #: 3M1076X.25 | $ / Roll |
- Attributes
- Features
- Applications
- Documents
Attributes
General Information
Item NameElectrical Tape
Trade Name3M
Series1076-PAC
General Features
Shelf Life60 Months
TypePaper Core
Design & Construction
Adhesive TypeAcrylic
Backing MaterialPaper/Glass Filament
ColorWhite
Performance Details
Adhesive Strength40 oz/Inch
Breaking Strength275 lb/Inch
Flame RetardantYes
Electrical Properties
Dielectric Strength3500 V
Physical Properties
Core Size3 Inch
Elongation5%
Length60 Yard
Thickness10 mil
Width-
Environmental Condition
Temperature Rating266 °F
Features
- Electrical grade paper backing, reinforced with scrim glass filaments
- Oil-compatible acrylic pressure sensitive adhesive
- Provides saturable backing to minimize the potential of voids, improved bonding with diamond paper insulation during transformer baking and excellent stiffness
- Adhesion is stable, even after long exposure to transformer fluids
- Woven glass mat provides additional reinforcement
- Temperature rating of -40 to 266 °F
Applications
- For Oil-Filled Transformer Applications, Holding Down Magnet Wire, Copper Strips (Sheets) and Insulation Materials During The Demanding Coil Winding Process
