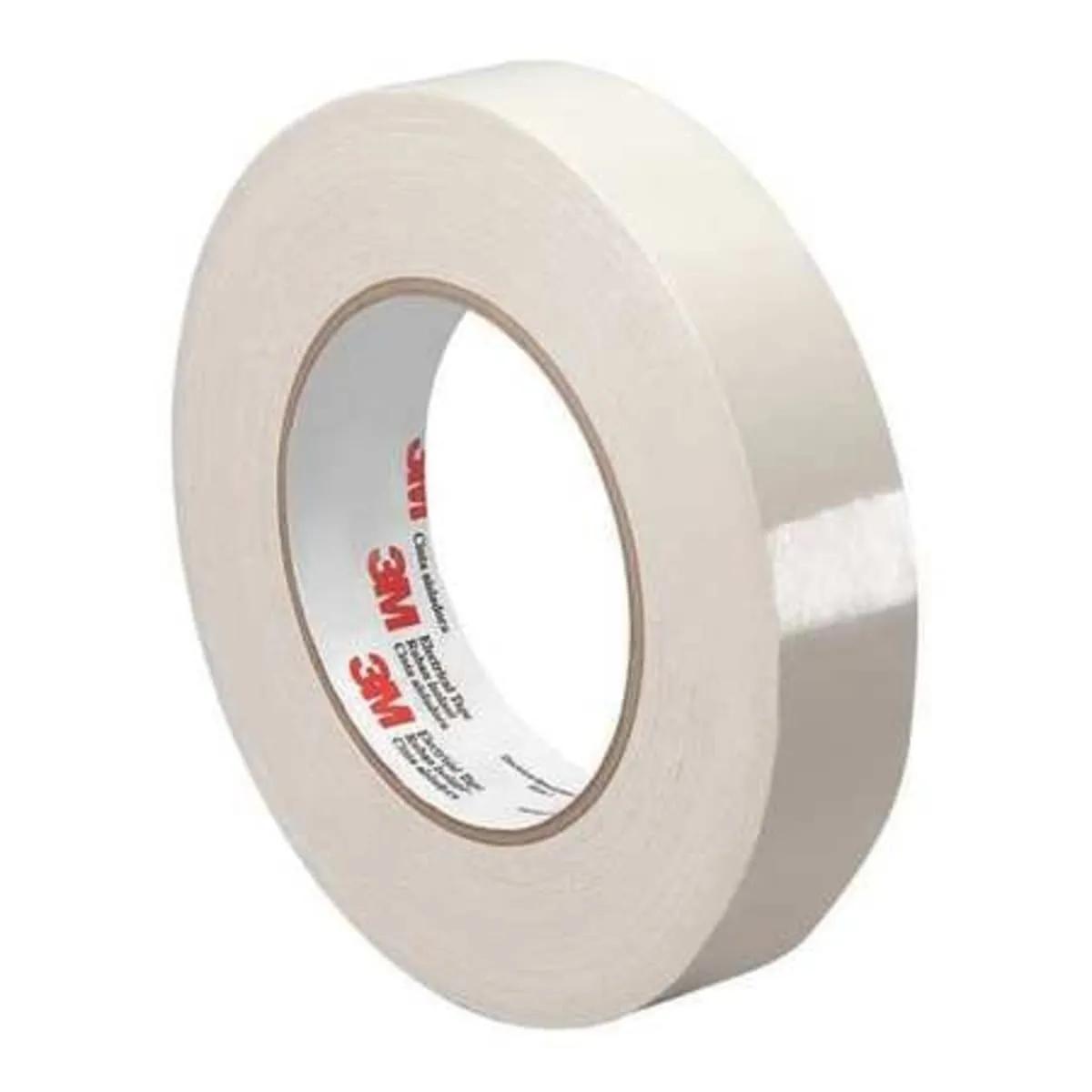

3M 46 Polyester/Glass Filament Electrical Tape, 1" x 60 yd x 7 Mil, Tan, 36/Case, MFR ID 7010320272
- MFR #7010320272
- EIS #3M46X1
- UPC #00051138528072
$52.02 / Roll
Pack: 36/Case
In Stock | Ready to Ship
Min QTY1QTY Increment1
more info
Pack36/Case
3M™ Tape 46 has a thermosetting, pressure sensitive, rubber adhesive, which provides excellent adherence. The polyester film/glass filament backing of this tape has outstanding physical and electrical properties. This tape is suitable for applications that require the high mechanical strength of glass fibers and the dielectric strength of polyester film. This tape is tough and provides high tensile strength, as well as low stretch. UL Listed and RoHS 2011/65/EU Compliant.
3M™ Tape 46 is an electrical tape with rubber adhesive. This tape is ideal for anchoring lead wires to banding coils and for end turn taping. This tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).
Features
- High dielectric strength
- The polyester film/glass backing has excellent physical and electrical characteristics
- Electrical tape is a polyester film/glass filament tape coated with a thermosetting, pressure sensitive rubber adhesive system
Applications
- For Lead Anchoring and Banding of Coils
General Information
| Item Name | Electrical Tape |
Design & Construction
| Adhesive Type | Thermosetting Rubber |
| Backing Material | Polyester/Glass Filament |
| Color | Tan |
Performance Details
| Adhesive Strength | 50 oz/Inch |
| Breaking Strength | 275 lb/Inch |
Electrical Properties
| Dielectric Strength | 5500 V |
Physical Properties
| Core Size | 3 Inch |
| Elongation | 50% |
| Length | 60 Yard |
| Thickness | 7 Mil |
| Width | 1 Inch |
Environmental Condition
| Temperature Rating | 130 °C |
