Rochling Glastic FHT Natural Flexible High-Temperature Electrical Insulating Laminate, 1/8" x 36" x 72", MFR ID GLASFHT1/816
- MFR #1800083
- EIS #GLASFHT1/816
$344.43 / Sheet
In Stock | Ready to Ship
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
| Stock Status | |||||
|---|---|---|---|---|---|
 | 72 Inch | 0.125 Inch | 36 Inch | $ / Sheet |
Grade FHT (Flexible High-temperature) laminate provides numerous high-performance features and benefits, such as high flexibility and excellent dielectric strength at elevated temperatures. - It also exhibits the highest UL® temperature index in the industry for flexible glass-reinforced polyester in 1/32 Inch and 1/16 Inch thicknesses.
Features
- Highly flexible
- Excellent dielectric strength
- High heat resistance
- Easily fabricated
- Asbestos-free
- 450 Vpm Perpendicular S/T In Air, 570 Vpm Perpendicular S/T In Oil, 60 kV Parallel S/S In Oil electric strength
- Temperature Rating: 190 to 200 °C Electrical and Mechanical
- Thermal Conductivity: 1.7 BTU/HR/ft²/Inch/°F
- Temperature Rating: 190 to 200 °C
Applications

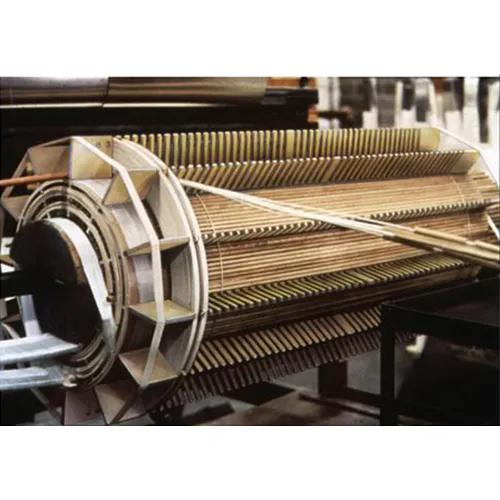

- For Dry-Type Transformers, Motors
General Information
| Item Name | Electrical Insulating Laminate |
| Series | GLASFHT-Natural |
General Features
| Type | Flexible, High-Temperature |
Design & Construction
| Color | Natural |
| Material | Fiberglass Reinforced Polyester |
Performance Details
| Compression Strength | 14000 psi |
| Electric Strength | 450 Vpm |
| Impact Strength | 10 ft-lb/Inch |
| Tensile Strength | 10500 psi |
Chemical Properties
| Specific Gravity | 1.6 |
Physical Properties
| Length | 72 Inch |
| Thickness | 0.125 Inch |
| Width | 36 Inch |
| Arc Resistance | 139 sec |
| Water Absorption | 1.1% |
Environmental Condition
| Temperature Rating | 190 °C |
