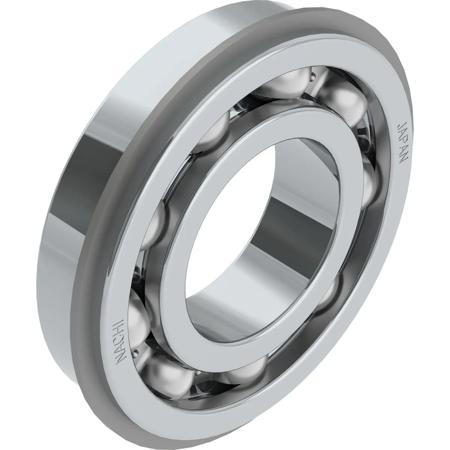

Nachi 6210NRBNLM - 6200 Series Deep Groove Radial Ball Brg W/Snap, MFR ID NAC-6210NR
MFR #:6210NR
EIS #:6210NR02
UPC #:4991893857276
MFR #:6210NR
EIS #:6210NR02
UPC #:4991893857276
Available to Order
Min Qty:1
|Qty Increment:1
Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
$26.00 / Piece
Min Qty:1
|Qty Increment:1
Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
- Attributes
- Features
Attributes
General Information
Item NameDeep Groove Radial Ball Bearing W/Snap
General Features
Net Weight1.02 lb
Design & Construction
Bore TypeCylindrical
Cage MaterialJIS SPCC Steel
Closure TypeNo
Inner Ring MaterialJIS SUJ2 Steel
Outer Ring MaterialJIS SUJ2 Steel
Rolling Element MaterialJIS SUJ2 Steel
Performance Details
Dynamic Load Capacity35000 N
Operating Temperature120 °C (248 °F)
Precision ClassP0
Speed Rating7100 rpm (Grease) | 8600 rpm (Oil)
Static Load Capacity23200 N
Physical Properties
Bore Diameter50 mm
Outside Diameter90 mm
Overall Width20 mm
Radial Internal ClearanceCN/C0
Features
- NACHI Deep-Groove Ball Bearings are available open, sealed, or shielded
- (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
