MFR #:6314-2RSR-C3
EIS #:6314-2RS05
Series #:6314
UPC #:04012801205597
MFR #:6314-2RSR-C3
EIS #:6314-2RS05
Series #:6314
UPC #:04012801205597
In Stock | Ready to Ship
Min Qty:1
|Qty Increment:1

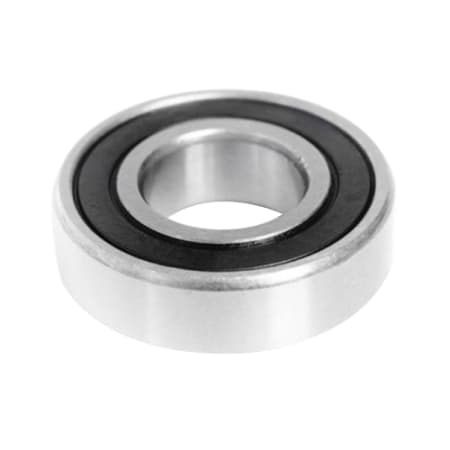

Schaeffler 6300 deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. These products, which are of simple design, robust in operation and easy to maintain, are available in single and double row designs and in open and sealed variants. Due to the manufacturing processes used, open bearings can have turned recesses in the outer ring for seals or shields. Due to their low frictional torque, deep groove ball bearings are suitable for high speeds. - Schaeffler 6300 single row deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies.
$197.94 / each
Min Qty:1
|Qty Increment:1
Schaeffler 6300 deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. These products, which are of simple design, robust in operation and easy to maintain, are available in single and double row designs and in open and sealed variants. Due to the manufacturing processes used, open bearings can have turned recesses in the outer ring for seals or shields. Due to their low frictional torque, deep groove ball bearings are suitable for high speeds. - Schaeffler 6300 single row deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies.
- Attributes
- Features
- Applications
Attributes
General Information
Item NameDeep Groove Radial Ball Bearing
Series6314
General Features
Net Weight2,6kg
Design & Construction
Cage MaterialSheet Steel
Enclosure TypeDouble Seal
Lubrication TypeGrease
Seal MaterialNitrile Butadiene Rubber
Performance Details
Dynamic Load Capacity115000 N
Static Load Capacity69000 N
Physical Properties
Bore Diameter70 mm
Clearance Diameter3
Fillet Radius2.1 mm
Number of Rows1
Outside Diameter150 mm
Width35 mm
Environmental Condition
Temperature Rating110 °C
Features
- Radial and axial load capacity, due to the raceway geometry and the balls used as rolling elements, deep groove ball bearings can support axial loads in both directions as well as radial loads
- Lip seals on both sides
- Single row deep groove ball bearings are the most frequently used type of rolling bearing, they are produced in numerous sizes and designs and are particularly economical
- Due to the production technology used, open bearings can still have turned recesses on the outer ring for seals or shields
- Deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies
- These products are of simple design, durable in operation and easy to maintain, they are available in single and double row designs and in open and sealed variants
- Clearance: C3
- Speed Rating: 2800 rpm Limiting
- Temperature Rating: -30 to 110 °C
Applications
- Suitable For High Speeds
