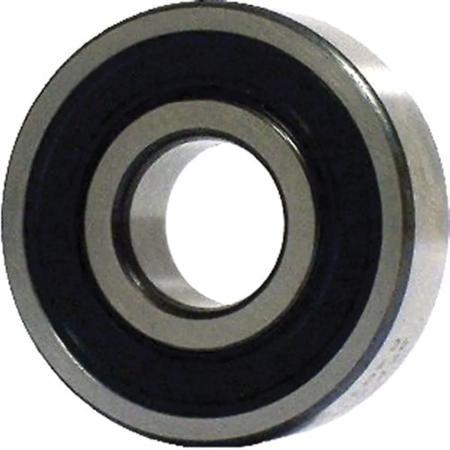

The image shown is representative of the product family and may not specifically be the individual item.
0

SKF 6220-2RS Single Row Deep Groove Radial Ball Bearing, 100 mm Bore x 180 mm OD x 34 mm W, Double Seal, Pressed Steel Cage, MFR ID 6220 2RSJEM

  • MFR #6220 2RSJEM
  • EIS #6220-2RS04
  • Series #6220
  • UPC #07316571220512
$497.07 / each
In Stock | Ready to Ship
Min QTY1QTY Increment1more info
WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov

SKF 6200 single row deep groove ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions. Single row deep groove ball bearings are available open or capped (with seals or shields). Open bearings that are also available capped, may have recesses in the outer ring. - SKF 6200 single row deep groove radial ball bearings have deep, uninterrupted raceway grooves. These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial loads and axial loads in both directions.

General Information

Item NameDeep Groove Radial Ball Bearing

Series6220

General Features

Net Weight3.29kg

Design & Construction

Cage MaterialPressed Steel
Enclosure TypeDouble Seal
Seal MaterialRubber

Performance Details

Dynamic Load Capacity127000 N
Static Load Capacity93000 N
Tolerance ClassP6, P5

Physical Properties

Bore Diameter100 mm
Fillet Radius2 mm
Number of Rows1
Outside Diameter180 mm
Width34 mm
