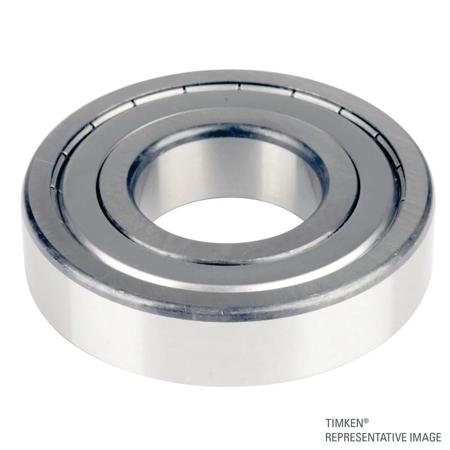

Timken 6202-ZZT ISO Deep Groove Radial Ball Bearing | 15 mm 0.6 in Bore | 35 mm 1.4 in OD, MFR ID TIM-6202-ZZ
- EIS #:6202-ZZT
- UPC #:87796293045
- EIS #:6202-ZZT
- UPC #:87796293045
Available to Order
Min Qty:1
|Qty Increment:1
Timken supplies a full range of product in the world’s most popular design series. Timken® metric deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.
$19.64 / Piece
Min Qty:1
|Qty Increment:1
Timken supplies a full range of product in the world’s most popular design series. Timken® metric deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.
- Attributes
- Features
Attributes
General Information
Item NameDeep Groove Ball Bearing
Series6200
General Features
Net Weight0.099 lb
TypeBall Bearing
Design & Construction
Bore TypeStraight
Closure TypeTwo Shields
MaterialSteel
Retainer MaterialCold Rolled Steel
Rolling ElementBall
Row TypeSingle
Performance Details
Dynamic Load Capacity1708.54796256824 lb
Operating Temperature-50 °C To 120 °C
Precision ClassISO Normal/ABEC1
Self AligningNo
Speed Rating19000 rpm (Oil) | 28000 rpm (Grease)
Static Load Capacity831.793087039803 lb
Physical Properties
Bore Diameter0.5906 Inch | 15 mm
Fillet Radius0.0236220472440945 Inch | 1 mm
Outside Diameter1.378 Inch | 35 mm
Overall Width0.4331 Inch | 11 mm
Radial Internal ClearanceC0
Features
- Super finished raceways
- Quiet operations
- ISO standard interchangeable dimensions
- Electric Motor Quality (EMQ)
- Shield(s) provides some contamination protection and lubricant retention
- Used in high speed applications like electric motors
