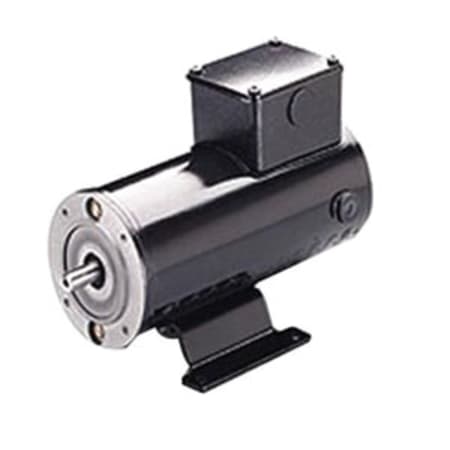

Leeson M1130141 E56-9 DC Motor, 0.12 HP, 3000 rpm, 56D Frame

The image shown is representative of the product family and may not specifically be the individual item.

MFR #:MOTM113014

EIS #:MOTM1130141

Series #:MOTM113014

UPC #:00069172009145

MFR #:MOTM113014

EIS #:MOTM1130141

Series #:MOTM113014

UPC #:00069172009145

In Stock | Ready to Ship

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
Permanently lubricated sealed ball bearings. Reversible rotation . Simple 2 lead connection. Convenient wiring access. Cast aluminum conduit box. Terminal board provided for connections. All Metric fasteners. Easy brush access for field service. Oversize brushes for extended life. High strength rolled steel frame. Die cast aluminum end shields with Steel bearing inserts.
$871.51 / each

Min Qty:1

  |

Qty Increment:1

WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
more info
0
0
Permanently lubricated sealed ball bearings. Reversible rotation . Simple 2 lead connection. Convenient wiring access. Cast aluminum conduit box. Terminal board provided for connections. All Metric fasteners. Easy brush access for field service. Oversize brushes for extended life. High strength rolled steel frame. Die cast aluminum end shields with Steel bearing inserts.

Product Options

Showing 2 out of 2 options
The image shown is representative of the product family and may not specifically be the individual item.
HP Rating:
0.25 HP
Frame Size:
63
EIS Part #:
MOTM1130142
$ / each
The image shown is representative of the product family and may not specifically be the individual item.
HP Rating:
0.12 HP
Frame Size:
56
EIS Part #:
MOTM1130141
$ / each

Attributes

General Information
Item NameDC Motor
Trade NameLeeson
SeriesMOTM113014
General Features
TypeE56-9
StandardsUL Listed, CSA Approved
Design & Construction
Enclosure TypeIP54
DutyS1
Insulation TypeClass F
Lubrication TypeGrease
MaterialRolled Steel
Mounting TypeB14 Flange Rigid Base
RotationReconnect
Shaft PositionHorizontal
Performance Details
Full Load Efficiency71.6%
Torque Rating54.1 oz-Inch
Speed Rating3000 rpm
Electrical Properties
Armature Voltage180 V
Form Factor1.05
Full Load Ampere0.9 A
HP Rating0.12 HP
Service Factor1
Input Voltage230 VAC
Physical Properties
Frame Size56
Dimensions7.55 Inch L x 4.17 Inch W x 5.48 Inch H
Shaft Diameter9 mm
Shaft Length20 mm
Weight10 lb
Bearing SizeOPE 6201-13, PE 6201-13, Ball Bearing
Environmental Condition
Temperature Rating40 °C
