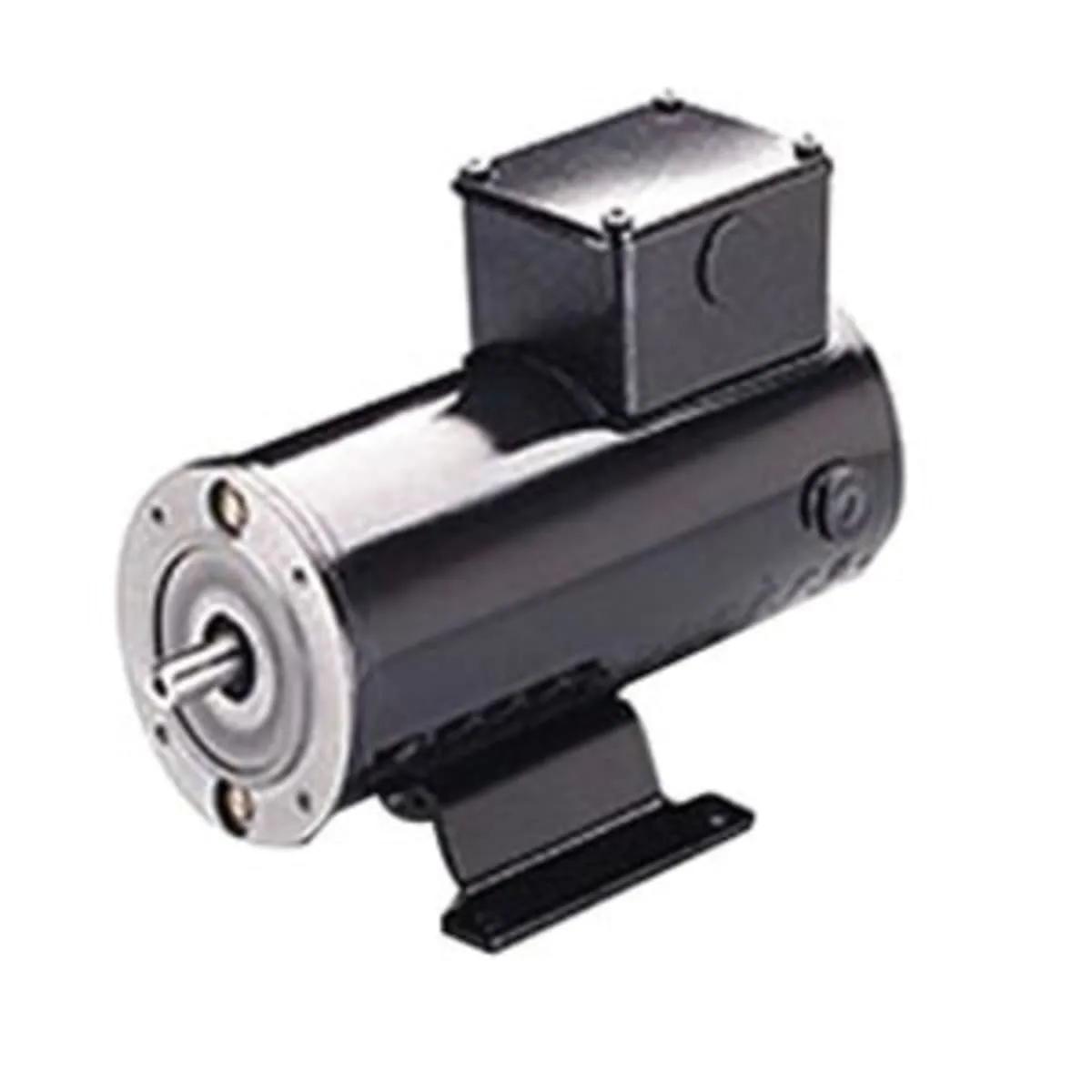

The image shown is representative of the product family and may not specifically be the individual item.
0

Leeson M1130141 E56-9 DC Motor, 0.12 HP, 3000 rpm, 56D Frame

  • MFR #MOTM113014
  • EIS #MOTM1130141
  • Series #MOTM113014
  • UPC #00069172009145
$871.51 / each
In Stock | Ready to Ship
Refine your product below or compare all choices in the
Min QTY1QTY Increment1
more info
PROP_65_CANCER
WARNING: California Proposition 65 - Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Products You May Also Like

Permanently lubricated sealed ball bearings. Reversible rotation . Simple 2 lead connection. Convenient wiring access. Cast aluminum conduit box. Terminal board provided for connections. All Metric fasteners. Easy brush access for field service. Oversize brushes for extended life. High strength rolled steel frame. Die cast aluminum end shields with Steel bearing inserts.

General Information

Item NameDC Motor
Trade NameLeeson

SeriesMOTM113014

General Features

TypeE56-9
StandardsUL Listed, CSA Approved

Design & Construction

Enclosure TypeIP54
DutyS1
Insulation TypeClass F
Lubrication TypeGrease
MaterialRolled Steel
Mounting TypeB14 Flange Rigid Base
RotationReconnect
Shaft PositionHorizontal

Performance Details

Full Load Efficiency71.6%
Torque Rating54.1 oz-Inch
Speed Rating3000 rpm

Electrical Properties

Armature Voltage180 V
Form Factor1.05
Full Load Ampere0.9 A
HP Rating0.12 HP
Service Factor1
Input Voltage230 VAC

Physical Properties

Frame Size56
Dimensions7.55 Inch L x 4.17 Inch W x 5.48 Inch H
Shaft Diameter9 mm
Shaft Length20 mm
Weight10 lb
Bearing SizeOPE 6201-13, PE 6201-13, Ball Bearing

Environmental Condition

Temperature Rating40 °C
