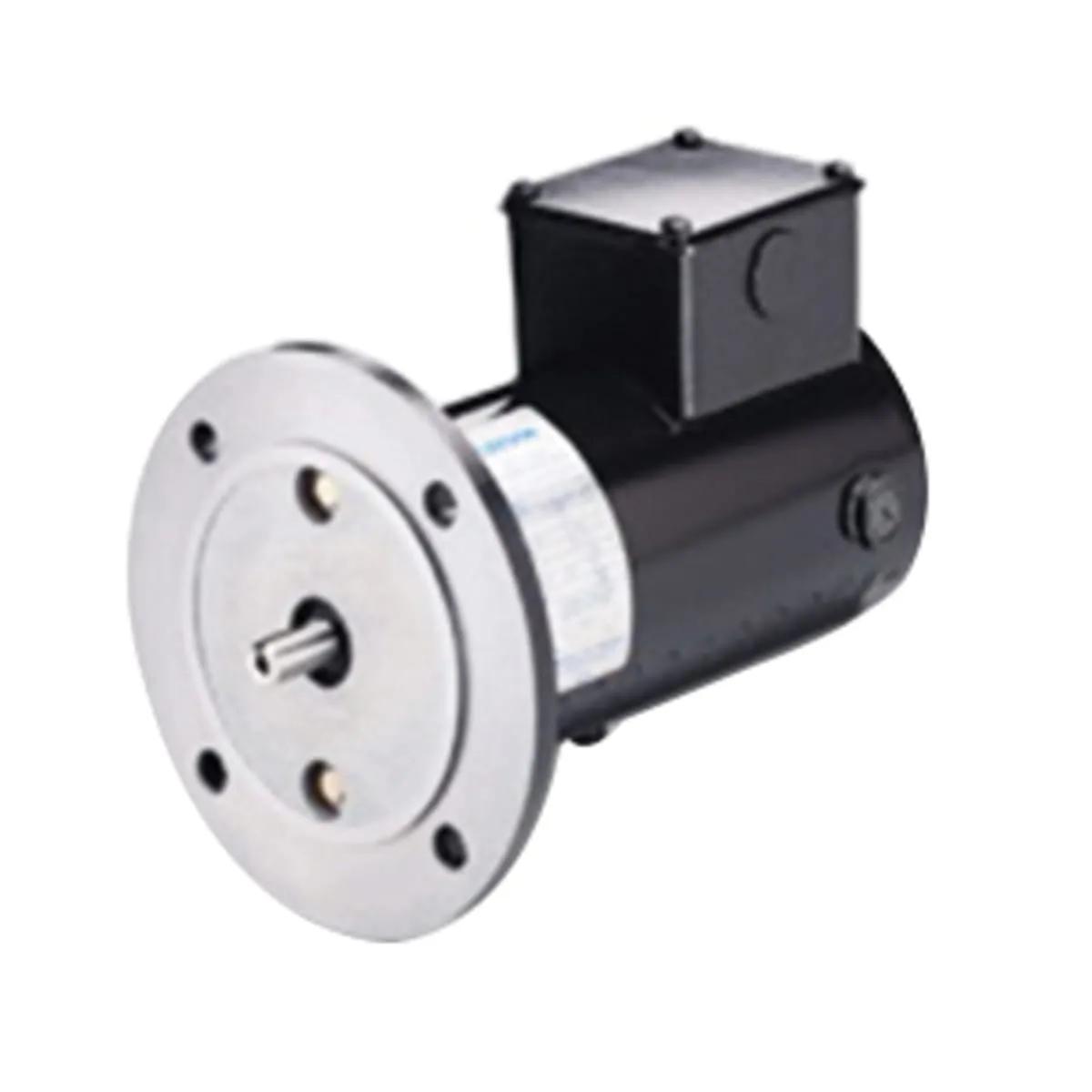

Leeson M1130153 G63-9 DC Motor, 1/4 HP, 3000 rpm, 63D Frame
- MFR #M1130153.00
- EIS #MOTM1130153
- Series #MOTM113015
- UPC #00069172009155
$296.99 / each
Available to Order
Min QTY1QTY Increment1
more info
Products You May Also Like
Cast aluminum conduit box. Terminal board provided for connections. All Metric fasteners. Easy brush access for field service. Oversize brushes for extended life. High strength rolled steel frame. Die cast aluminum end shields with Steel bearing inserts. Permanently lubricated sealed ball bearings. Reversible rotation. - Leeson G63-9 DC Motor, Armature Voltage: 180VDC, Bearing Size: OPE 6201-13, PE 6201-13, Ball Bearing, Dimensions: 9.5 Inch L x 4.56 Inch W x 5.75 Inch H, Duty: S1, Enclosure Type: IP54, Form Factor: 1.05, Frame Size: 63, Full Load Ampere: 1.7A, Full Load Efficiency: 75.8%, HP Rating: 0.25 HP, Input Voltage: 230VAC, Insulation Type: Class F, Lubrication Type: Grease, Material: Rolled Steel, Mounting Type: B5 Flange Rigid Base, Rotation: Reconnect, Service Factor: 1, Shaft Diameter: 11 mm, Shaft Length: 23 mm, Shaft Position: Horizontal, Speed Rating: 3000 rpm, Temperature Rating: 40 °C, Torque Rating: 112 oz-Inch, Weight: 13 lb.
Features
- Full Load Ampere: 2.4A at 0.37kW, 1.7A at 0.25kW
- Form Factor: 1.05 at 0.37kW, 1.4 at 0.25kW
General Information
| Item Name | DC Motor |
| Trade Name | Leeson |
| Series | MOTM113015 |
General Features
| Standards | UL Listed, CSA Approved |
| Type | G63-9 |
Design & Construction
| Duty | S1 |
| Enclosure Type | IP54 |
| Insulation Type | Class F |
| Lubrication Type | Grease |
| Material | Rolled Steel |
| Mounting Type | B5 Flange Rigid Base |
| Rotation | Reconnect |
| Shaft Position | Horizontal |
Performance Details
| Full Load Efficiency | 75.8% |
| Speed Rating | 3000 rpm |
| Torque Rating | 112 oz-Inch |
Electrical Properties
| Armature Voltage | 180 VDC |
| Form Factor | 1.05 |
| Full Load Ampere | 1.7 A |
| HP Rating | 0.25 HP |
| Input Voltage | 230 VAC |
| Service Factor | 1 |
Physical Properties
| Bearing Size | OPE 6201-13, PE 6201-13, Ball Bearing |
| Dimensions | 9.5 Inch L x 4.56 Inch W x 5.75 Inch H |
| Frame Size | 63 |
| Shaft Diameter | 11 mm |
| Shaft Length | 23 mm |
| Weight | 13 lb |
Environmental Condition
| Temperature Rating | 40 °C |
