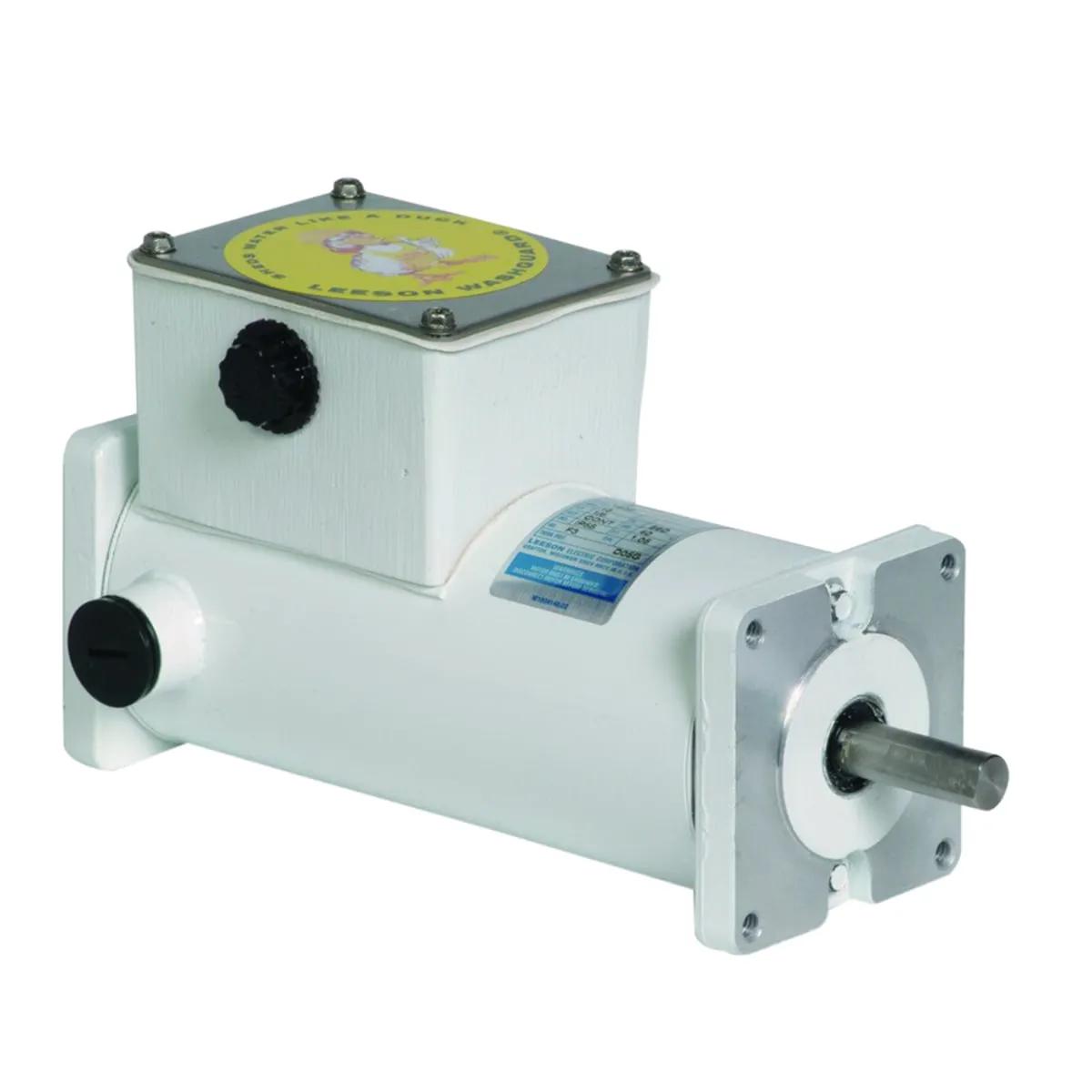

Leeson M1120182 DC Motor, 1/8 HP, 1750 rpm, 31 Frame, TENV, Square Flange Mount
- EIS #MOTM1120182
- UPC #00069172034607
$999.58 / Piece
In Stock | Ready to Ship
Min QTY1QTY Increment1
more info
Products You May Also Like
Precision sub fractional horsepower DC permanent magnet motors designed for use with full wave non-filtered SCR controls for adjustable speed applications requiring dynamic braking and constant torque throughout the speed range - Leeson Washguard® M1120182 DC Motor
Features
- USDA-approved epoxy painted motors
- 3-year warranty on encapsulated and Premium efficient models
- Wash-down brakemotors and pump motors available
- Stainless steel motors
- Encapsulated stainless steel motors available
- NEMA and IEC flange motors
- Three phase, single phase and DC wash-down duty motors
- AC and DC wash-down gearmotors
- Rigid base and C face mount types
- BISSC approved designs
- Double lip contact seals and v-ring seals used for shaft seals
- Full Load Ampere: 10.5A at 12V
- Temperature Rating: 40 °C Ambient
Applications
- Designed To Meet The Demanding Wash down Conditions That You May Find In Food Processing Plants, Chemical Processing, Pharmaceutical Plants And The Beverage And Brewing Industries
General Information
| Item Name | DC Motor |
| Trade Name | Washguard® |
General Features
| Type | DN, SUB-FHP |
| Standards | UL Listed, CSA Certified, USDA Approved |
| Net Weight | 49 lb |
Design & Construction
| Bearing Type | Ball |
| Duty | Continous |
| Enclosure Type | Totally Enclosed Non-Ventilated |
| Frame Type | 31 |
| Insulation Type | Class F |
| KVA Code | K |
| Mounting Type | Square Flange |
| Rotation | Reconnect |
| Shaft Position | Horizontal |
Performance Details
| Speed Rating | 1750 rpm |
| Full Load Efficiency | 74.7% |
| 1/2 Load Efficiency | 80.7% |
| 3/4 Load Efficiency | 82% |
| Torque Rating | 72 lb-ft |
Electrical Properties
| Armature Voltage | 12 VDC |
| Full Load Ampere | 10.5 A |
| Full Load Power Factor | 76% at 60 Hz, 80% at 50 Hz |
| 1/2 Load Power Factor | 56.7% |
| HP Rating | 0.125 HP |
| Service Factor | 1.0 |
| 3/4 Load Power Factor | 70% |
Physical Properties
| Dimensions | 8.1 Inch L x 4.33 Inch W x 4.952 Inch H |
| Frame Size | 31 |
| Number of Poles | 4 |
| Shaft Diameter | 0.5 Inch |
| Shaft Length | 1.5 Inch |
| Weight | 7 lb |
Environmental Condition
| Degree of Protection | IP55 |
| Temperature Rating | 40 °C |
